Tamiya 45069 TBLE-04S Brushless & Brushed Electronic Speed Controller/ESC, NIB
Brand: Tamiya
Type: Electronic (ESC)
Compatible Motor Type: Brushed & Brushless
Custom Bundle: No
Compatible Vehicle Type: Cars & Motorcycles
Compatible Fuel Type: Electric
MPN: 45069
Country/Region of Manufacture: Japan
Compatible Scale: 1:10,1:12,1:14,1:16,1:18
Modified Item: No
TTP Models
Official UK licensed supplier of brand new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.
Any currently available 5, 7 or 8 digit part can be specially ordered, subject to 25% deposit. Please message us with your requirements.

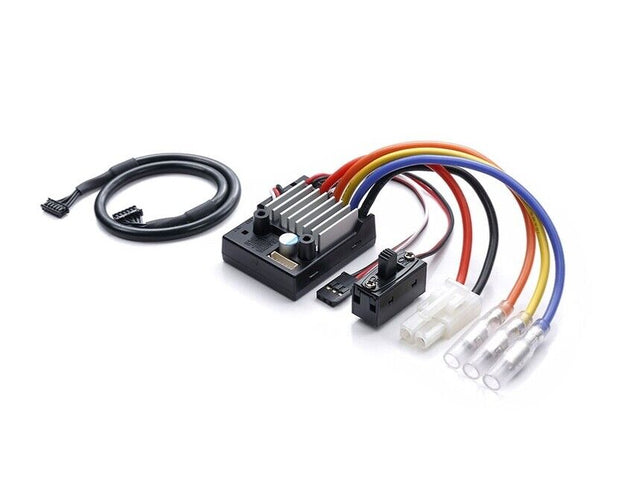

Tamiya TBLE-04S Brushless/Brushed Electronic Speed Controller/ESC, Part No. 45069
This ESC is designed for use with Tamiya Brushless Motors (Sensored) 15.5T and over, (Aftermarket brands 21.5 and over), and also brushed motors 25T and over. High point, neutral brake and brake settings are individually adjustable, while battery cut-off, reverse and motor modes can be selected. Setup is shown by an LED, and the ESC also features two protection functions. ★Maximum continuous current: 75A ★Input voltage: 6.6V - 7.2V ★Dimensions: 41.5mm x 33.4mm x 18mm ★Weight: 47g (including cables)
• Sensored brushless ESC detects motor rotor positions with precision, enabling more efficient power supply and smoother motor response.
• Compatible with Tamiya brushless motors (sensored) of 21.5+ turns, and Tamiya brushed motors 25 turns and over.
• Choose from 10 different settings for both neutral brake and brake, to get your setup just how you want it.
• Features overheating and overload protection functions to help ensure that your equipment avoids damage.
• Weight: 47g (including cables)
• Compatible with Ni-Cd, Ni-MH and Tamiya Li-Fe battery packs.
• Dimensions: 41.5 x 33.4 x 18mm
Includes Sensor Wire/Cable.
LO/HI Battery Cut-off Information:
LOW & HIGH Battery Low Voltage Protection Feature: LOW battery setting cuts off @ 5.6 volts approximately. (Best for Ni-CD, NI-MH and Li-FE battery chemistry) HIGH battery setting cuts off @ 6.2 volts approximately. (Best for other battery chemistries)
Will Fit the Following Cars:
Most Tamiya RC Cars.
