Tamiya 45071 TBLE-05SR Brushless Electronic Speed Controller/ESC, NIB
Sold out
£89.99
TTP Models
Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.
Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

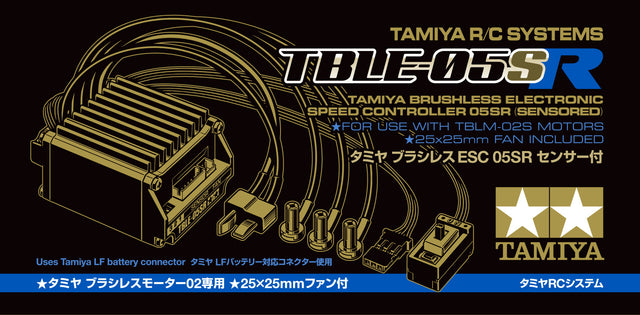

Tamiya TBLE-0SR Brushless Electronic Speed Controller/ESC, Part No. 45071
Description
This ESC is designed only for use with Tamiya Brushless Motors (Sensored). Please kindly note that we plan to discontinue Item 45070 Tamiya Brushless Electronic Speed Controller 04SR (Sensored).
About the Item
-
Dedicated brushless motor connector enables more efficient power supply
-
Motor connectors can be directly connected to motor
-
The FET (Field Effect Transistor) layout features parallelization to reinforce high current resistance. The maximum RPM is the same level as the TBLE-04SR
-
The black-anodized aluminium case works as heat sink to ensure improved heat dissipation, and 25mm square cooling fan can be attached (*the TBLE-04SR had plastic case)
-
Features a receiver switch with screw-attached switch case which protects cables and reinforces case rigidity
-
The TBLE-05SR has a set button on the receiver switch for easier setup changes while the TBLE-04SR had it on the ESC
-
Settings such as battery cut-off, reverse, brake, soft start and neutral brake can be changed by the set button and can be checked by three LED lights and sounds
-
Features overheat and overload protection functions to help ensure that your equipment avoids damage
-
Compatible with Item 54612 Tamiya Brushless Motor 02 (Sensored) 15.5T
-
Includes 270mm sensor cable (the same cable as the one included in Item 45070)
-
Maximum continuous current: 90A
-
Input voltage: 6.6V - 7.2V
-
Weight: 76g (including cables)
-
Dimensions (approximate): 42.5 x 33.5 x 24.5mm (with fan: 42.5 x 33.5 x 33.5mm)
Will Fit the Following Cars:
Most Tamiya RC Cars.
