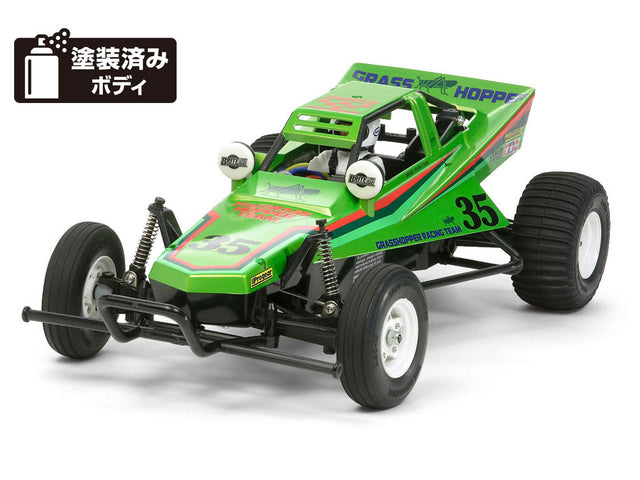

Tamiya The Grasshopper (Candy Green Edition) Assembly Kit, Kit No. 47348
Based on 1-seater buggies seen tearing-up dirt tracks across the U.S. in the 80's, the Grasshopper first made its appearance in R/C stores in 1984. Boasting easy assembly and easy control, the lightweight Grasshopper proved an instant hit as the perfect entry level R/C kit. Also, compatible with a whole range of option parts such as 540 motor and ball bearings, the Grasshopper was an entry level car that could keep up with the owners driving experience.
The perfect combination of simple assembly and tough exterior is what made the Grasshopper so special. Durable plastic body pre-painted with Tamiya's striking TS52 Candy Lime Green is fastened to bathtub resin monocoque chassis by screws, creating a solid frame that can absorb any type of rough handling. Off-road tracks can be tackled with ease thanks to coil spring dampers, and independent swing axle front and rigid axle rear suspension. Diff loaded sealed gearbox keeps out the dirt and stones for smooth driving and cornering. Paddle style rear tires and grooved front tires combine with 3-piece assembly type wheels for excellent grip performance on dirt tracks. Half-body driver figure adds that finishing touch to a fun off-road R/C car.
Kit Specifications:
Scale: 1:10 RC Assembly Kit
Length: 389mm, Width: 223mm, Height: 135mm.
Length: 389mm, Width: 223mm, Height: 135mm.
Pre-painted body with Tamiya's striking TS52 Candy Lime Green
380 type motor (chassis compatible with 540 type motor - sold separately)
Transmission Type: Rear 2 Wheel Drive
Independent swing axle front suspension, rolling rigid axle rear suspension, friction dampers
Sealed rear gearbox to protect diff gear during off-road running
3-piece assembly wheel, straight ribbed racing front tires, paddle rear tires
Front and rear axle compatible with ball bearings (sold separately)
Transmission Type: Rear 2 Wheel Drive
Independent swing axle front suspension, rolling rigid axle rear suspension, friction dampers
Sealed rear gearbox to protect diff gear during off-road running
3-piece assembly wheel, straight ribbed racing front tires, paddle rear tires
Front and rear axle compatible with ball bearings (sold separately)
Includes *ESC and *Motor.
Requires 2-channel radio, steering servo, 7.2-7.4volt battery with compatible charger to complete.

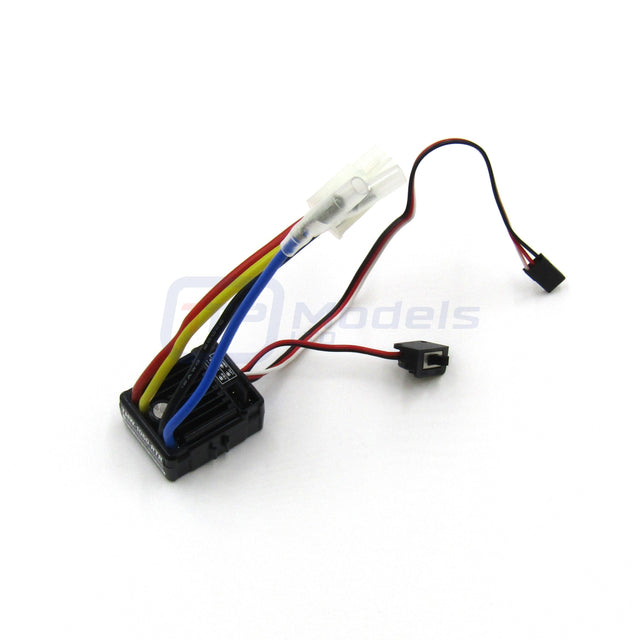

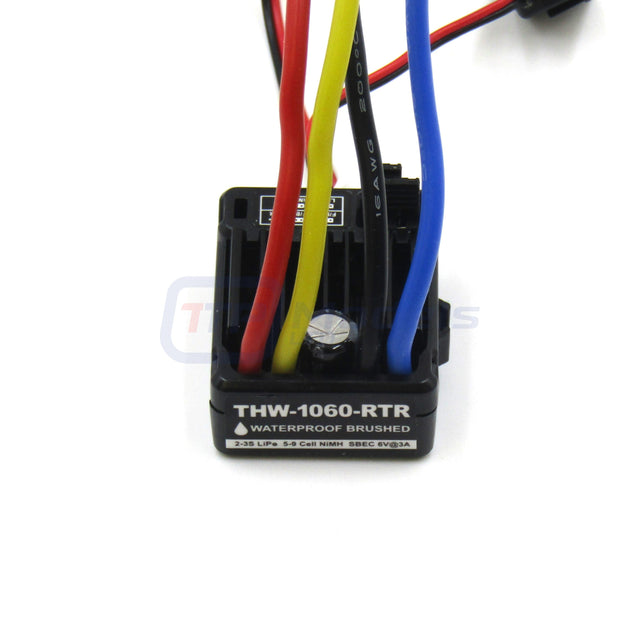

*ESC Specs for this kit are:
Waterproof
60Amp (Forward) / 30Amp (Reverse)
2-3S Lipo or 5-9 Cell NiMH
Low voltage cut-off
Built in BEC
Suitable for on-road, off-road or crawler use
8T Motor Limit With 2S Lipo Or 5-6 Cell NiMH
13T Motor Limit With 3S Lipo or 7-9 Cell NiMH
Standard Size Tamiya Connector Fitted As Shown

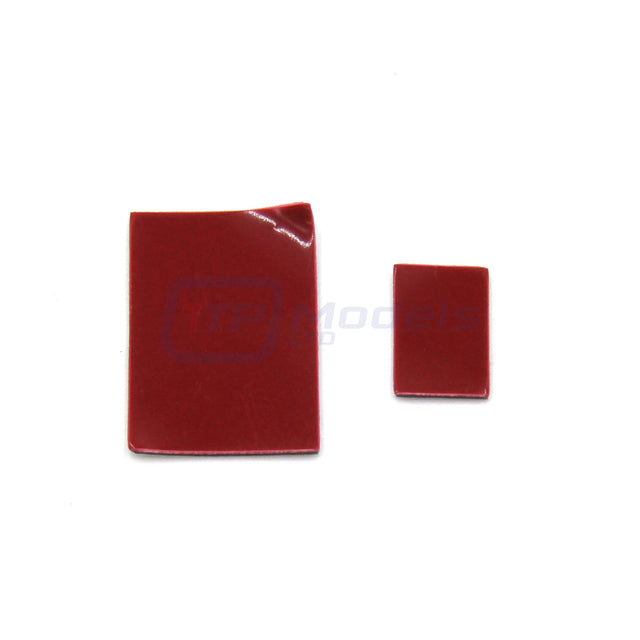

Supplied with double sided tape for the ESC and the on/off switch, you can secure the switch to a suitable position on your chassis.

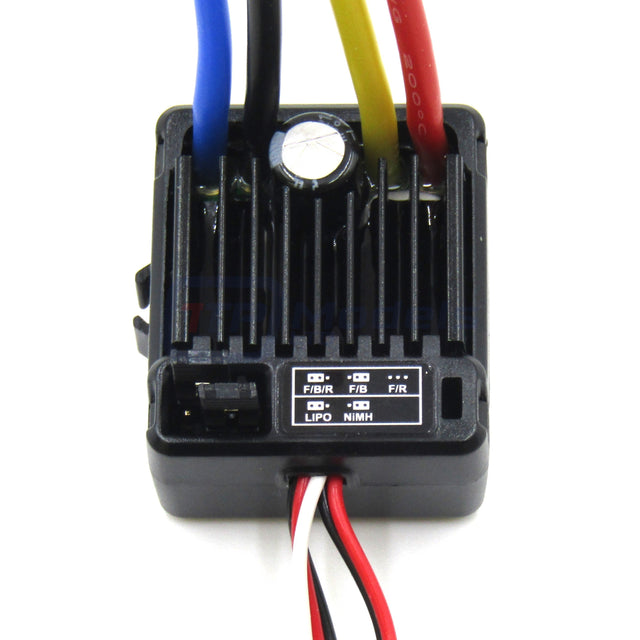

Upon receipt you will need to plug the small jumper plugs into the ESC in the correct positions to suit your battery type (Lipo/NiMH) & use (F/B/R, F/B or F/R) please refer to instructions (bottom right of last picture)
