Tamiya Manta Ray (2018) (DF01/DF-01 Chassis) Assembly Kit, Kit No 47367

Click Here for Manual PDF Download

Run off-road as if you were swimming in the ocean

This is a reprint of Mantaray, an electric radio-controlled 4WD buggy assembly kit that was released in 1990 and became popular as an entry-level model and as a base model for veterans. The style, which is based on the manta ray, which gracefully swims underwater and even makes big jumps above the sea, is still very attractive today. The body, which has an overhang that resembles a large fin, is made of polycarbonate, which is lightweight and strong against shock. The large rear wing, which stabilizes the stance during jumps, is also made of polycarbonate. The wheels have a full-dish design that prevents dirt from sticking, and the tires have a Equipped with a spike type that provides good grip both on and off. Furthermore, you can incorporate optional parts sold separately to further enhance the performance, making it a fun vehicle to drive off-road.

Highly reliable shaft 4WD chassis supports tough driving

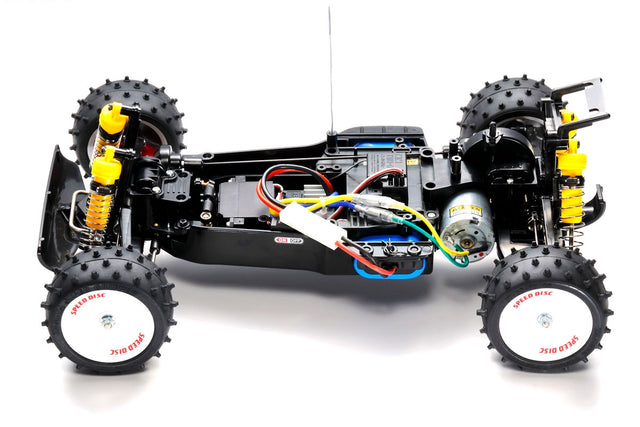

The characteristic honeycomb pattern (honeycomb) ribs are used on the bottom to provide high rigidity, and the RC mechanism and battery can be mounted flat on the bathtub type frame. Equipped with a lower centre of gravity. The suspension is a double wishbone 4-wheel independent type equipped with a CVA oil damper short and has excellent ground contact. The lower arm uses a hollow arm that is lightweight and strong, and its smooth shape makes it difficult to get mud etc. The 4WD system is a highly reliable shaft drive. The compact front and rear sealed gearboxes have built-in differential gears for smooth cornering. In addition, the gearbox has an inspection hatch that allows you to check the gears while in the vehicle, as well as replace all gears, making it highly maintainable. Furthermore, the 3-split steering system provides a sharp steering feel. Toe-in adjustment is also easy using the ball adjuster on the rod end.

Basic specifications:

Overall length 395mm, overall width 250mm, overall height 145mm
Wheelbase 270mm
Vehicle weight approximately 1100g (RC mechanism and battery not included) Tread: 207mm front and rear
Frame: ABS resin bathtub type with honeycomb ribs
Drive System: shaft drive 4WD
Differential gear: 3 bevel differential front and rear
Steering: 3-split tie rod type
Suspension: double wishbone 4 independent wheels
Tire width/diameter: 40/84mm front and rear
Damper: CVA oil damper short
Gear ratio: 8.59:1 (21T pinion gear included in the kit)
540 type motor

Required separately:

2-channel radio
Steering servo
Electronic Speed Controller (ESC)
7.2volt battery & compatible charger
Tamiya PS paint
