Tamiya 47390 Avante 2011 Black Special Assembly Kit, NIB **Pre-Order**

TTP Models

Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.

Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

**Stock availability depends on the UK importers (The Hobby Co.) Stock/Supply, Please message us for an estimated delivery time frame for this kit before placing your order.

Tamiya Avante (2011) Black Special Assembly Kit, Kit No. 47390

Click Here for Manual PDF Download

A fearless black colour with roots in Mini 4WD.

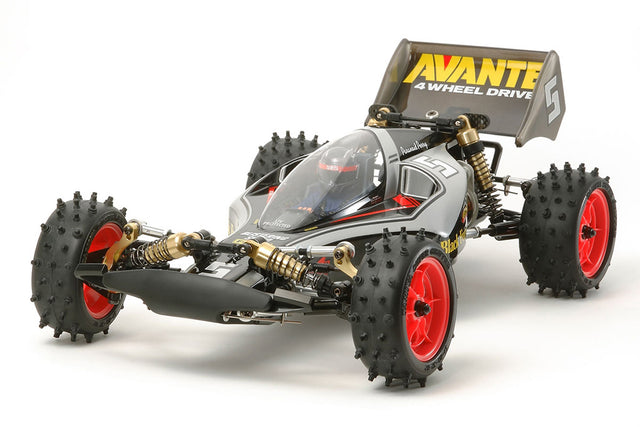

This is an electric radio that is a reprint version of the Avante that was released in 1988, with improvements made while maintaining the basic configuration, and finished in the colouring of the racer Mini 4WD "Avante Black Special." Control buggy assembly kit. In contrast to the fearless black body, the wheels are bright fluorescent pink and lightweight. Equipped with hybrid spike tires with different widths at the front and rear, the feet are sure to attract attention.

Equipped with optional parts to increase the appeal of the chassis

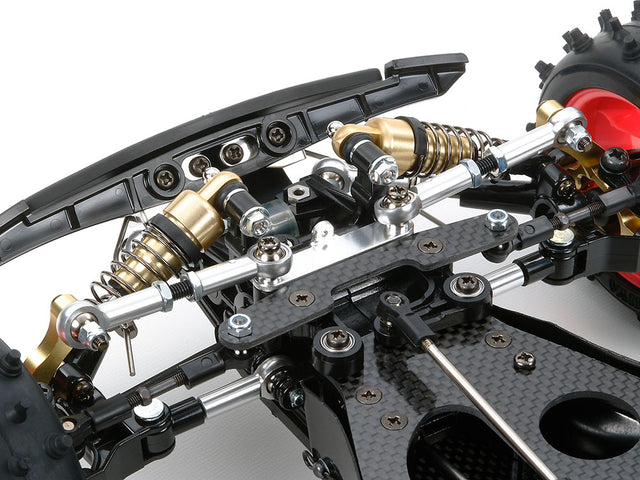

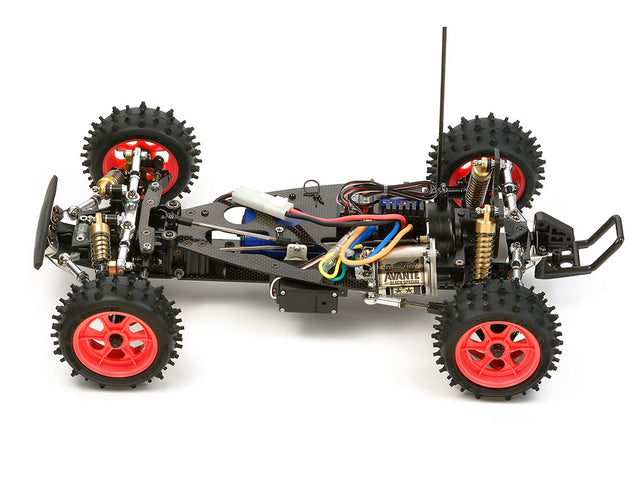

The shaft drive 4WD chassis uses a high-performance mechanism and plenty of high-quality materials, ensuring high strength as both the upper and lower double decks are made of 2mm thick carbon. The front and rear small ball differentials and centre torque splitter provide high traction performance. Equipped with a racing steer that uses a 2mm thick carbon plate to create linear handling. The suspension is a 4-wheel double wishbone type equipped with oil dampers. The suspension arm, which uses a ball end on a metal screw shaft, is highly accurate and its length can be adjusted. Additionally, the rear damper stay is made of 3.5mm thick carbon to ensure high strength. The front knuckle is made from machined aluminium with increased strength while inheriting the original shape. The radius arm protector that protects the arm by absorbing sudden shocks, which is a feature of Avante, remains intact. Furthermore, the full bearing specification is equipped with a total of 26 ball bearings, and drive loss has been thoroughly suppressed.

Basic specifications:

Overall length 420mm, overall width 240mm, overall height 140mm
Wheelbase 260mm
Tread Front and rear 200mm

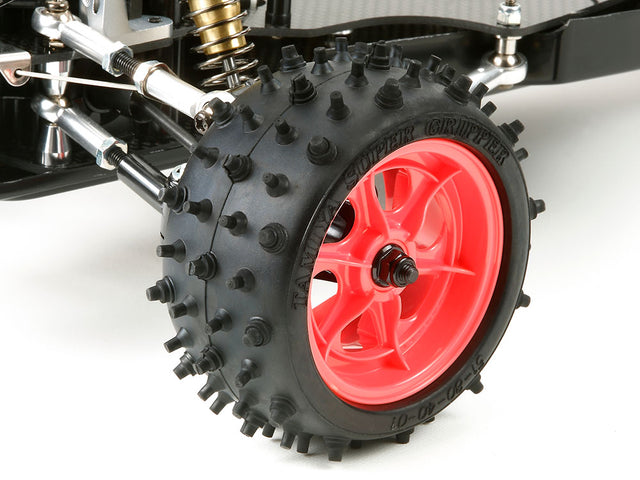

Tire width/diameter Front: 32/88mm, rear: 40/88mm
Frame: 2mm thick carbon double deck
Drive system: Vertical motor/shaft drive full-time 4WD
Differential gear: front and rear ball differential, centre: torque splitter
Steering: 3-split tie rod type using 2mm thick carbon plate
Suspension: ball connect type 4-wheel double wishbone
Damper: front and rear Oil damper with metal cylinder
Gear ratio: 8.33:1

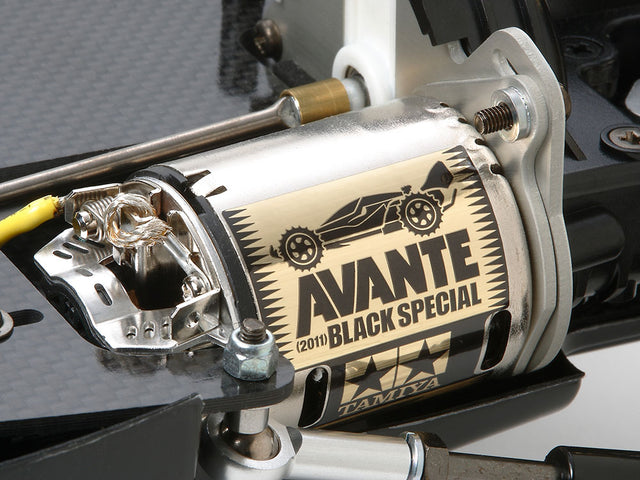

Motor: 540 type (25T)

Required Separately:

2-channel radio
Steering servo
ESC (Electronic Speed Controller)
7.2volt battery & compatible charger
Tamiya PS paint

Postage:

All of our kits come with FREE Tracked 24 hour delivery, with the option to upgrade to a Tracked 24 with signature (requiring to be signed for at point of delivery) - Any kit purchased under the *pre-order* title will be subject to delivery times from the UK importer into us, once received we will then post on to the customer - if you have any questions regarding delivery time, please contact us prior to placing your order.
