Tamiya 47414 Audi A4 Quattro Touring Assembly Kit, (TT01E), NIB **Pre-Order**

TTP Models

Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.

Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

**Stock availability depends on the UK importers (The Hobby Co.) Stock/Supply, Please message us for an estimated delivery time frame for this kit before placing your order.

Tamiya Audi A4 Quattro Touring (TT-01/TT01 Type-E Chassis), Kit No. 47414

Click Here for Manual PDF Download

Click Here for Body Set PDF Download

Click Here for Optional TT01E/TT-01E Parts Sheet

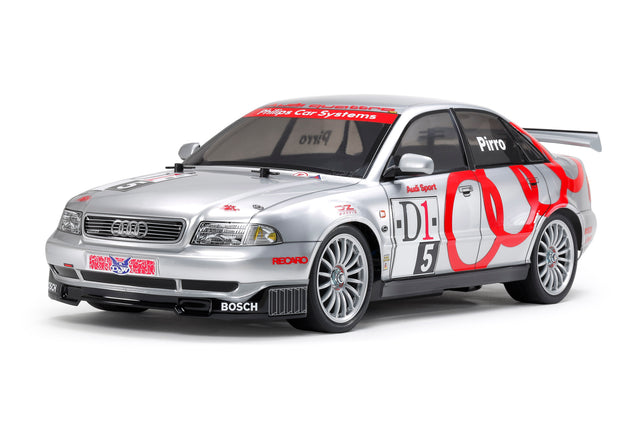

This Tamiya R/C car recreates a classic Audi A4 Quattro Touring car as it raced in 1997

In the late 1990s, manufacturer-backed teams would come to dominate touring car series around the world. One of the most pre-eminent was Audi, which spared no expense in its pursuit of the top of the podium. Using its base A4 quattro as a platform, Audi developed the car significantly and turned it into a race winner. In addition, Audi sought the best drivers from around the world in to do their creation justice.

Tamiya recreates this racer on top of the TT-01 E chassis, which is ideal for beginner kit builders. The original release of this Audi came on the Tamiya TA-03 machine.

Features a shaft drive 4WD TT-01 TYPE-E chassis that is fun to improve performance

The chassis is a vertical motor shaft drive 4WD TT-01 TYPE-E that is easy to assemble and has excellent maintainability. The bathtub-type main frame is equipped with a glass fibre-reinforced nylon resin upper deck and gear cover to ensure high chassis rigidity. The steering system is a three-part type with little play and smooth movement. Low centre of gravity and good balance. Combined with the body configuration, double wishbone 4-wheel independent suspension, and front and rear differential gears, it exhibits controllable handling characteristics. In addition, the plated wheels, which have realistically reproduced bolt shapes, have a 70mm outer diameter. Equipped with radial tires. Both are specially designed for track racing, and the tall tires produce mild cornering performance. Of course, you can also look forward to improving the performance by incorporating a wide variety of optional parts sold separately. 70mm-diameter radial tires are paired with metal plated wheels developed just for this model; the high sidewalls make for forgiving turns.

Basic specifications

Overall length 454mm, overall width 186mm, overall height 144mm
Wheelbase 257mm
Tire width/diameter: 27/67mm front and rear
Frame: bathtub type
Drive system: vertical motor shaft drive full-time 4WD
Differential gear: 3 front and rear Bevel
Steering: 3-split tie rod type
Suspension: double wishbone 4 independent wheels
Damper: friction both front and rear
Gear ratio: 8.35:1
Motor: 540 type

ESC: Tamiya THW-1060 ESC

Required Separately

2-channel radio
Steering servo
7.2volt battery & compatible charger
Tamiya PS paint

Postage:

All of our kits come with FREE Tracked 24 hour delivery, with the option to upgrade to a Tracked 24 with signature (requiring to be signed for at point of delivery) - Any kit purchased under the *pre-order* title will be subject to delivery times from the UK importer into us, once received we will then post on to the customer - if you have any questions regarding delivery time, please contact us prior to placing your order.
