Tamiya 47446 Plasma Edge 2 Gun Metal Assembly Kit, (TT02B/TT-02B), NIB **Pre-Order**

TTP Models

Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.

Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

**Stock availability depends on the UK importers (The Hobby Co.) Stock/Supply, Please message us for an estimated delivery time frame for this kit before placing your order.

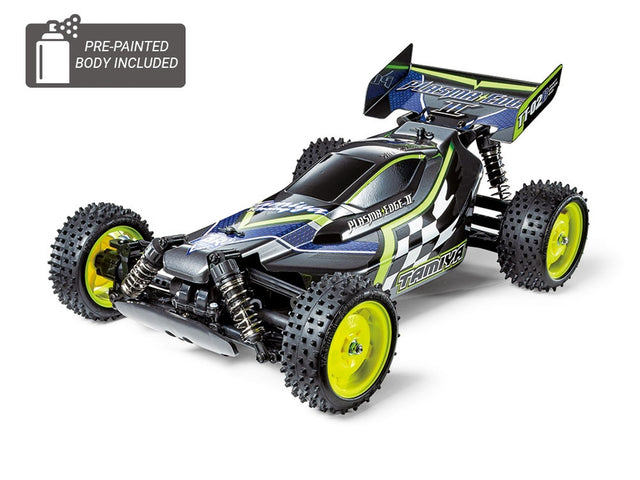

Tamiya Plasma Edge 2 Gun Metal (TT02B/TT-02B Chassis) Assembly Kit, Kit No. 47446

Click Here for Manual PDF Download

Click Here for Optional TT02B/TT-02B Parts Sheet

The fearless gunmetal body is completed just by pasting the sticker!

This is an assembly kit for an electric radio-controlled buggy that uses shaft drive 4WD.Plasma Edge II Gunmetal has a wedge-shaped polycarbonate body and large rear wing that exerts downforce throughout the body, painted with gunmetal and pre-cut. . A fearless body can be completed just by pasting stickers with chequered flags and V-shaped graphics on the nose. Furthermore, the black-coloured CVA damper tightens the underfoot, and the bright fluorescent yellow star dish wheels are also noteworthy. The chassis uses the shaft drive 4WD TT-02B, which is easy to assemble, and has excellent controllability and ability to travel on rough roads.

Shaft drive 4WD with excellent manoeuvrability on rough roads, adopts TT-02B chassis

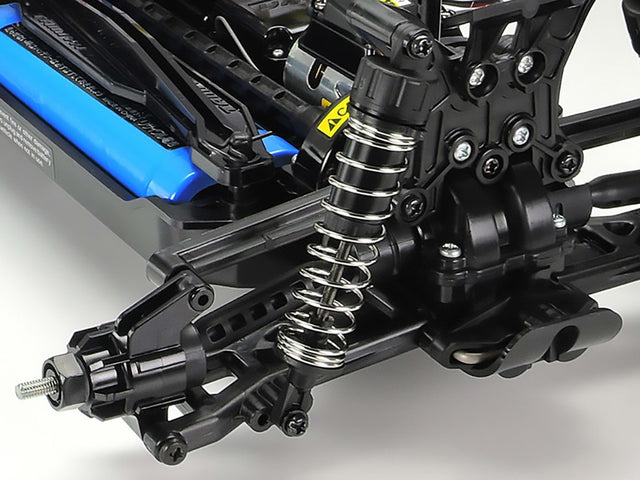

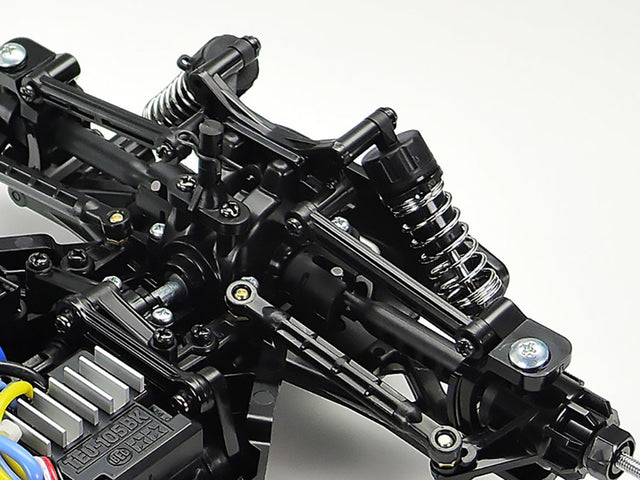

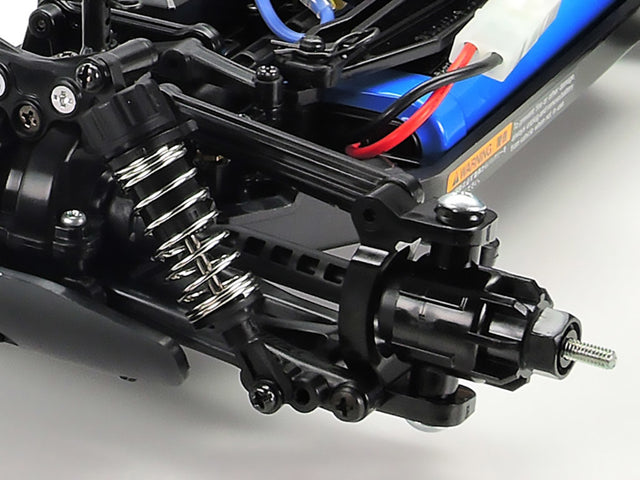

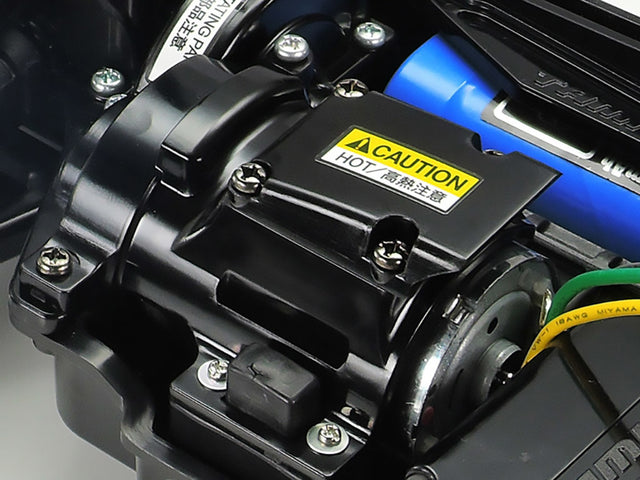

The TT-02B chassis for basic buggy uses a bathtub type main frame that exerts a skid effect with a boat-shaped bottom. The suspension is Four independent double wishbone wheels with long arms equipped with black-coloured CVA oil dampers. In addition to excellent road holding, it has an easy-to-assemble configuration with common suspension arms and uprights on the left and right sides. Front and rear closed gear cases are fitted smoothly. Built-in 4-bevel type resin differential gear. The upper part of the gear case can be removed by loosening a few screws, making it easy to maintain. Also, if you use 3 types of pinion gears (sold separately), you can use 4 types in total with the standard pinion gear. A variety of gear ratios can be selected, and settings can be made to match the motor and road conditions. Furthermore, it is equipped with a receiver case and motor cover to prevent dust, which are essential for off-road driving, to increase driving reliability.

Basic specifications

Overall length 370mm, overall width 250mm, overall height 160mm
Wheelbase 266mm
Tread: front 217mm, rear 208mm
Frame: bathtub type
Drive system: shaft drive 4WD
Differential gear: 4 bevel differential front and rear
Steering: 3-split tie rod type
Suspension: double wishbone 4-wheel independent
:Tire width/diameter: front 32/82mm, rear 41/82mm (square spike)
Damper: CVA oil damper
Gear ratio: 10.71:1 (pinion gear included in kit)
Motor: 540 type

ESC: Tamiya THW-1060 ESC

Required Separately

2-channel radio
Steering servo
7.2volt battery & compatible charger
Tamiya PS paint

Postage:

All of our kits come with FREE Tracked 24 hour delivery, with the option to upgrade to a Tracked 24 with signature (requiring to be signed for at point of delivery) - Any kit purchased under the *pre-order* title will be subject to delivery times from the UK importer into us, once received we will then post on to the customer - if you have any questions regarding delivery time, please contact us prior to placing your order.
