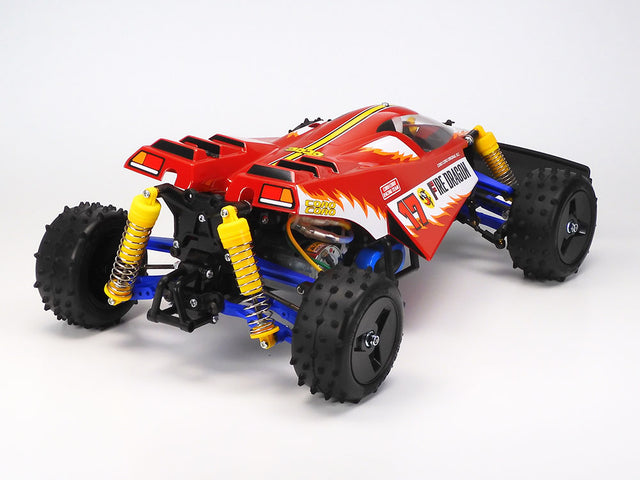

Tamiya 47457 Fire Dragon (2020) (Factory Pre-Painted Red Body) Assembly Kit, NIB **Pre-Order**

TTP Models

Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.

Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

**Stock availability depends on the UK importers (The Hobby Co.) Stock/Supply, Please message us for an estimated delivery time frame for this kit before placing your order.

Tamiya Fire Dragon (2020) (Factory Pew-Cut & Pre-Painted Red Body) Assembly Kit, Kit No. 47457

Click Here for Manual PDF Download

The red body is full of fighting spirit and is hot!

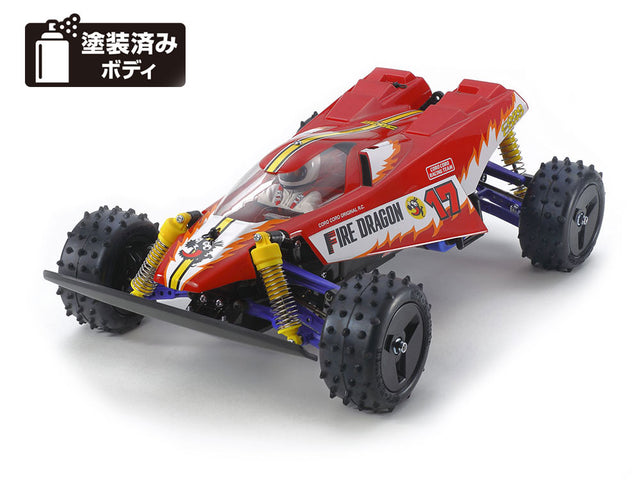

RC manga ``Radio Control Boy'' serialized in Shogakukan's ``CoroCoro Comic'' that started in 1983. We have reproduced the ``Fire Dragon'', which was released in 1989 as an electric radio-controlled 4WD buggy that was very successful as the main character machine. The smooth one-motion polycarbonate body is painted red and pre-cut. The body is completed just by pasting the stickers. In addition, a driver figure is included in the cockpit to enhance the realism, so feel free to paint it as you like. The shaft drive 4WD chassis has a built-in differential gear in the front and rear sealed gearboxes for smooth cornering. The suspension consists of 4 independent double wishbone wheels with CVA oil dampers. Equipped with spiked tires front and rear that provide sufficient grip, you can enjoy nimble driving from on-road to off-road.

Shaft drive 4WD chassis that is easy to assemble and maintain

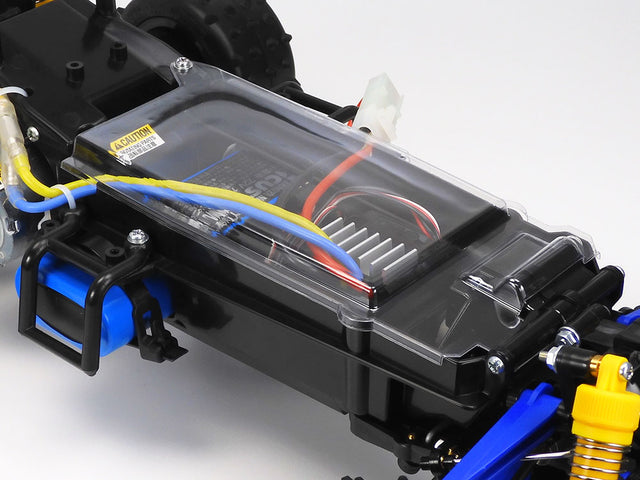

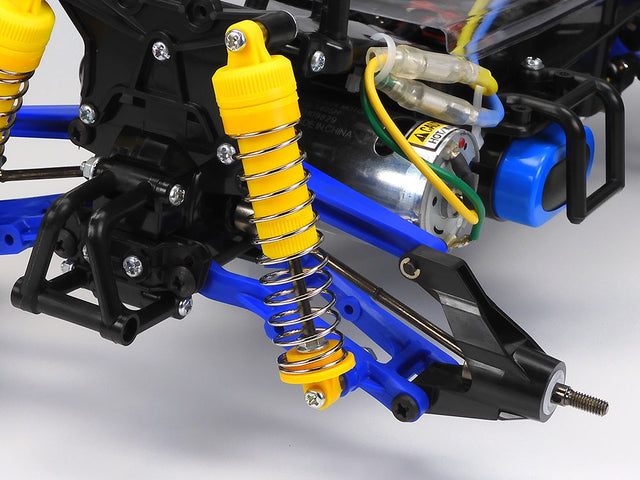

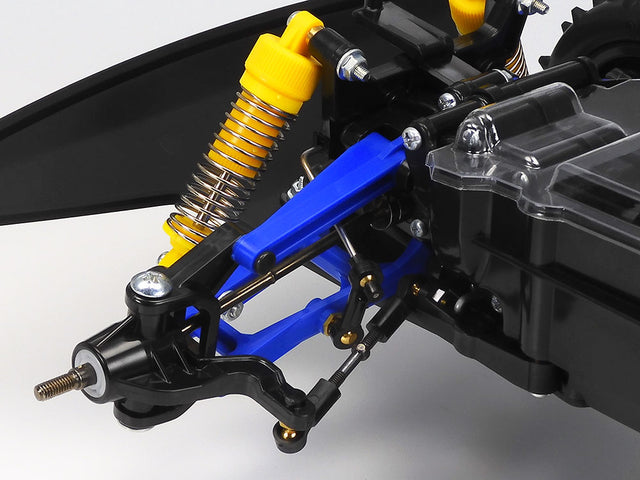

The chassis is a shaft drive 4WD that mounts the motor mid-ship and uses a shaft for power transmission. The RC mechanism is built into the lightweight and strong bathtub frame, and the front and rear gearboxes attached to the suspension are docked for ease of maintenance. The suspension has a simple configuration of upper I-arm and lower H-arm, but it has 4 independent double wishbone wheels with excellent ground contact. In addition to four CVA oil dampers, a stabilizer is installed on the front to achieve supple driving. In addition, a unit type differential gear is built into the front and rear sealed gear cases. Another key point is that it uses an aluminium motor mount that has high precision, rigidity, and excellent heat dissipation. Furthermore, the gear case has been made compact to ensure road clearance. Combined with 4WD, it provides excellent drivability on rough roads.

Basic specifications

Overall length 390mm, overall width 240mm, overall height 139mm
Wheelbase: 260mm, Minimum Ground Clearance: 23,,
Tread: F203mm R194mm
Tire width/diameter: Front & Rear 38/83mm
Frame: ABS resin bathtub
Drive system: shaft drive 4WD
Differential gear: front and rear 3 bevel differential
Steering: 3-split tie rod type
Suspension: 4 independent double wishbone wheels
Gear ratio: 7:68:1
Motor: RS540 type

ESC: Tamiya THW-1060 ESC

Required separately:

2-channel radio
Steering servo
7.2volt battery & compatible charger
