Tamiya 47459 Saint Dragon (2021) (Factory Pre-Painted White Body) Assembly Kit, NIB

TTP Models

Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.

Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

**Stock availability depends on the UK importers (The Hobby Co.) Stock/Supply, Please message us for an estimated delivery time frame for this kit before placing your order.

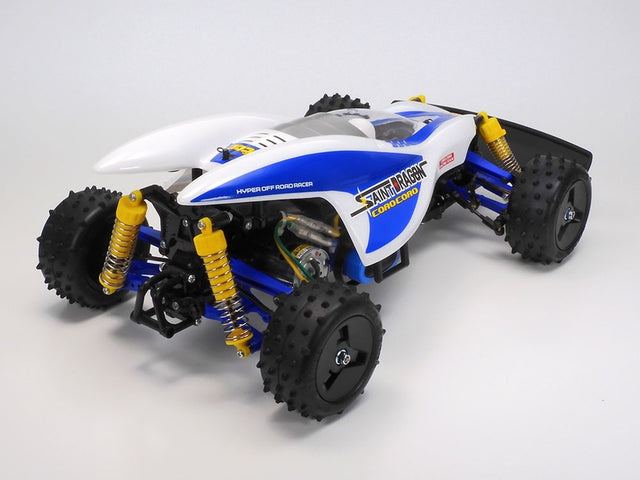

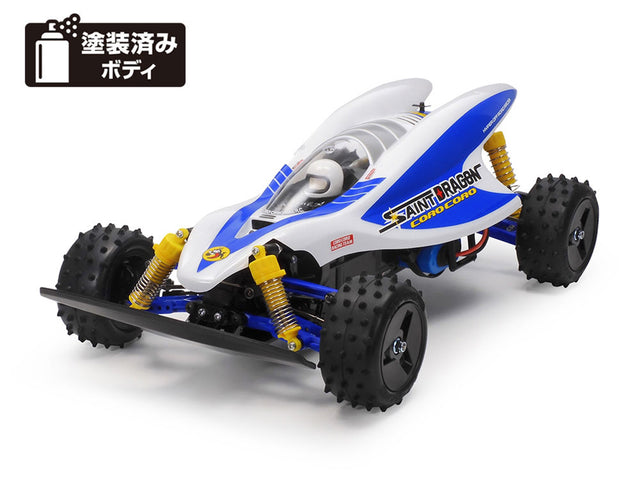

Tamiya Saint Dragon (2021) (Factory Pre-Cut & Pre-Painted White Body) Assembly Kit, Kit No. 47459

Click Here for Manual PDF Download

A 4WD Seiryu with a white/blue body

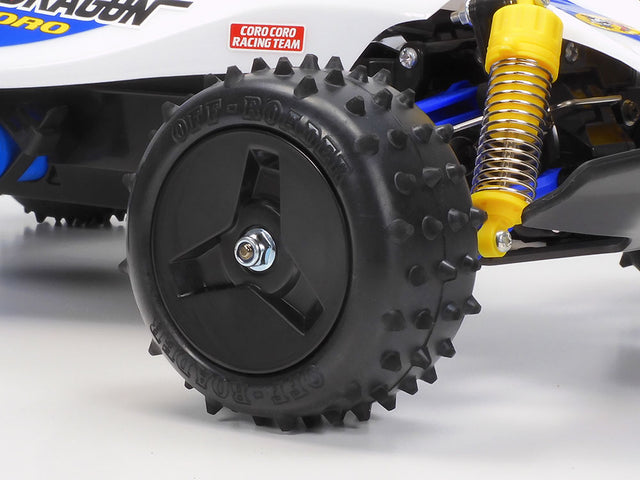

RC manga ``Radio Control Boy'' serialized in Shogakukan's ``CoroCoro Comic'' that started in 1983. This is an electric radio control car assembly kit of ``Saint Dragon'', which was the favourite car of the main character ``Shago''. The highly maintainable bathtub frame uses a shaft drive 4WD chassis equipped with double wishbone type 4-wheel independent suspension with CVA oil dampers. Equipped with hollow rubber spike tires with sufficient grip, it can be ridden anywhere from on-road to off-road. The body has a smooth one-motion form that resembles a dragon's head and is made of polycarbonate. It is painted white and has been cut, so you can complete the body just by pasting the stickers.

Shaft drive 4WD chassis that is easy to assemble and maintain

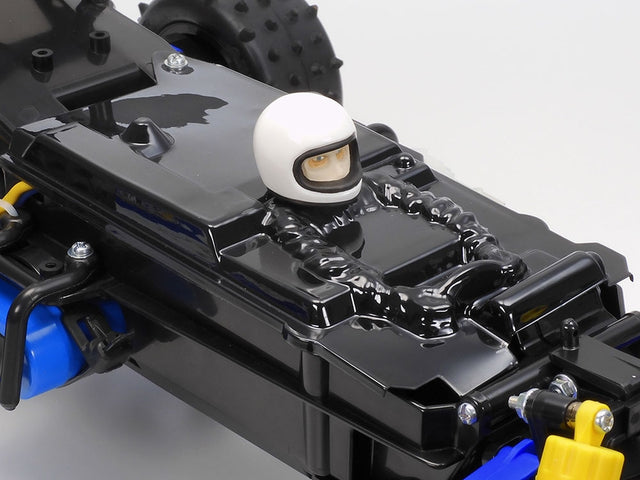

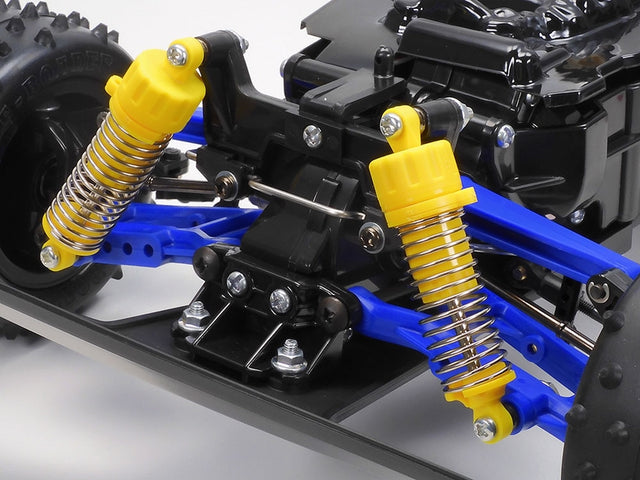

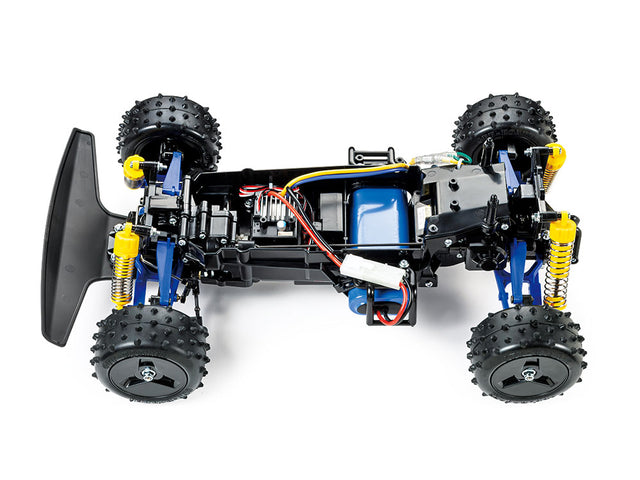

The chassis is a shaft drive 4WD that mounts the motor mid-ship and uses a shaft for power transmission. The RC mechanism is built into the lightweight and strong bathtub frame, and the front and rear gearboxes attached to the suspension are docked for ease of maintenance. The suspension has a simple configuration of upper I-arm and lower H-arm, but it has 4 independent double wishbone wheels with excellent ground contact. In addition to four CVA oil dampers, a stabilizer is installed on the front to achieve supple driving. In addition, a unit type differential gear is built into the front and rear sealed gear cases. Another key point is that it uses an aluminium motor mount that has high precision, rigidity, and excellent heat dissipation. Furthermore, the gear case has been made compact to ensure road clearance. Combined with 4WD, it provides excellent drivability on rough roads.

Basic specifications:

Overall length 390mm, overall width 240mm, overall height 135mm
Wheelbase: 260mm, Minimum Ground Clearance: 23mm
Tread: F203mm R194mm
Tire width/diameter: Front & Rear 38/83mm
Frame: ABS resin bathtub
Drive system: shaft drive 4WD
Differential gear: front and rear 3 bevel differential
Steering: 3-split tie rod type
Suspension: 4 independent double wishbone wheels
Gear ratio: 7:68:1
Motor: RS540 type

ESC: Carson Dragster 70A Waterproof ESC.

Required separately:

2-channel radio
Steering servo
7.2volt battery & compatible charger

Postage:

All of our kits come with FREE Tracked 24 hour delivery, with the option to upgrade to a Tracked 24 with signature (requiring to be signed for at point of delivery) - Any kit purchased under the *pre-order* title will be subject to delivery times from the UK importer into us, once received we will then post on to the customer - if you have any questions regarding delivery time, please contact us prior to placing your order.
