Tamiya 47520 M07R/M-07R Concept Chassis Assembly Kit, NIB
Sold out
£219.00
£255.00
TTP Models
Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.
Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

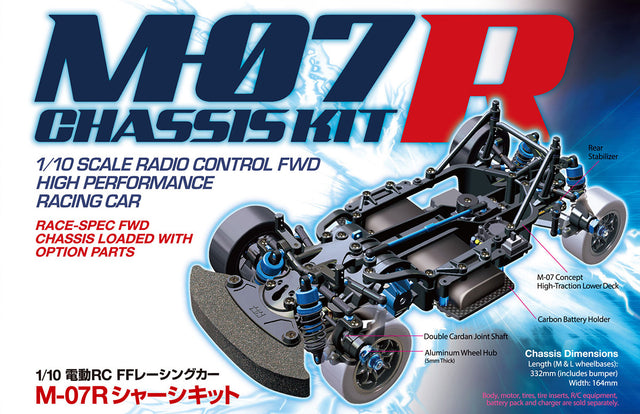

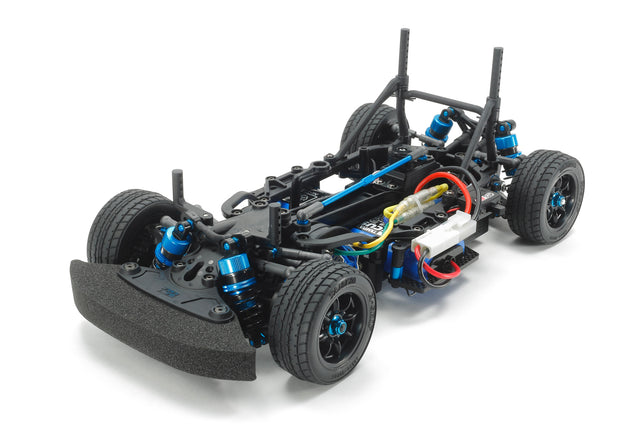

Tamiya M07R/M-07R Concept Chassis Kit, Kit No. 47520
Description:
This R/C FWD chassis assembly kit takes the cutting-edge M-07 Concept chassis and pairs it with a range of Tamiya Racing Factory (TRF) hand-picked option parts for a racing setup. It features a high-traction lower deck for a ground-hugging drive, plus carbon fibre battery holders, TRF special dampers, reinforced suspension arms and uprights, as well as rear stabilizer. The result is super grip, even on low-traction surfaces. An efficient drivetrain includes oil-filled gear differentials, full ball bearings, double cardan drive shafts, aluminium cup joints, hard-coated aluminium pinion gear and more.
Featured Components
-
Carbon fibre battery holder (dedicated component)
-
Rear stabilizer
-
TRF special dampers (hard black coating)
-
Double-cardan drive shafts (33mm)
-
High-traction lower deck
-
Reinforced C parts (uprights)
-
Reinforced D parts (suspension arms)
-
3x106mm aluminium turnbuckle shafts
-
Aluminium joint cups
-
Clamp-type aluminium wheel hubs (5mm)
-
2.6mm diameter titanium-coated shafts
-
46mm titanium-coated shafts
-
06 module aluminium pinion gear (20T)
-
Full ball bearings
-
Hi-torque servo saver (black)
Specifications
-
Scale is 1:10
-
Length: 332mm (including bumper)
-
Width: 164mm
-
Wheelbase: 225mm or 239mm (Selectable)
-
Monocoque Frame
-
Front-Midship Motor, Front-Wheel Drive
-
Oil-Filled Gear Differential
-
3-Piece Steering Tie-Rod
-
4-Wheel Independent Double Wishbone Suspension
-
TRF Special Dampers
-
Gear Ratio = 5.78:1 using included 20T pinion gear (7.22:1 - 4.81:1 available with separately sold pinion gears)
-
Requires an Electronic Speed Controller (sold separately)
Separately Required Items
-
Compatible body
-
2-Channel R/C System w/ESC
-
R6/AA/UM3 batteries for transmitter
-
Type 540 Motor
-
Battery Pack & Charger
Postage:
All of our kits come with FREE Tracked 24 hour delivery, with the option to upgrade to a Tracked 24 with signature (requiring to be signed for at point of delivery) - Any kit purchased under the *pre-order* title will be subject to delivery times from the UK importer into us, once received we will then post on to the customer - if you have any questions regarding delivery time, please contact us prior to placing your order.
