by Tamiya

Tamiya 54886 TRF419 Suspension Upgrade Set, (TRF417/TA07/TB05) NIP

£79.99
Tax included. Shipping calculated at checkout.
ISBN4950344548866
Notify me when available

TTP Models

Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.

Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

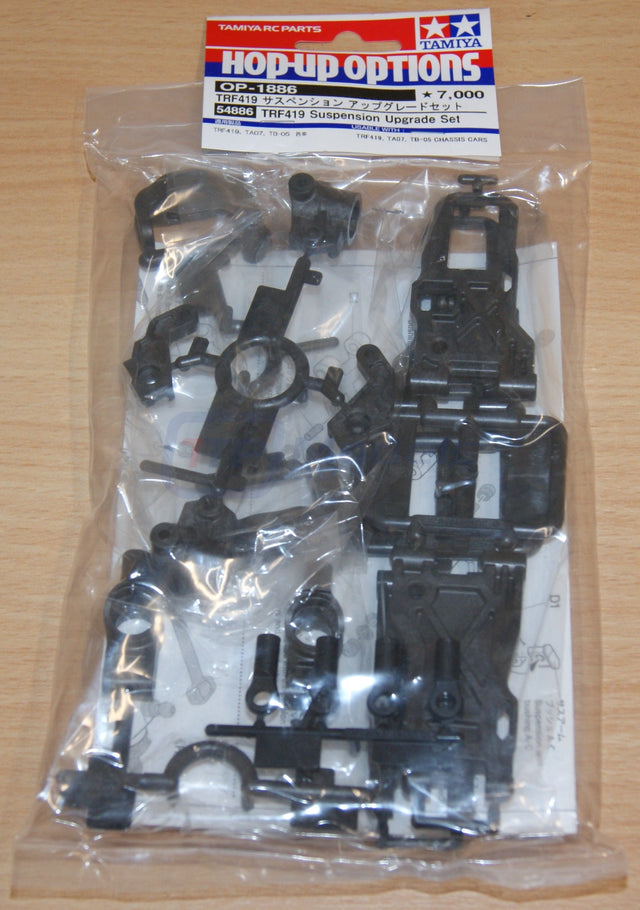

Tamiya TRF419 Suspension Upgrade Set, Part No's. 54886 (OP-1886)

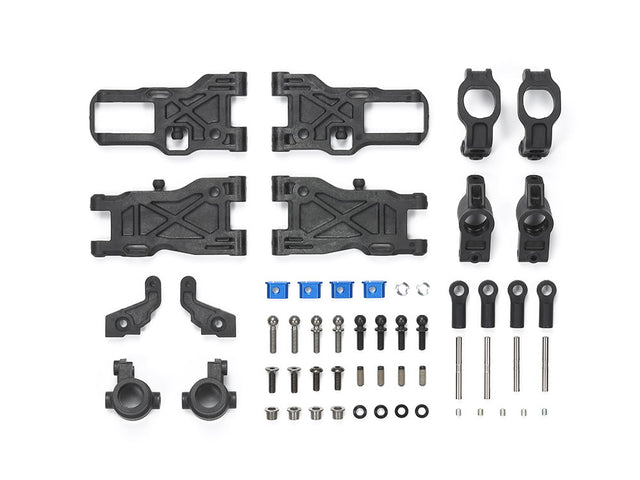

This set overhauls your touring car suspension with brand new parts, designed to further hone its racing prowess. It includes, front uprights, front caster blocks, front and rear suspension arms, and rear uprights.

• C Parts (Front Uprights) x1
• D Parts (Suspension Arms) x2
• E Parts (Rear Uprights) x1
• F Parts (4° Hub Carriers) x1
• Small parts for attachment included.
• See below for detailed descriptions of the major components.
• Compatible with TRF419, TA07 and TB-05 PRO chassis cars.
• NOTE: Rear offset will change. Use spacers to adjust accordingly.

Front Uprights: These are now a two-part design, with separate arm and bearing housing components, and now fitting bigger 3mm diameter suspension shafts for more durability.
Hub Carriers: These feature a revised design more resistant to shocks and crashes. Upper and lower flanged tubes are now identical. A bigger suspension shaft (3mm) offers improved durability.
Suspension Arms: A tweaked design brings improved rigidity. Damper attachment is done via aluminium inserts into the arm, of which two different types are included to allow three different lever ratios (ratio of tire movement to suspension movement). A bigger suspension shaft (3mm) offers improved durability. Rear arms have a 3mm offset and so will require spacers for adjustment to your chassis wheelbase.
Rear Uprights: A bigger suspension shaft (3mm) offers improved durability. Updated bearing position leads to smoother motion.

Will Fit the Following Chassis:

TRF419, TRF419X, TRF419XR, TRF420, TRF420X, TB05 PRO,
TBEvo.6, TBEvo.6 MS, TBEvo.7, TA07, TA07MS, TA07MSX, etc.
