Tamiya 57409 Lunch Box Mini Assembly Kit (SW-01/SW01), NIB **Pre-Order**

Sale
£76.49 £84.99
Tax included. Shipping calculated at checkout.
ISBN4950344574094
Notify me when available

TTP Models

Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.

Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

**Stock availability depends on the UK importers (The Hobby Co.) Stock/Supply, Please message us for an estimated delivery time frame for this kit before placing your order.

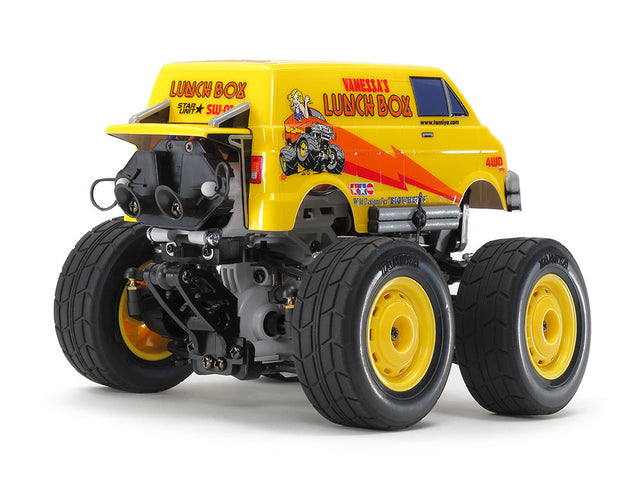

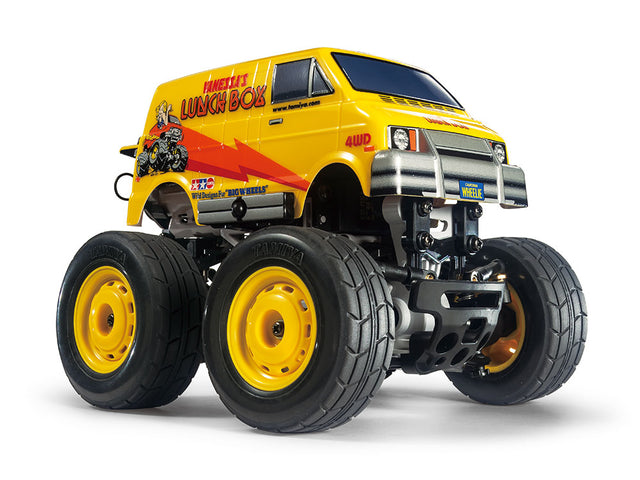

Tamiya 1/24th Scale Lunch Box Mini Assembly Kit SW-01/SW01 Chassis), Kit No. 57409

Click Here for Manual PDF Download

Click Here for Optional SW01/SW-01 Parts Sheet

VIDEO: Click here to see the model in action

Cute size 4WD car that can do wheelies.

This is a 1/24 scale electric radio control car assembly kit that is a deformed version of the lunch box familiar from Mini 4WD and RC. The compact size allows you to play anywhere, indoors or outdoors. The body is made of lightweight and shock-resistant polycarbonate. Another highlight is that it is painted yellow, and the wheel arches have been cut and holes have been drilled for body mounts. The gear drive 4WD chassis combines front and rear differential gears and a short wheelbase to achieve outstanding turning performance. Additionally, you can perform a wheelie by simply squeezing the throttle lever on the transmitter. This RC car is full of fun and cuteness that will make you smile with its funky movements.

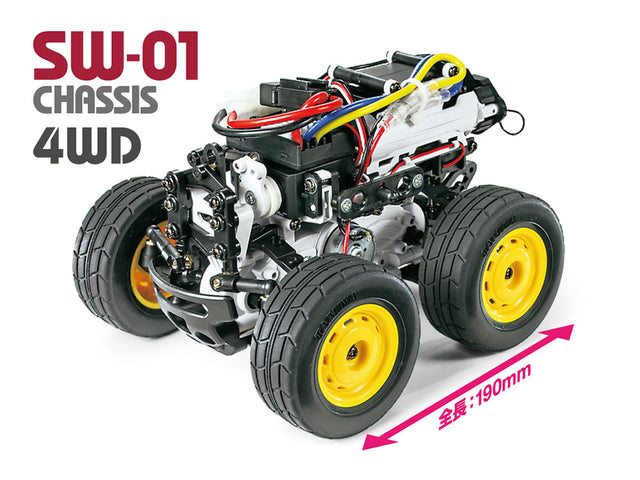

Gear drive 4WD packed with fun driving, adopts SW-01 chassis

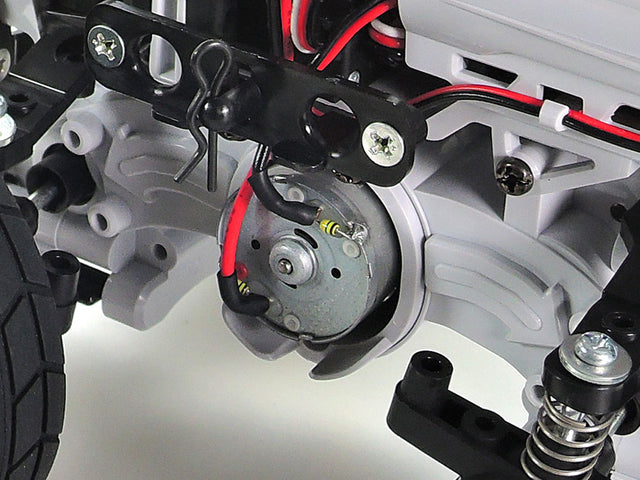

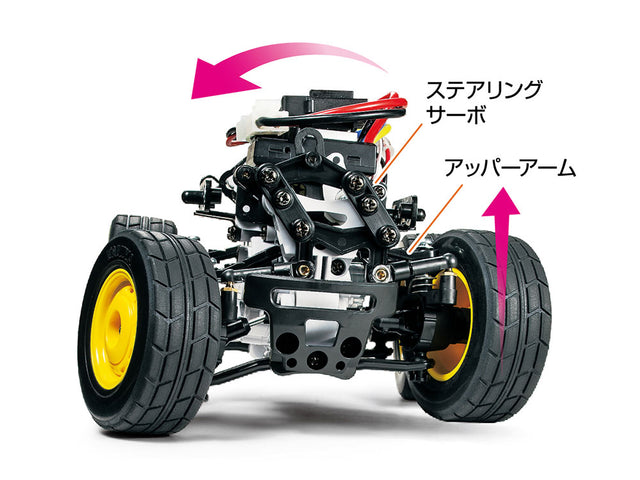

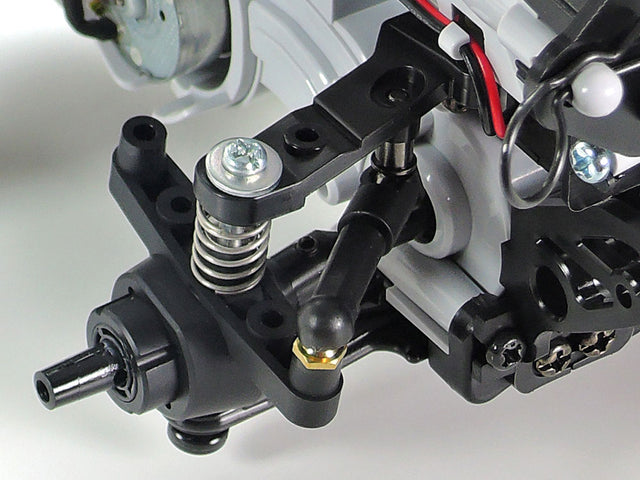

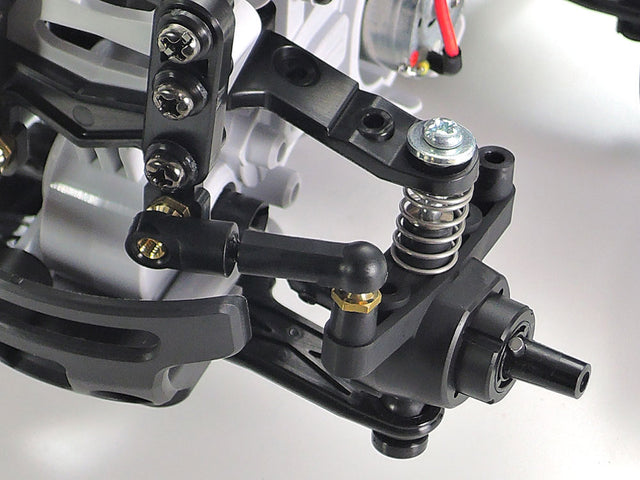

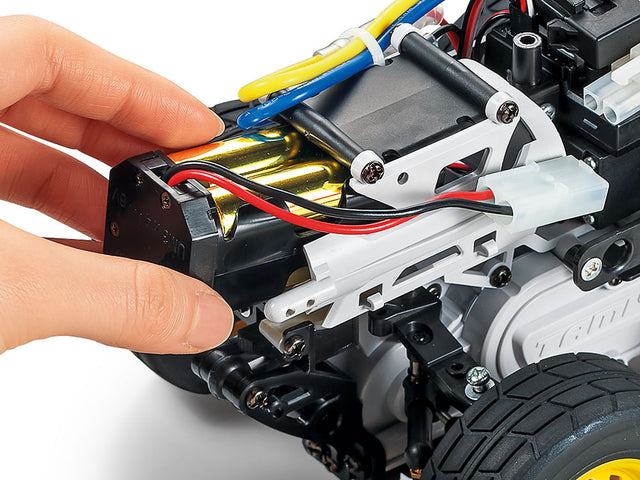

This is a 4WD chassis packed with fun in a compact body that is approximately A5 size with a total length of 190 mm and a total width of 150 mm. A 370 motor is set in the centre of the slim and strong monocoque frame, and gear drive 4WD is used to transmit power back and forth using gears. Combined with large tires with a diameter of 70mm, it provides powerful driving performance. In addition, the heavy battery is mounted at the rear of the top of the vehicle. You can perform a wheelie just by starting suddenly. The suspension is a 4-wheel independent strut type suspension equipped with coil springs. Adopts a mechanism that connects the suspension upper with the left and right arms and works in conjunction with the steering. It suppresses roll during cornering and, combined with the effectiveness of the front and rear differential gears, provides excellent turning ability. No matter where you run, from indoors to outdoors.

Basic Specifications:

Overall length 190mm, overall width 150mm, overall height 140mm
Wheelbase 92mm
Tread: front and rear 122mm
Tire width/diameter: front and rear 28mm/70mm
Frame: monocoque type
Drive system: gear drive 4WD
Differential gear system: Planetary type
Steering tie rod: 3-split
Suspension: MacPherson strut type both front and rear
Gear ratio: 21.88:1
Motor: 370 type

Required separately:

Fine spec 2.4G electric RC drive set
4 Tamiya AA batteries for running, or Tamiya LF-1100 6.6V racing pack (M size)
ESC (Electronic Speed Controller)
