Tamiya 58370 Dark Impact (DF-03/DF03) Assembly Kit, NIB *Pre-Order*

TTP Models

Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.

Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

**Stock availability depends on the UK importers (The Hobby Co.) Stock/Supply, Please message us for an estimated delivery time frame for this kit before placing your order.

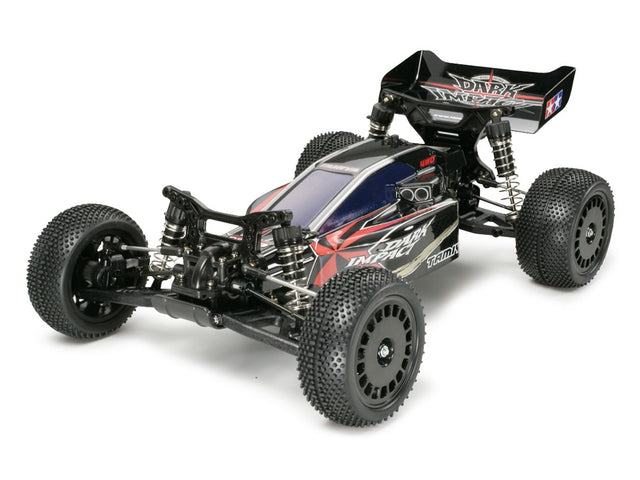

Tamiya Dark Impact (DF-03/DF03) Assembly Kit, Kit No. 58370

Click Here for Manual PDF Download

Click Here for Optional DF03/DF-03 Parts Sheet

Born and raised on circuits

Entrusted to the hands of works drivers from the prototype stage, it was developed based on data accumulated from many actual races. This is an assembly kit for an electric radio-controlled buggy created for off-road racing. Tamiya While inheriting the traditional shaft drive 4WD, the development concept was to improve the efficiency of the drive system, optimize the weight balance, and ensure sufficient suspension stroke. In addition, the compact chassis has a slim and firm body. In contrast, the rear wing is a large type that is integrated up to the end plate, creating downforce and stabilizing the rear. The tires are equipped with dual block tires K that provide good grip on all road surface

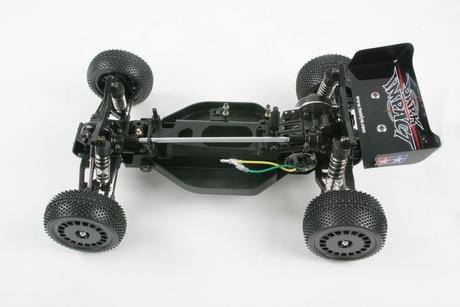

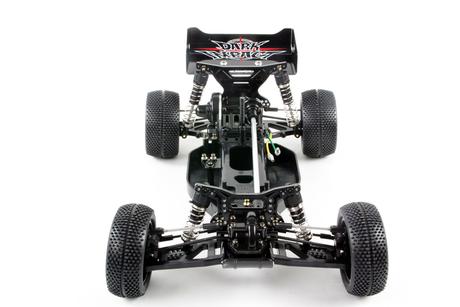

DF-03 chassis with refined traditional shaft 4WD

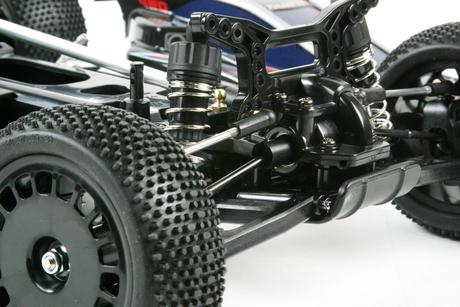

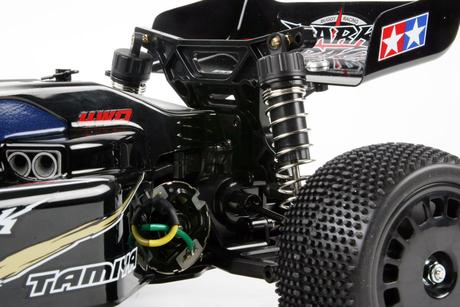

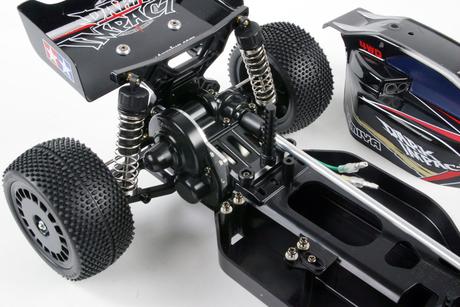

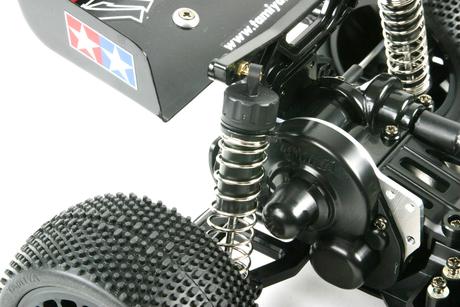

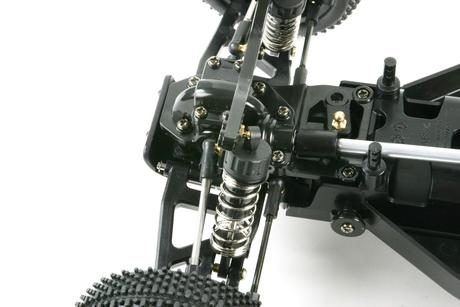

Adopts a monocoque tab frame with high torsional rigidity. The battery is placed in the centre and the RC mechanism is placed on the left and right sides for excellent weight balance, and the oil damper is housed within the wheelbase. By centrally mounting heavy items such as these, high running stability and cornering performance are achieved. The front and rear gearboxes with built-in high-performance ball differentials are compact in size. In particular, the front has a bevel gear at the tip of the propeller shaft. It engages directly with the ball differential carrier and eliminates secondary reductions such as counter gears. The propeller shaft is placed at the shortest distance and ball bearings are standard equipment, making drive efficiency more efficient. Furthermore, the 4-wheel double wishbone suspension Uses a long arm with excellent ground contact. A stainless steel pin is used on the axis of the arm to create smooth movement, and a small upright is installed to reduce un-sprung weight. In addition, the upper arm and oil damper can be attached. You can choose the position and have a wide range of settings.

Basic specifications:

Overall length 387mm, Overall width 250mm, Overall height 145mm
Minimum ground clearance 24mm
Wheelbase 272mm
Vehicle weight 1156g
Tread F217mm R203mm
Tire width/diameter: F33/87mm R43 /87mm
Frame: Monocoque tab
Drive system: Shaft drive 4WD
Differential gear: Front and rear ball differential
Steering: 3-split tie rod type
Suspension: 4-wheel double wishbone
Damper: Front CVA oil damper mini / Rear CVA oil damper short
Gear ratio: 9.17:1, Motor: RS540 type

Required separately:

2-channel radio
Steering servo
Electronic Speed Controller
7.2volt battery & compatible charger
Tamiya PS paint
