Tamiya 58374 Sand-Viper/Sand Viper (DT02/DT-02) Assembly Kit, NIB **Pre-Order**

TTP Models

Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.

Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

**Stock availability depends on the UK importers (The Hobby Co.) Stock/Supply, Please message us for an estimated delivery time frame for this kit before placing your order.

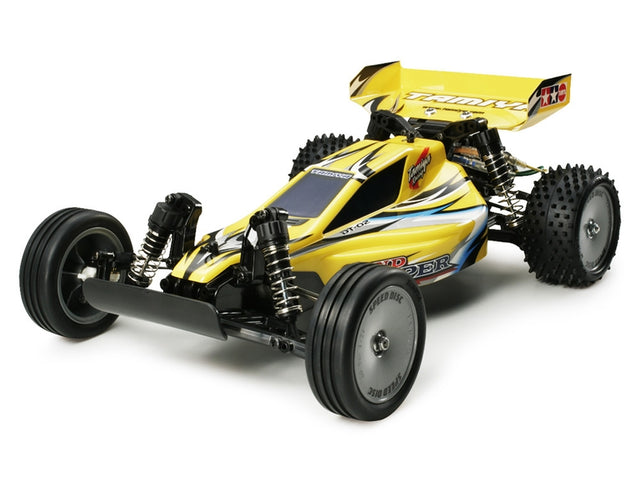

Tamiya Sand Viper Assembly Kit (DT02/DT-02), Kit No. 58374

Click Here for Manual PDF Download

Click Here for Optional DT02/DT-02 Parts Sheet

A 2WD buggy that enjoys nimble driving

This is an assembly kit for an electric radio-controlled 2WD buggy that allows you to fully enjoy driving from off-road to on-road by taking advantage of its light weight. It has a bathtub frame with a low centre of gravity and a 4-wheel double wish bone with oil dampers. Equipped with dog bone suspension and full bearing specifications, it is attractively equipped. The edgy, sharp body and large rear wing are made of lightweight, shock-resistant polycarbonate. The body is built into grey wheels that complement the bright yellow colour of the body. The front tires are wide grooved tires with excellent directionality, and the rear wheels are square spikes with high grip. The light running that is unique to 2WD is attractive.

2-wheel drive DT-02 chassis with hidden high performance

For driving A bathtub frame with a low centre of gravity and excellent weight balance is adopted, with the battery set vertically in the centre and the RC mechanism mounted flat. The suspension is a 4-wheel independent double wishbone with a long arm that flexibly handles rough roads. Equipped with four CVA oil dampers with excellent shock absorption, camber can be adjusted using a screw shaft on the upper arm. Furthermore, the sealed gear box has a built-in differential gear to prevent sand and pebbles from entering. Promises smooth cornering. The drive system is equipped with a total of 14 ball bearings to reduce power loss. The drive shaft and joint cup are also made of metal, increasing running reliability.

Basic specifications

Overall length 384mm, total width 248mm, total height 140mm
Wheelbase: 260mm
Minimum ground clearance: 26mm
Vehicle weight: 1041g
Motor: 540 type
Drive system: 2 rear wheels drive
Tread F/R both: 216mm/208mm
Differential gear system: 3 bevel differential
Steering tie rod: 2 divisions
Suspension F/R: double wishbone
Gear ratio: 9.28:1

Required separately

2-channel radio
Receiver
Servo
Battery/charger: Tamiya 7.2V Racing Pack or 7.2V Advance Pack various types
Tamiya PS Paint
