Tamiya 58384 Subaru Brat Kit (2WD) Assembly Kit (2 Bodies Inc.), NIB *Pre-Order*

£204.99 £229.99
Tax included. Shipping calculated at checkout.

TP Models

Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.

Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

**Stock availability depends on the UK importers (The Hobby Co.) Stock/Supply, Please message us for an estimated delivery time frame for this kit before placing your order.

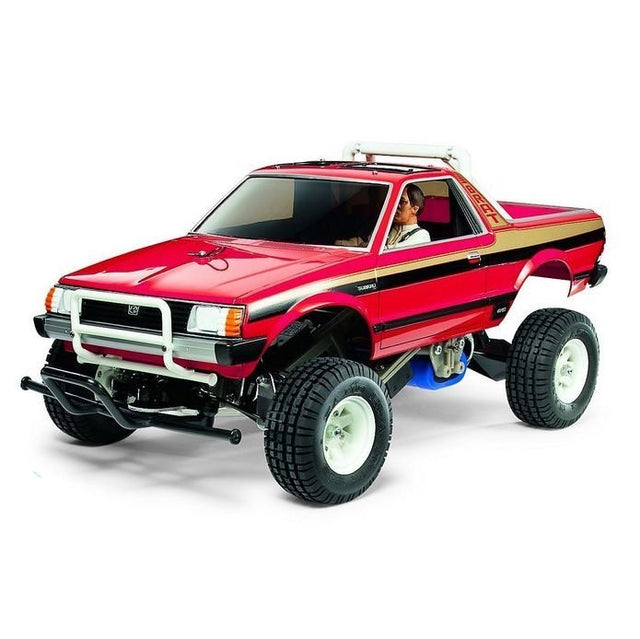

Tamiya Subaru Brat Kit (2WD)

Click Here for Manual PDF Download

A stylish pickup that was popular in the United States in the 1970s

Subaru's Brat pickup truck was very popular in the United States in the late 1970s because of its stylish form. As it was an export-only vehicle, it was rarely seen in Japan. There were very few of them, and many fans must have learned of its existence through the RC car. The RC car debuted in 1983 and became as popular as the real car. The Subaru Brat, which had the same basic configuration but updated each part, was born. Introducing a reprint version. Of course, the body is made of realistic styrene resin using a precision mould. If you paint it with the driver doll in plastic colour, the stylish body will be even more attractive. In addition, it can be used for driving purposes. A lightweight polycarbonate clear body is also included.

Unique rear wheel drive chassis with space frame

Including the distinctive space frame, inboard spring type front double wish equipped with a radius arm. The 4-wheel independent suspension with bones and rear trailing arm remains the same. At the time of release, the rear suspension only had a coil spring, but it has been updated to the diaphragm type oil damper coil spring unit that is now mainstream. In addition, the 540 motor is used. Equipped with a closed gearbox with a built-in differential gear. The rear drive shaft is a dog bone type joint that enables reliable drive power transmission. In addition, the 8-spoke design that was available as an option on the actual vehicle has been changed. The realistically reproduced wheels are a 3-piece type with a three-dimensional feel. The front and rear tires also have the same hollow block pattern as at the time.

Basic specifications

Total length 453mm, Overall width 220mm, overall height 175mm (roof)
vehicle weight approximately 1,840g (styrene resin body)
Tread: front 197mm, rear 178mm
Tire width/diameter: 35/82mm front and rear
Frame: space frame
Drive system: rear wheels Drive
Differential gear: 3 bevels
Steering: equal length 2-split tie rod type
Suspension: Front/double wishbone inboard spring Rear/trailing arm equipped with oil damper
Gear ratio: 6.7:1, 7.3:1, 8.5: 1
Motor: RS540 type

Required separately:

2-channel radio
Steering servo
Electronic Speed Controller
7.2volt battery & compatible charger
Tamiya PS paint

All of our kits come with FREE Tracked 24 hour delivery, with the option to upgrade to a Tracked 24 with signature (requiring to be signed for at point of delivery) - Any kit purchased under the *pre-order* title will be subject to delivery times from the UK importer into us, once received we will then post on to the customer - if you have any questions regarding delivery time, please contact us prior to placing your order.
International Customer Posting for Kits:
We are able, if required to split down kits into more affordable posting parcels.
Tracked delivery will be required to be paid on EACH parcel but this could result in a postage cost of between £16 - £24 for most kits, instead of the courier prices.
This would of course mean, only the Touring car and SOME smaller Buggy kit boxes will be able to be shipped also - if this is of interest, please, inquire with us today
