Tamiya 58391 Hotshot (2007) Assembly Kit, NIB **Pre-Order**

TTP Models

Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.

Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

**Stock availability depends on the UK importers (The Hobby Co.) Stock/Supply, Please message us for an estimated delivery time frame for this kit before placing your order.

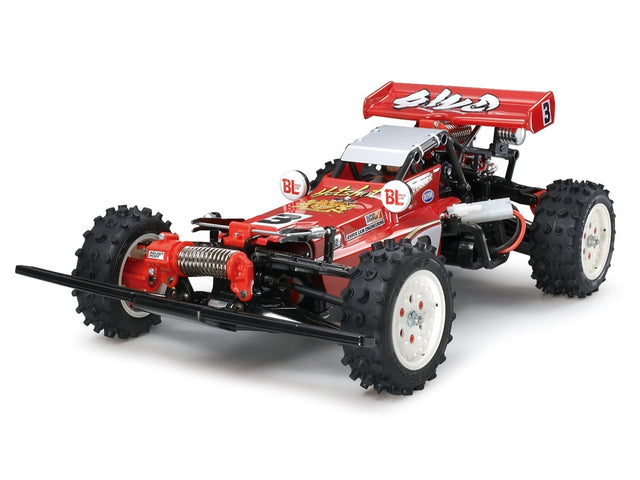

Tamiya Hotshot (2007) Assembly Kit, Kit No. 58391

Click Here for Manual PDF Download

VIDEO: Click here to see the model in action

Tamiya's first shaft 4WD racing buggy, which became the object of admiration

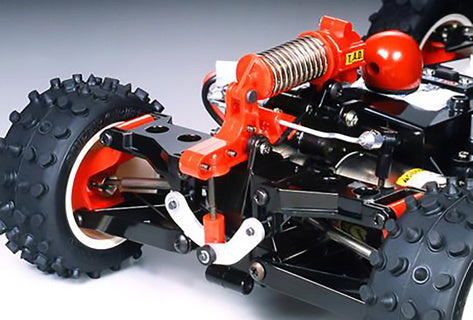

Introduced in 1985 as Tamiya's first shaft 4WD racing buggy. It quickly became known for its combative form with a low centre of gravity design and high performance running full of innovative mechanisms. It captivated many fans. The chassis is a three-part structure consisting of front and rear gearboxes and a centre monocoque. It is attractive for its high maintainability. The suspension is a double wishbone equipped with monoshock oil dampers and stabilizers on both front and rear. In particular, the rear is a progressive type that uses a connecting plate and push rod. In addition, the sealed front and rear gearboxes have built-in thrust ball bearings and differential gears. Because many special parts were used only for Hot Shots, the model was younger. Although it became a machine that was out of reach for fans, it instead aroused their admiration for it. The Hotshot became an epoch-making machine that established the genre of 4WD racing buggy. No. 1 in resale requests. In response to your feedback, we are releasing a reprint version.

A reprint version that has been updated while retaining the attractive basic structure

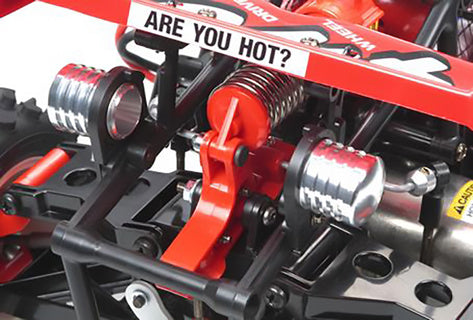

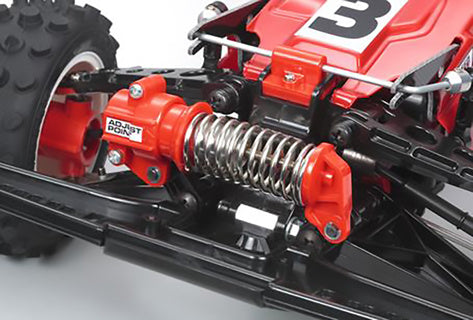

Based on the design concept of not making any changes to the form or structure as much as possible, we have removed parts that do not fit the current situation and Hot Shot (2007) is a reprint version with only the parts that are difficult to assemble updated. Major mechanisms such as shaft drive 4WD and front and rear double wishbone suspension equipped with adjustable type monoshock dampers remain the same, but the front and rear drive shafts and propeller shafts have been changed. The oil damper has been changed to a highly reliable dog bone type. The oil damper has also been changed to the currently mainstream diaphragm type. Also, since the reprint kit uses ESC for the speed controller, the rear aluminium heat sink is not originally necessary. However, This part, which is the focal point of the Hot Shot's rear view, was left as is as a dummy. The Hot Shot still has an unfading charm. I'm looking forward to comparing it with a modern 4WD off-road racer.

Basic specifications

Total length 390mm, Overall width 235mm, overall height 150mm
vehicle weight approximately 1,270g
Tread: front 194mm, rear 194mm
Tire width/diameter: Front 28/82mm Rear R34/82mm
Frame: ABS resin monocoque
Drive system: shaft drive 4WD
Differential gear: 3 bevels front and rear
Steering: equal length 2-split tie rod type
Suspension: 4-wheel double wishbone
Gear ratio: 10.04:1 8.70:1
Motor: RS540 type

Postage:

All of our kits come with FREE Tracked 24 hour delivery, with the option to upgrade to a Tracked 24 with signature (requiring to be signed for at point of delivery) - Any kit purchased under the *pre-order* title will be subject to delivery times from the UK importer into us, once received we will then post on to the customer - if you have any questions regarding delivery time, please contact us prior to placing your order.
