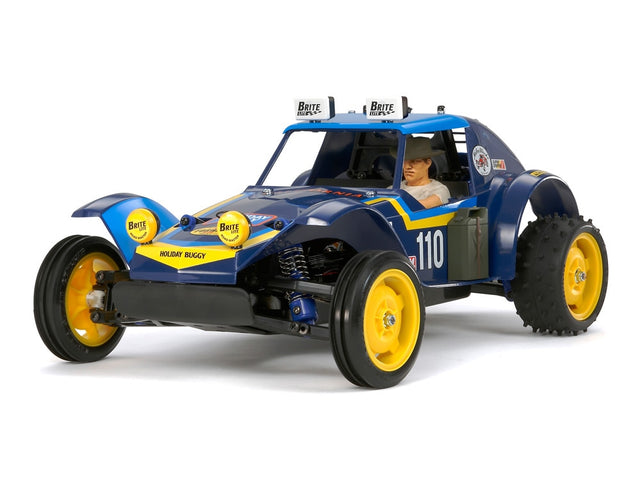

Tamiya Holiday Buggy 2010 (DT02/DT-02) Assembly Kit, Kit No. 58470

Click Here for Manual PDF Download

Click Here for Optional DT02/DT-02 Parts Sheet

A 2WD basic buggy with lots of fun

The holiday buggy, an electric radio-controlled 2-wheel drive buggy that was introduced in 1980 as the younger brother of the Buggy Champ Wagen Off-Roader, is back. It can be used anywhere from on-road to off-road, and is unique to 2WD. You can enjoy the nimble running of the DT-, and the body is made of shock-resistant soft resin and comes with a painted driver figure wearing a ten-gallon hat, giving you plenty of mood. The chassis is a modern version of the DT-, which is equipped with a 4-wheel double wishbone suspension. Changed to 02. Of course, the easy-to-assemble configuration with a reduced number of parts is also a great feature.

Uses a rear-wheel drive DT-02 chassis that is easy to work on

The RC mechanism and running battery are mounted flat, resulting in a low centre of gravity. Adopts a bathtub frame. In particular, the battery is set vertically in the centre for excellent weight balance. The bottom is finished flat to create a skid effect. Suspension is a 4-wheel double wishbone that moves flexibly. 4 Equipped with a coil spring unit, it exhibits high road holding even on rough roads. In addition, the sealed gearbox that shuts out the intrusion of sand and pebbles that are typical of off-road driving has a built-in differential gear, and is equipped with a 380 motor. ｡You can enjoy driving to the fullest because the speed is easy to control. If you replace it with the pinion gear and 540 motor (sold separately), you can enjoy powerful driving.

Basic specifications

Overall length 390mm, overall width 240mm, overall height 164mm
Wheelbase: 260mm
Minimum ground clearance: 26mm
Vehicle weight: 1250g
Motor: 380 type
Drive system: 2 rear wheels drive
Tire width/diameter: F22/81mm R39/86mm
Tread F/R both: 217mm/208mm
Differential gear system: 3 bevel differential
Steering tie rod: 2 divisions
Suspension F/R: double wishbone
Gear ratio: 15.77:1

Required separately

2-channel radio
Receiver
Servo
Battery/charger: Tamiya 7.2V Racing Pack or 7.2V Advance Pack various types
Tamiya PS Paint
