Tamiya Super Hotshot (2012) Assembly Kit, Kit No. 58517

Click Here for Manual PDF Download

The evolved version of the Hotshot is back!

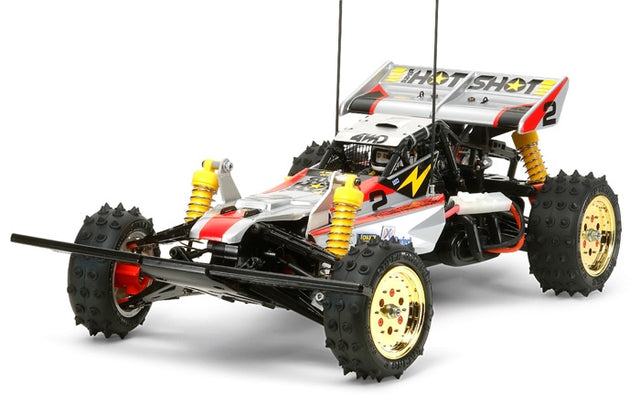

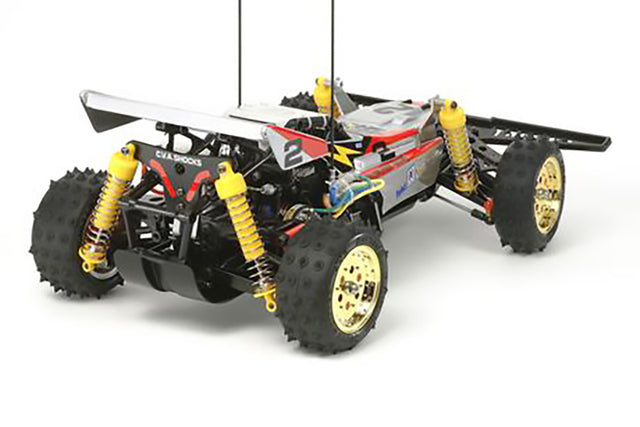

This is a reprint version with improvements while maintaining the basic configuration of the electric RC/4WD racing buggy that was introduced in 1986 as a special version of the Hotshot. In contrast to the Red-based Hotshot. The Super Hot Shot is equipped with a silver-based body and rear wing with red and black graphics, four yellow CVA oil dampers, and gold-plated wheels with high-grip pin spike tires. Features. An even more fearless mood.

Updated reprint version with the same basic configuration

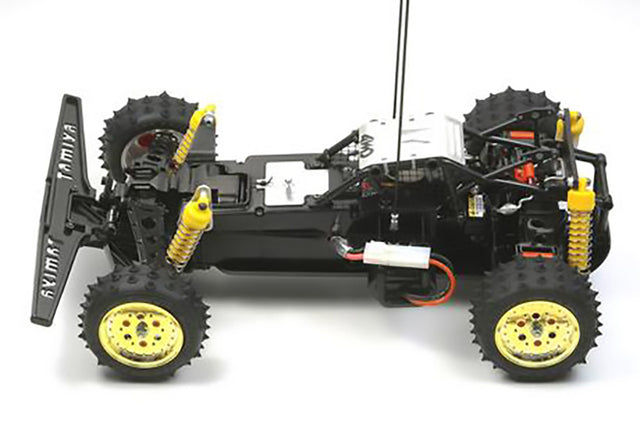

The tough body structure that can withstand hard driving, such as the ABS resin monocoque frame, roll cage, and under guard, remains the same. Horizontal installation The motor and shaft drive 4WD provides high stability even during high-speed off-road driving, and excellent cornering performance. In addition, ball bearings are used for all bearings, including the gearbox and axle, to efficiently transmit motor power to the tires. The front and rear drive shafts and propeller shafts have been changed to highly reliable dog bone types. In addition, the double wishbone 4-wheel independent suspension is equipped with 4 oil dampers. The spring strength can be changed to 3 levels. It is possible to make settings to suit the road surface. Furthermore, a GT tune motor (25T) is equipped as standard, allowing you to enjoy driving at high speed.

Basic specifications

Overall length 390mm, Overall width 235mm, Overall height 150mm
Vehicle weight approx. 1330g (RC mechanism, not including battery)
Tread: front 205mm, rear 208mm
Tire width/diameter: front 31/88mm, rear 38/88mm
Frame: ABS resin monocoque
Drive system: shaft drive 4WD
Differential gear: front and rear 3 Bevel
Steering: 2-split tie rod type
Suspension: 4-wheel double wishbone
Gear ratio: 8.1:1 10.04:1
Motor: GT tune motor (25T)
