Tamiya Lancia Delta Integrale (TT02/TT-02 Chassis) Assembly Kit, Kit No. 58570

Click Here for Manual PDF Download

Click Here for Body Set PDF Download

Click Here for Optional TT02/TT-02 Parts Sheet

The 1992 Rally Champion looks good in the dust and smoke

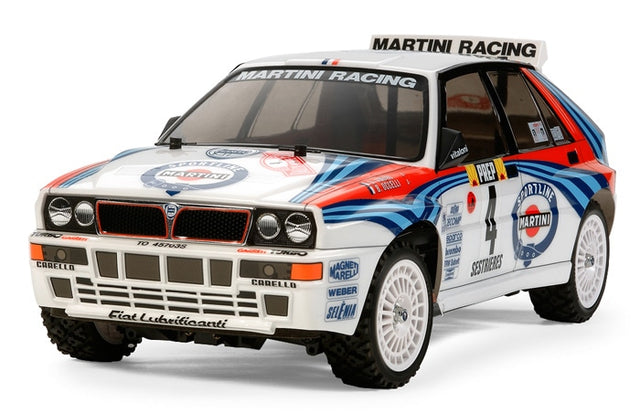

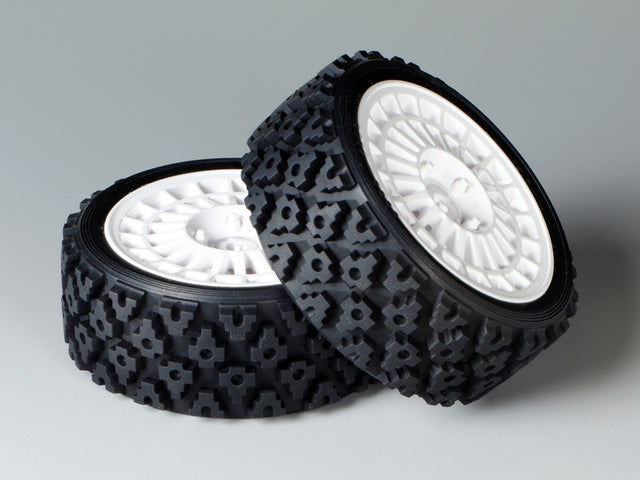

This is an electric RC car assembly kit for the Lancia Delta Integrale, the 1992 World Rally Championship champion machine. It features a 2-box 4-door hatchback style based on straight lines, and edgy front and rear blisters. The attractive fenders and other features are realistically reproduced in polycarbonate. The bulge on the bonnet and the many air intakes in the front bumper give a sense of high performance .In addition, the door mirrors and roof spoiler are also available as separate parts. Familiar in the motorsports scene. The Martini stripe is finished off just like the actual car with a large sticker. The chassis uses the shaft drive 4WD TT-02. Equipped with rally block tires, you can enjoy dynamic driving from on-road to flat dirt

Shaft drive 4WD with excellent and fun settings, adopts TT-02 chassis

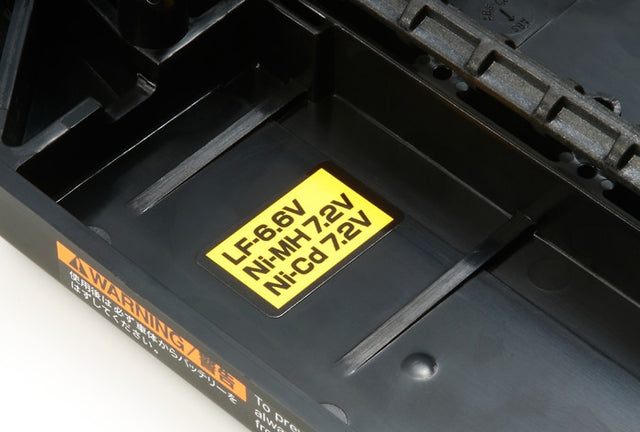

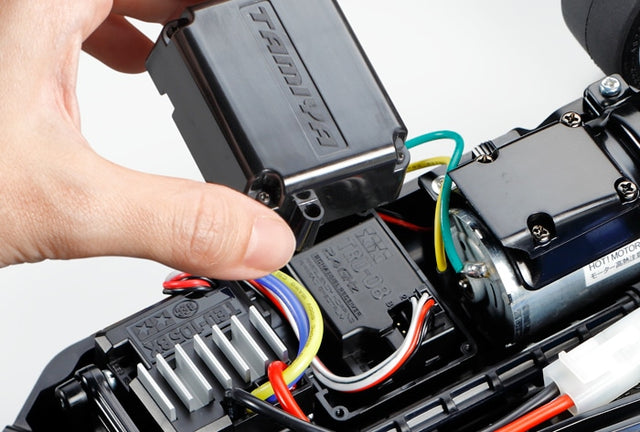

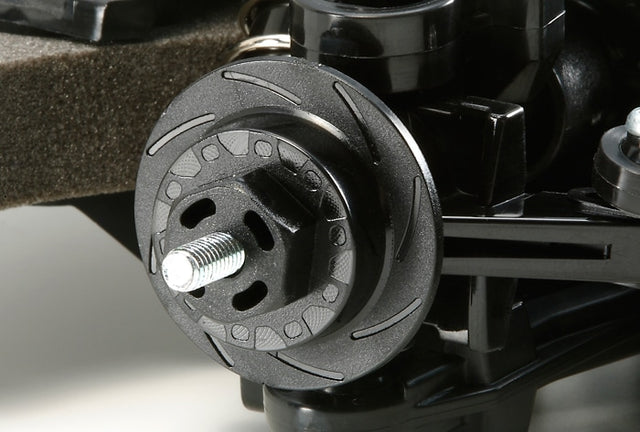

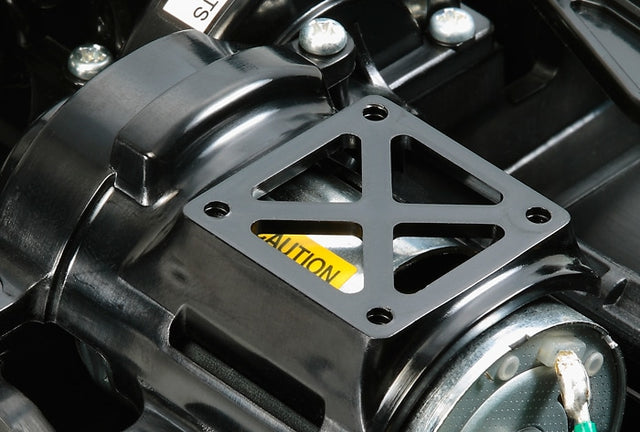

The chassis is a shaft drive 4WD TT-02. The well-balanced design has a vertical layout with the running battery on the left and the motor on the right, resulting in excellent handling stability. The suspension arms and uprights are common on the left and right, making it easy to assemble, and the upper and lower split gear cases make it highly maintainable. Furthermore, two types of wheelbase, vehicle height, and tread can be selected by recombining parts. It is also possible to set the motor mount with a wide range of 10 gear ratios to choose from. The Lancia Delta Integrale is assembled in a high position. The wheel hubs are designed to resemble brake discs, and are inspired by the bumpers of real racing carts. It also incorporates playfulness, such as being equipped with a front bumper support.

Basic specifications

Overall length 407mm, overall width 186mm, overall height 159mm
Wheelbase 257mm
Tire width/diameter: 27/69mm both front and rear
Frame: ship bottom bathtub type
Drive system: Vertical motor/shaft drive 4WD

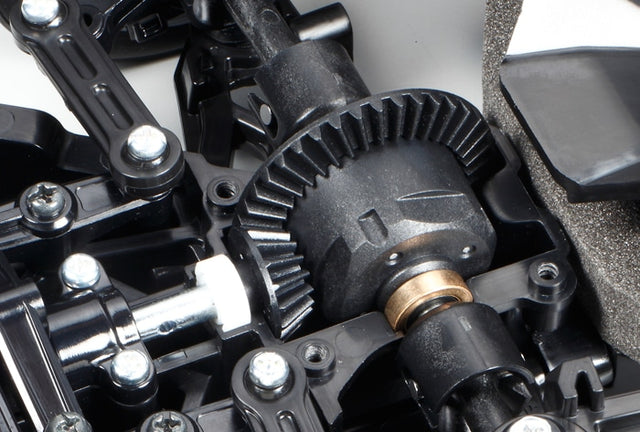

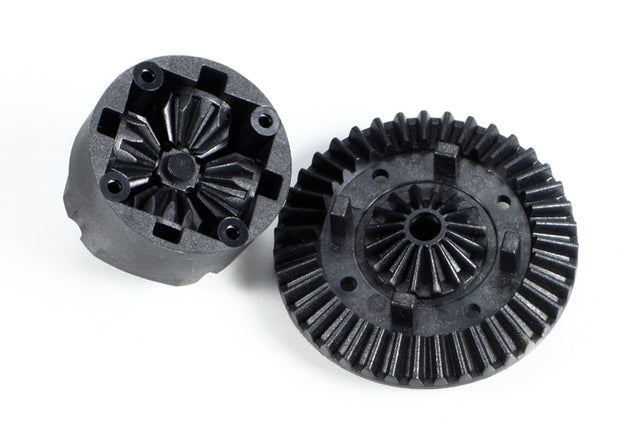

Differential gear: Front and rear resin 4-bevel type

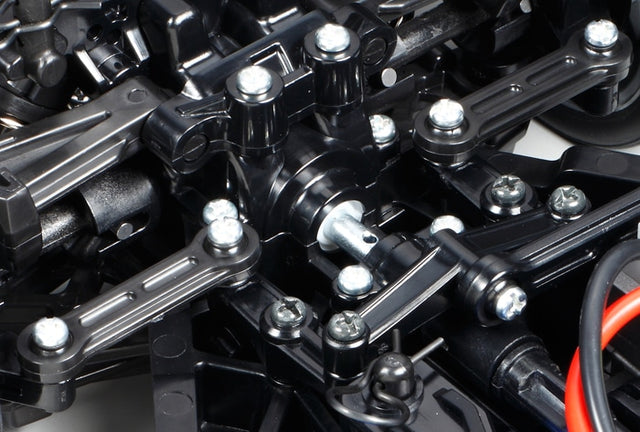

Steering: 3-split tie rod type

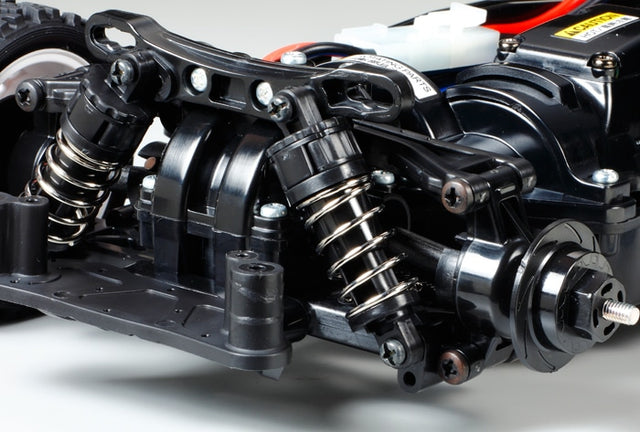

Suspension: 4-wheel double wishbone
Damper: Front and rear friction
Gear ratio: Kit standard 9.58: 1 (10 types of gear ratios from 11.38:1 to 7.28:1 can be selected in combination with the pinion sold separately)
Motor: 540 type

Required separately:

2-channel radio
Steering servo
7.2volt battery & compatible charger
Tamiya PS paint
