Tamiya 58571 Porsche 911 Carrera RSR Assembly Kit, (TT02/TT-02) NIB **Pre-Order**

TTP Models

Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.

Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

**Stock availability depends on the UK importers (The Hobby Co.) Stock/Supply, Please message us for an estimated delivery time frame for this kit before placing your order.

Tamiya Porsche 911 Carrera RSR (TT02/TT-02 Chassis) Assembly Kit, Kit No. 58571

Click Here for Manual PDF Download

Click Here for Body Set PDF Download

Click Here for Optional TT02/TT-02 Parts Sheet

The strongest Group 4 machine that swept the races in 1973.

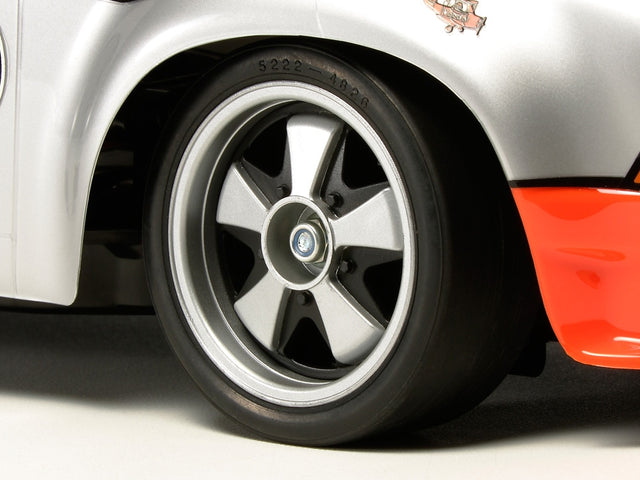

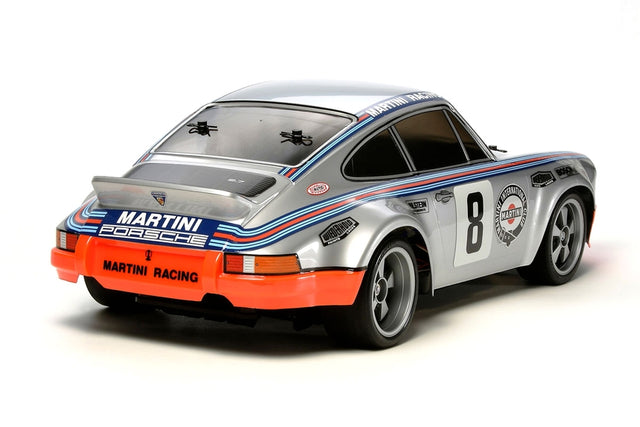

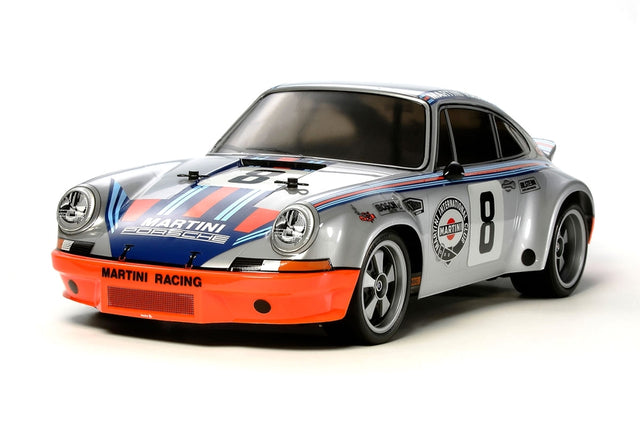

In 1973 , it won three international championships and seven domestic championships, and also won the legendary public road race "Targa Florio" held in Sicily, Italy, and the Daytona 24. It also conquered the timed endurance race. This is an electric radio control car assembly kit that reproduces the works specification of the Porsche 911 Carrera RSR, the Gr.4 machine that dominated this year's race. It has a unique design that makes it instantly recognizable as a Porsche no matter where you look from. The form is realistically reproduced using polycarbonate. The front and rear fenders that protrude greatly are impressive. Also, the Martini stripes and bib, which are familiar in the racing scene, that tighten the silver colour body are available as stickers. Both the front and rear wheels are 2-piece. The set tires are racing slicks, and the rear is a wide type.

Uses a shaft drive 4WD TT-02 chassis that has excellent manoeuvrability and is fun to set up

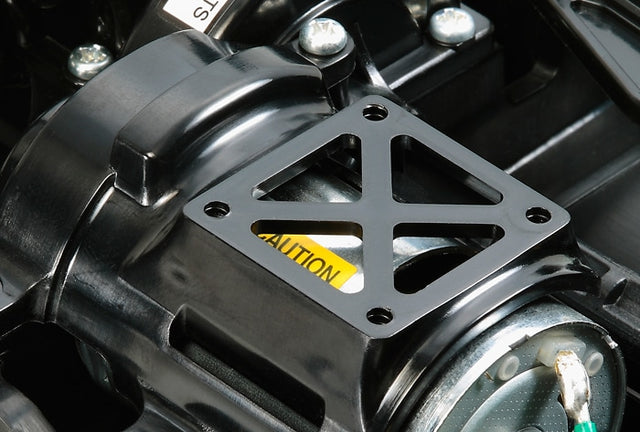

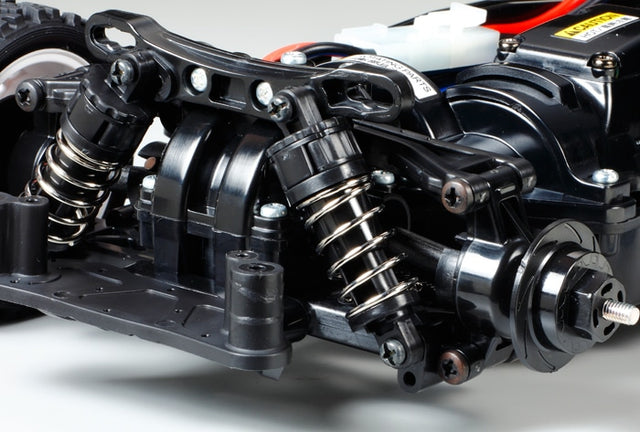

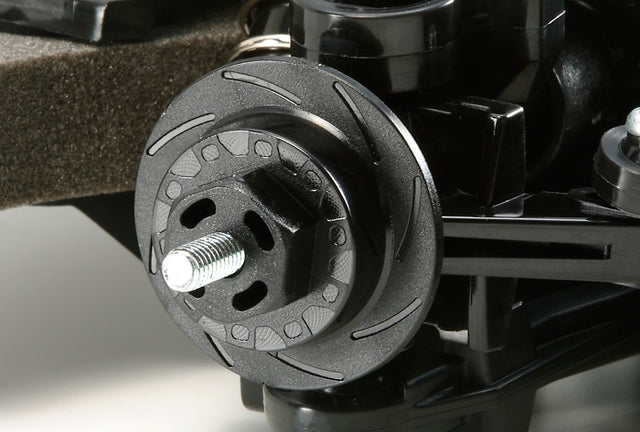

The chassis is a shaft drive 4WD TT-02. The running battery is on the left. The well-balanced design with the motor placed vertically on the right provides excellent handling stability, the suspension arms and uprights are shared between the left and right sides for easy assembly, and the upper and lower split gear case makes for a highly maintainable configuration. By rearranging parts, you can choose from two types of wheelbase, vehicle height, and tread, and settings such as a motor mount that allows you to choose from a wide range of 10 types of gear ratios. Also, the wheel hub has a brake disc-like design, making it more realistic than the actual car. It also has a sense of fun, such as being equipped with a front bumper support that resembles the bumper of a racing cart.

Basic specifications

Overall length 457mm, overall width 204mm, overall height 136mm
Wheelbase 251mm
Tire width/diameter: front 27/67mm, rear 32/67mm
Frame: Bottom bathtub type
Drive system: Vertical motor/shaft drive 4WD

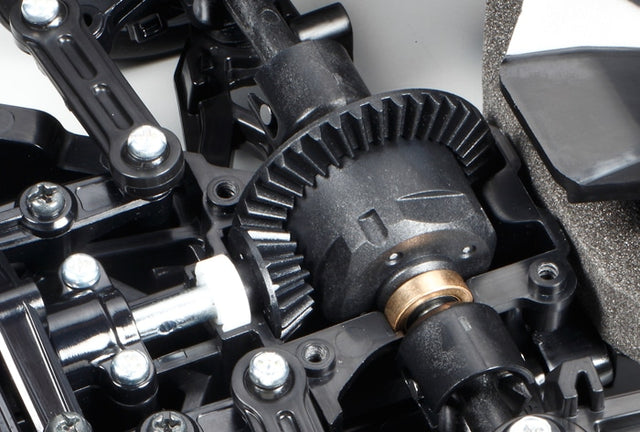

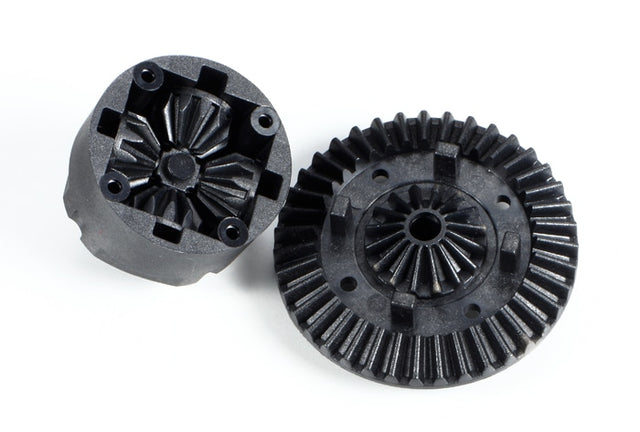

Differential gear: Front and rear resin 4-bevel type

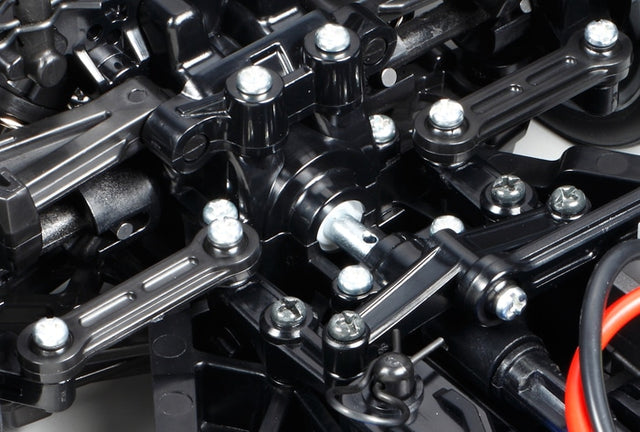

Steering: 3-split tie rod type
Suspension: 4-wheel double wishbone
Damper: Front and rear Tomo Friction
Gear ratio: kit standard 8.27:1 (10 types of gear ratios from 11.38:1 to 7.28:1 can be selected by combining with pinion sold separately)
Motor: 540 type

Required Separately

2-channel radio
Steering servo

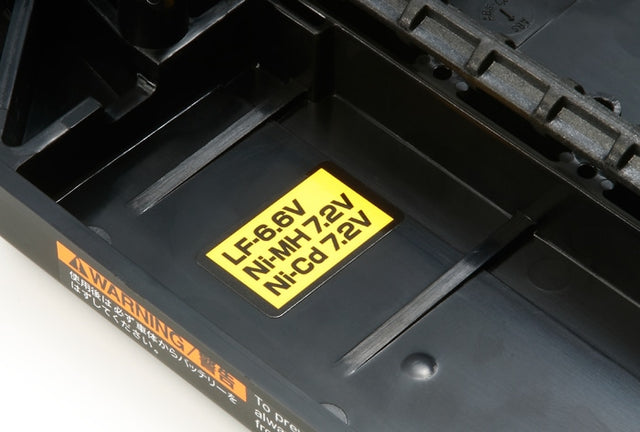

7.2volt battery & compatible charger
Tamiya PS paint

Postage:

All of our kits come with FREE Tracked 24 hour delivery, with the option to upgrade to a Tracked 24 with signature (requiring to be signed for at point of delivery) - Any kit purchased under the *pre-order* title will be subject to delivery times from the UK importer into us, once received we will then post on to the customer - if you have any questions regarding delivery time, please contact us prior to placing your order.
