Tamiya 58572 Volkswagen Beetle Assembly Kit, (M-06/M06), NIB **Pre-Order**

TTP Models

Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.

Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

**Stock availability depends on the UK importers (The Hobby Co.) Stock/Supply, Please message us for an estimated delivery time frame for this kit before placing your order.

Tamiya Volkswagen Beetle (M-06/M06 Chassis) Assembly Kit, Kit No. 58571

Click Here for Manual PDF Download

Click Here for Body Set PDF Download

Click Here for Optional M06/M-06 Parts Sheet

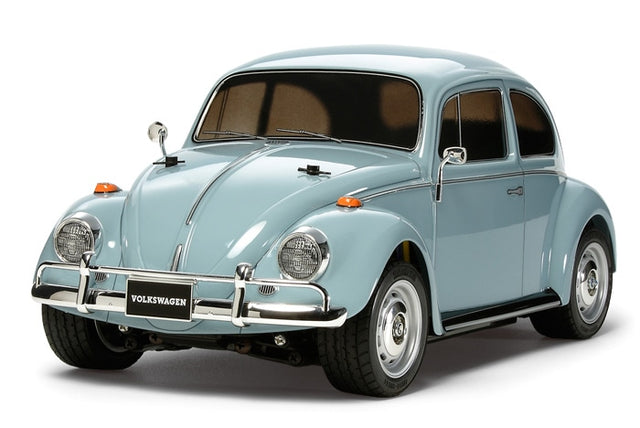

Reproducing the 1967 model, which is said to be the best of Beetles.

Rounded and humorous style, rear-wheel drive with an air-cooled horizontally opposed 4-cylinder engine mounted in the rear with sufficient power, a simple and practical interior, and The Volkswagen Beetle (Type 1) was loved around the world for its high durability and reliability. Although the basic silhouette remained the same, improvements were made to various parts, and even after the New Beetle was introduced in 1998, it continued to be used until 2003. Production continues, with more than 21 million units produced, making it the world's largest production record for a single car model. Among the Volkswagen Beetles that are still loved all over the world, the 1967 Beetle is called the best of Beetles. This is an assembly kit of an electric radio control car that reproduces the model. The unique rounded form is realistically modelled using polycarbonate. The front and rear bumpers, light case, and door mirrors are made of plated parts, giving it a scale-like finish. The chassis uses M-06, which has a motor mounted on the rear end to drive the rear wheels, just like the actual car.

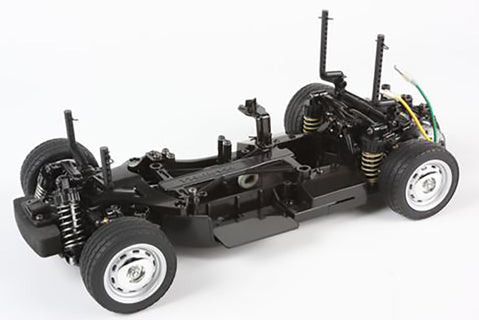

Adopts M-06 chassis with rear motor and rear wheel drive

The chassis has a rear motor and rear wheel drive. Adopts M-06.The bathtub type frame has the driving battery laid out vertically, and the servo, ESC, and receiver are placed on the left and right sides of the battery to create a high weight balance, and the heavy objects are placed almost within the height of the tires. Achieved a low centre of gravity by installing it on the front wheel. Furthermore, the plated wheels have the same design as the actual car, and a 60D radial is installed on the front wheel, and a 60D super grip radial with excellent grip is installed on the rear wheel. It improves manoeuvrability and rear stability. We have tried to achieve both. The suspension is a 4-wheel double wishbone. The steering wiper with a 3-split configuration provides straightforward cornering characteristics.

Basic specifications

Overall length 397mm, overall width 163mm, overall height 145mm
Wheelbase 239mm (210mm) (3 types available, 225, 239mm)
Tread: 138mm both front and rear
Drive system: rear motor/rear wheel drive
Tire width/diameter: 25/59mm front and rear
Differential gear system: 3 bevels
Steering tie rod: 3-split
Suspension: double wishbone 4-wheel independent
Damper: front and rear Tomo Friction
Gear ratio: 5.8:1
Motor: 540 type

Required Separately

2-channel radio
Steering servo
7.2volt battery & compatible charger
Tamiya PS paint

Postage:

All of our kits come with FREE Tracked 24 hour delivery, with the option to upgrade to a Tracked 24 with signature (requiring to be signed for at point of delivery) - Any kit purchased under the *pre-order* title will be subject to delivery times from the UK importer into us, once received we will then post on to the customer - if you have any questions regarding delivery time, please contact us prior to placing your order.
