Tamiya 58578 Ford Zakspeed Turbo Capri Gr.5 Würth Assembly Kit, (TT02/TT-02) NIB **Discontinued**
Sold out
£139.00
£159.99
TTP Models
Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.
Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.
No Expected delivery date into the UK as of yet - Please message us for an update

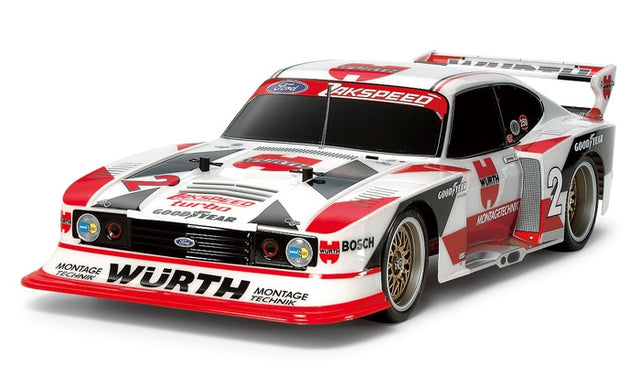

Tamiya Ford Zakspeed Turbo Capri Gr.5 Würth Assembly Kit (TT-02 Chassis), Kit No. 58578
The Ford Zakspeed Turbo Capri Group 5 car featured a 1,427cc four-cylinder DOHC engine matched with a stretched body that was the result of extensive wind-tunnel testing and was far evolved from the original 2-door Capri road version. In the 1981 running of the German Racing Championship (DRM), three years after its initial entry, the car was sponsored by the German auto parts maker Würth and left the rest of the field in its wake as it surged to the Championship. Now, the legendary machine is recreated by this 1/10 scale R/C model assembly kit. The wide and low form is accurately reproduced in polycarbonate, including the big overhanging front/rear fenders, and the model also features light cases and the rear wing as separate parts. Mesh wheels are 2-piece, with the rear pair wider than those at the front. Finally, the stylish marking scheme can be replicated using the included marking stickers.
Adaptable TT-02 Chassis offers balanced shaft driven 4WD
The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.
**For a complete list of option parts/hop-ups available for this chassis please message us a we can assist.
Kit Specifications:
Scale: 1:10 RC Assembly Kit
Wheelbase: 251mm
Length: 488mm, Width: 205mm, Height: 125mm.
Bathtub-type Frame
Shaft Driven 4WD
Front/Rear 4-Bevel Resin Differentials
3-Piece Steering Tie-Rod
4-Wheel Double Wishbone Suspension
Front/Rear Friction Dampers
Includes *ESC and *Motor.
Requires 2-channel radio, steering servo, 7.2-7.4volt battery with compatible charger and Tamiya PS paint to complete.
*Motor Included in this kit:
54358: Torque Tuned Motor
(27T, 255 Torque, 14500rpm)

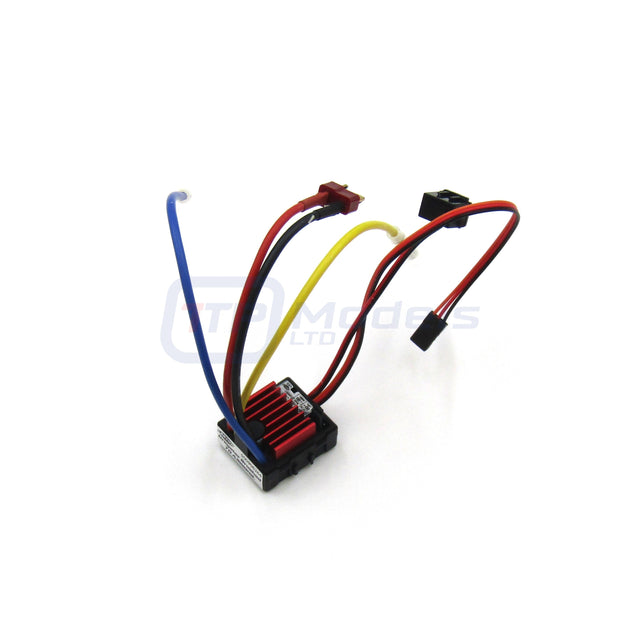

*ESC Specs for this kit are:

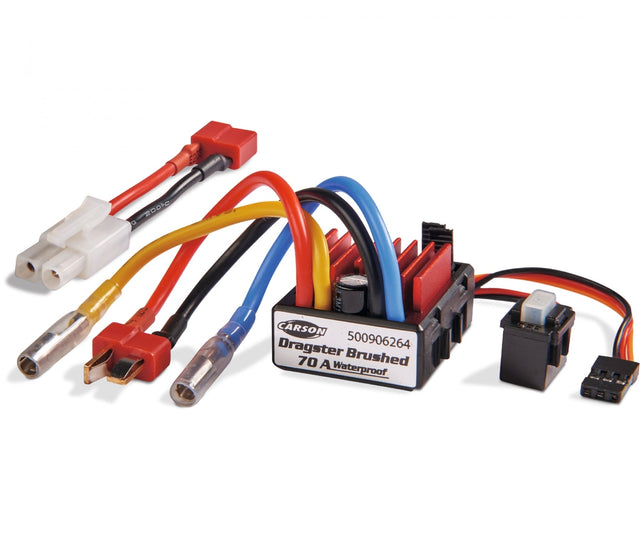

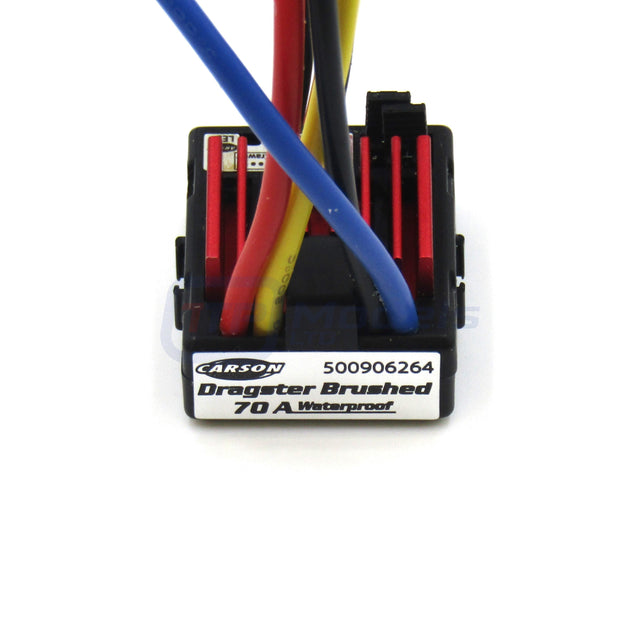

Speed Controller Dragster Brushed 70A: C906264/500906264
Auto throttle calibration suitable for beginners
Waterproof
Dimensions: 34.5mm x 30.2mm x 18.7mm
Weight: 39g
70Amp (Forward) / 40Amp (Reverse)
2-3S Lipo or 6 Cell NiMH: 540, 550 Motor 18T or below 30000rpm @ 7.2v
Low voltage cut-off
High power BEC output for Hi-Torque Servo
Bec Output Voltage: 3A/6v (switching regulation)
Suitable for on-road, off-road, boat & crawler use

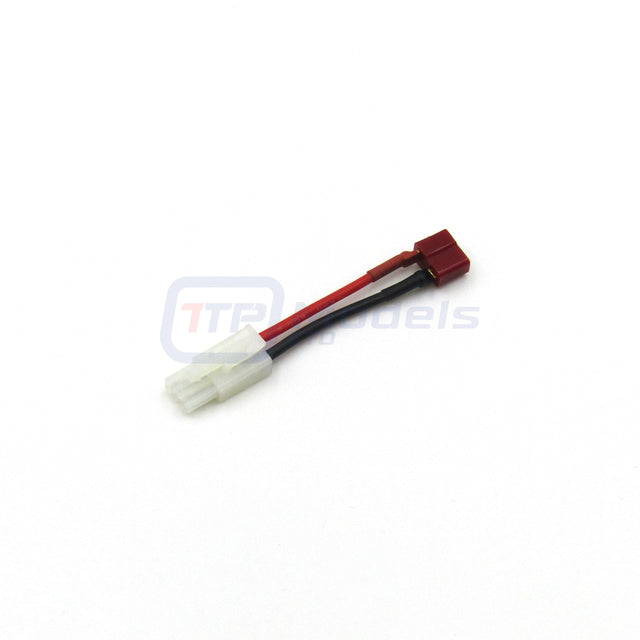

Standard Size Tamiya Connector Fitted As Shown

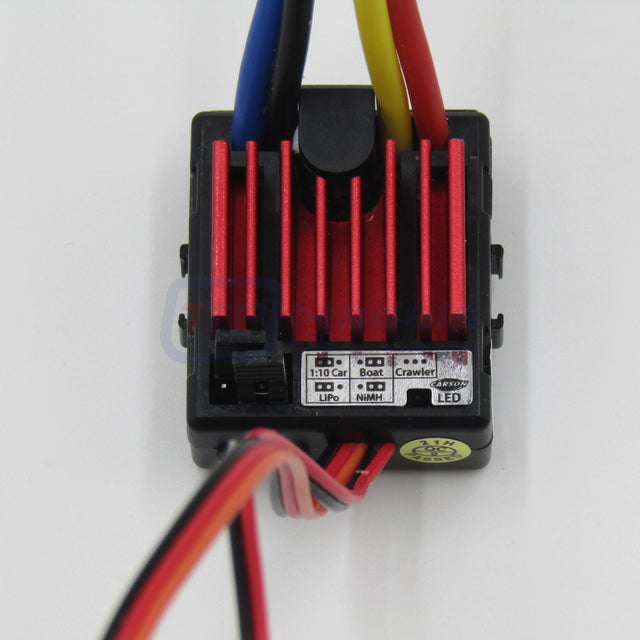

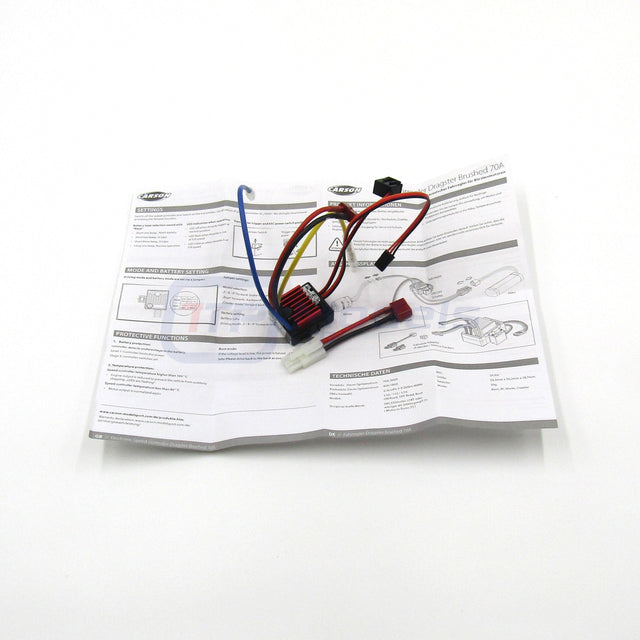

Upon receipt you will need to plug the small jumper plugs into the ESC in the correct positions to suit your battery type (Lipo/NiMH) & mode (F/B/R, boat or F/B) please refer to instructions (Connection Diagram)
Postage:
All of our kits come with Tracked 24 delivery as standard. All orders paid for by 3pm will be posted that same business day.
