Tamiya 58583 Egress (2013) Assembly Kit, NIB **Pre-Order**

TTP Models

Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.

Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

**Stock availability depends on the UK importers (The Hobby Co.) Stock/Supply, Please message us for an estimated delivery time frame for this kit before placing your order.

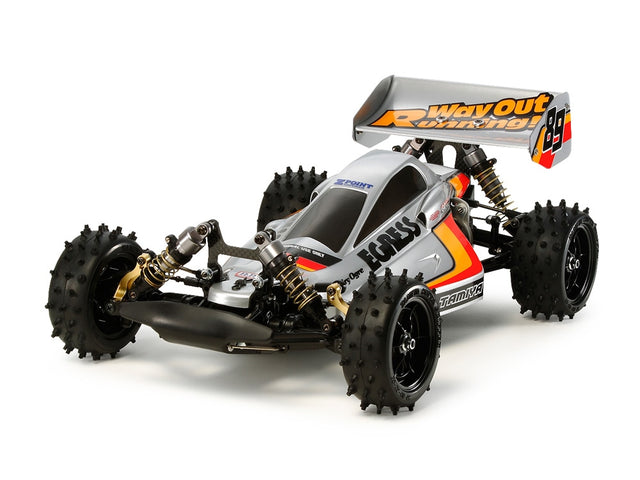

Tamiya Egress (2013) Assembly Kit, Kit No. 58583

Click Here for Manual PDF Download

A coveted machine with enhanced potential to match the current RC scene

The Avante was introduced in 1988 as the highest model of 4WD buggies. The following year, TRF (Tamiya Racing Factory) was formed, and Tamiya began racing around the world. Taking the know-how gained through racing, we designed a new car based on the Avante as a race-only car, and adopted carbon plates used in F1 and aircraft, as well as a ball differential and large-capacity oil. The Egress was developed with the aim of winning in races, using dampers and lightweight but expensive titanium screws. At the time, belt-driven cars were in full swing, but the Egress was the only shaft-driven car that was active in races, and is now known as the Egress. Each part has been revived with increased potential to match the RC scene.

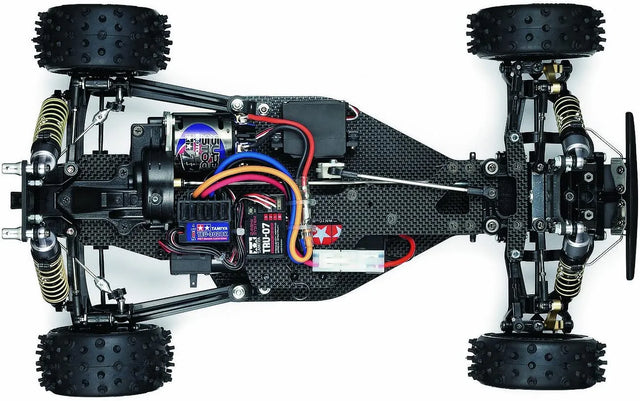

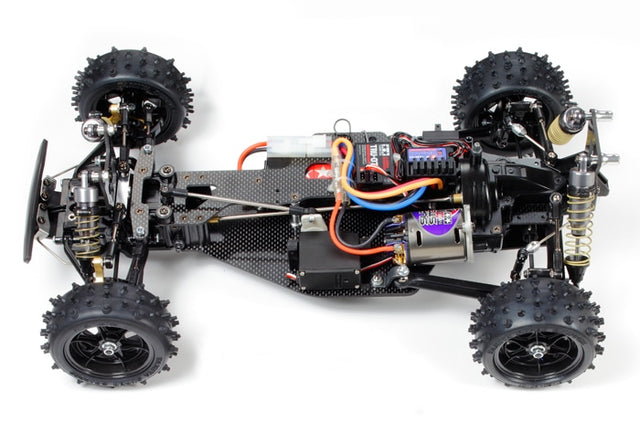

Highly rigid shaft drive 4WD chassis that uses many carbon parts

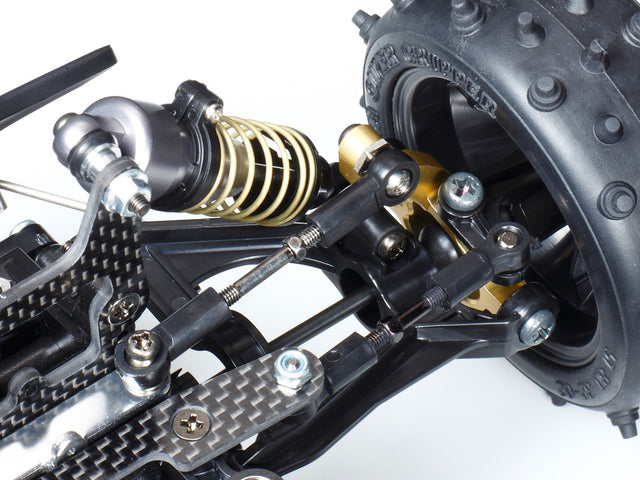

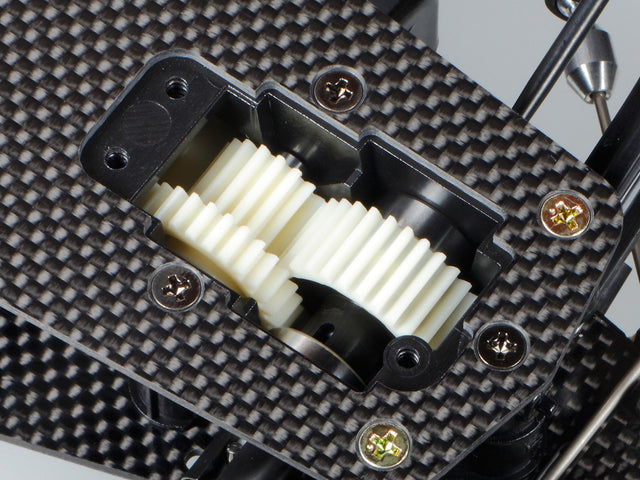

The chassis is a carbon double deck. It boasts high rigidity that does not budge. The powertrain of the shaft drive 4WD is a full bearing specification. The front and rear ball differentials are new parts that have been revised from the original design. In addition to smooth operation, maintainability and durability have been improved. In addition, a one-way bearing is built into the drive gear. The torque splitter effect provides straightforward handling. It is also possible to change to a one-way bearing and make it a locking specification. Furthermore, the universal shaft, which is the most heavily used part of the drive system, has the same structure as the current TRF series, and has a smooth Achieved drive and high reliability. Suspension is 4 independent double wishbone wheels. Equipped with 4 oil dampers that use aluminium cylinders, and stabilizers are also installed at the front and rear. The front upright is made of high-strength aluminium cutting. The steering system is equipped with a ball bearing on the wiper arm axis and uses a 2.0mm thick carbon plate to create linear handling. Titanium screws are not used this time, but the performance more than makes up for it. Even with the current mainstream brushless motor, you can enjoy a wonderful run.

Basic specifications

Overall length 430mm, overall width 243mm, overall height 157mm
Wheelbase 275mm
Tread: 200mm both front and rear
Frame: carbon double Deck
Drive system: shaft drive 4WD
Body and under cowl: polycarbonate
Differential gear: front and rear ball differential, centre one-way
Steering: 3-split tie rod type
Suspension: 4-wheel double wishbone
Tire width/diameter: front 32/88mm, Rear 40/88mm
Damper: Aluminium cylinder high cap oil damper
Gear ratio: 8.33:1 (22T pinion gear included in the kit)

Postage:

All of our kits come with FREE Tracked 24 hour delivery, with the option to upgrade to a Tracked 24 with signature (requiring to be signed for at point of delivery) - Any kit purchased under the *pre-order* title will be subject to delivery times from the UK importer into us, once received we will then post on to the customer - if you have any questions regarding delivery time, please contact us prior to placing your order.
