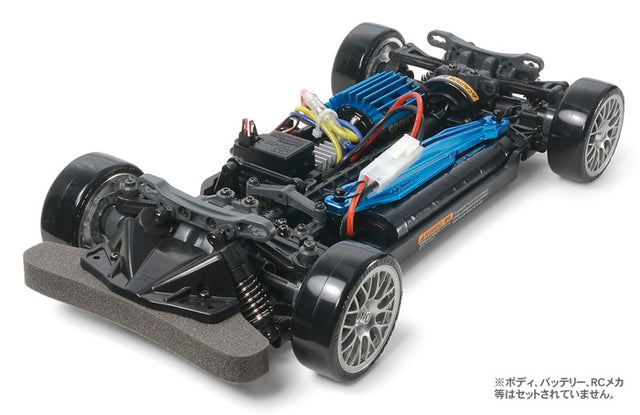

Tamiya TT-02D Drift Spec Chassis (TT02D/TT-02D) Assembly Kit, Kit No. 58584

Click Here for Manual PDF Download

Click Here for Optional TT02D/TT-02D Parts Sheet

Drifting is fun with a special tune!

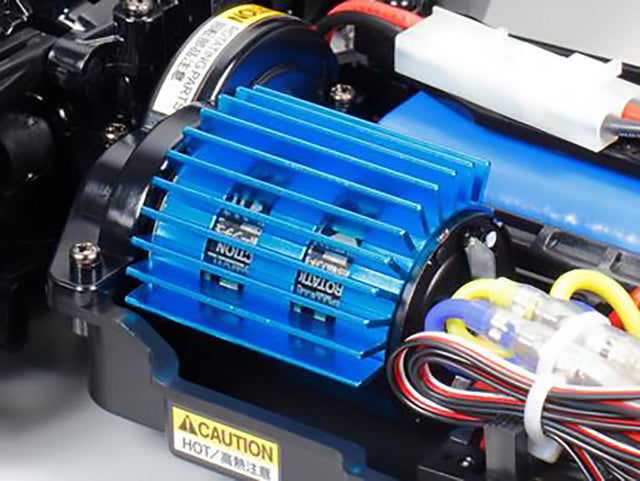

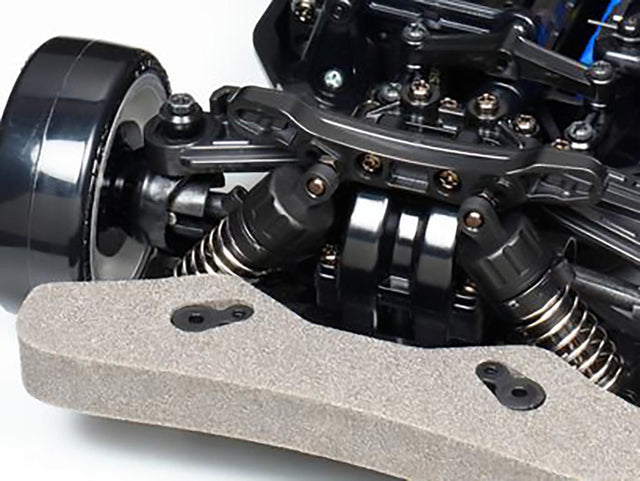

Based on the shaft drive 4WD TT-02 chassis, which has excellent handling stability, high maintainability, and can be configured with two types of wheelbase and tread by changing parts. This is a chassis kit that has been tuned to fully enjoy drifting. Mesh wheels with a matte chrome plated finish are set with 24mm wide drift tires. The double wishbone 4-wheel suspension is equipped with a CVA oil damper. Upright In addition to increasing strength by using reinforced resin for the brake disc and damper stays, the wheel hub is semi-gloss plated in the image of a brake disc, and the battery holder is a blue semi-gloss plated part that attracts attention. Furthermore, full bearing specifications reduce drive loss. The sport-tuned motor is also equipped with an aluminium motor heat sink.

What is drift driving?

Drifting driving involves intentionally sliding the rear tires as you enter a corner, and turning around the corner while keeping them sliding by operating the steering wheel and throttle. World Rally. It is actively used as a cornering technique in championships, and even competitions are held to compete on drifting techniques. Drifting is very popular in actual cars. It has been specially tuned to enjoy thrilling drifting. This is a feature of the drift spec.

Basic specifications

Chassis length 376mm, chassis width 182mm/190mm
Wheelbase 257mm/251mm
Tire width/diameter: 24/64mm front and rear
Frame: bottom-shaped bathtub type
Drive system: Vertical motor/shaft drive 4WD
Differential gear: resin 4-bevel type both front and rear
Steering: 3-split tie rod type
Suspension: 4-wheel double wishbone
Damper: CVA oil damper
Gear ratio: kit standard 8.27:1 (10 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinion)
Motor: 540 sports tune
Drive system is full bearing specification

Required separately:

2-channel radio
Steering servo
ESC (Electronic Speed Controller)
7.2volt battery & compatible charger
Tamiya PS paint
