Tamiya Rock Socker (CR-01/CR01) Assembly Kit, Kit No. 58592

Click Here for Manual PDF Download

Click Here for Optional CR01/CR-01 Parts Sheet

Challenge roadless roads with mind-boggling running performance!

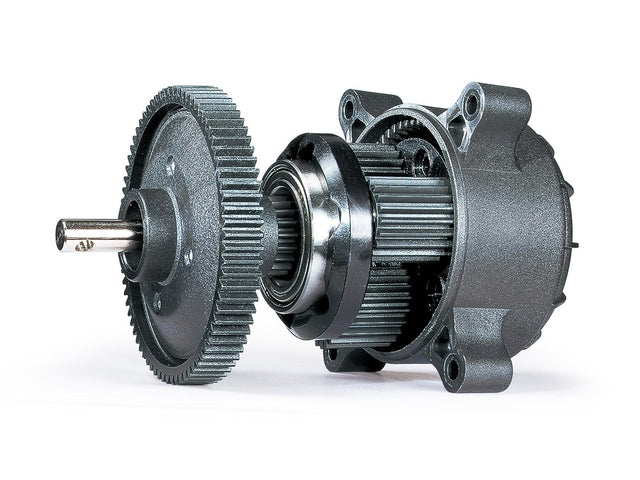

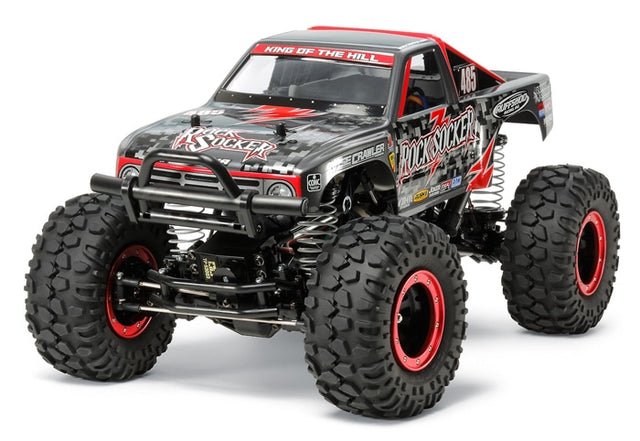

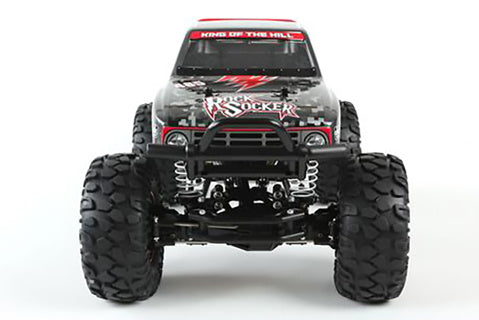

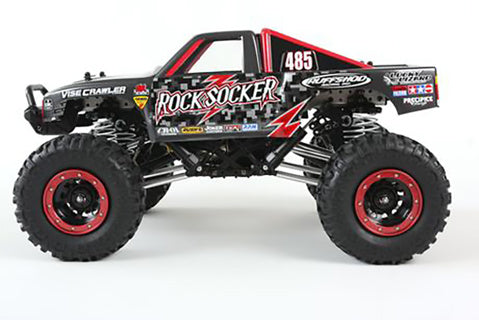

A mix of rock crawling, where you climb up rocky slopes that look up at you, and speed racing, where you compete for running time. "Rock Buggy" is a real competition vehicle that is gaining popularity in America. This is an assembly kit for an electric radio control car that evokes the image of a racing truck. The body, reminiscent of a racing truck, is made of lightweight and shock-resistant polycarbonate. Many sponsor stickers and other items are available to create a moody finish. The chassis can also be used for hard rock crawling. The CR-01 is equipped with a highly rigid ladder frame composed of aluminium side members and resin cross members, and is equipped with an aluminium rod 4-link suspension with an oil damper. The spring uses a barrel type with a progressive effect. In addition, the shaft drive 4WD, which has a motor mounted almost in the centre of the vehicle body and is decelerated by a planetary gear, has a differential lock specification on both the front and rear. The bead lock wheels that tightly sandwich the tires have a tread pattern with blocks wrapped around the sides. Large diameter tires have been installed.

Basic specifications

Overall length 435mm, Overall width 265mm, Overall height 215mm
Vehicle weight 2,309g (RC mechanism and battery not included)
Wheelbase: 288mm
Tread: 208mm front and rear

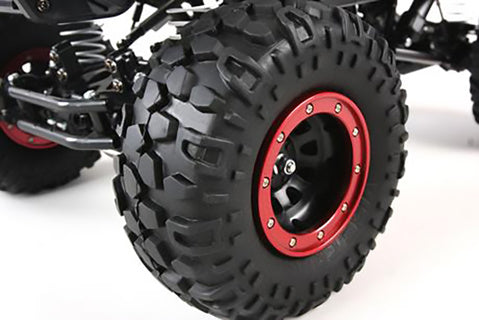

Tire width/diameter: 57/125mm front and rear

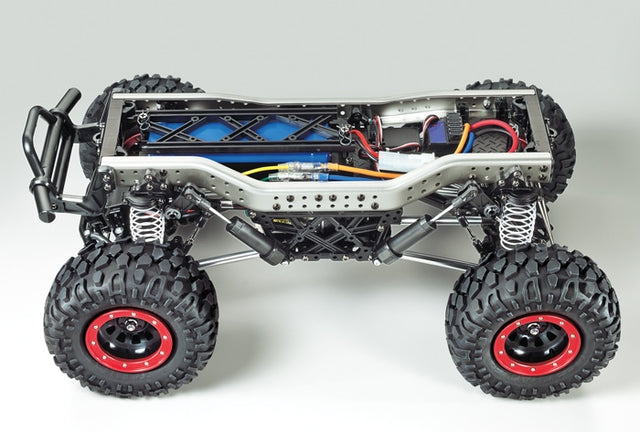

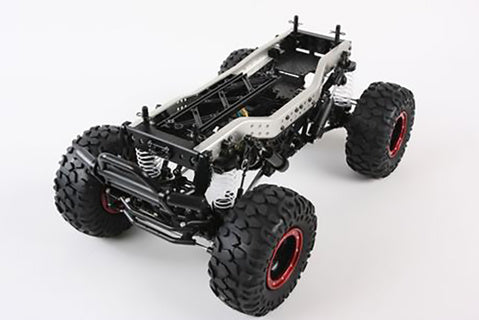

Frame: Highly rigid ladder frame that combines aluminium side members and resin cross members
Drive system: Vertical motor/shaft drive 4WD

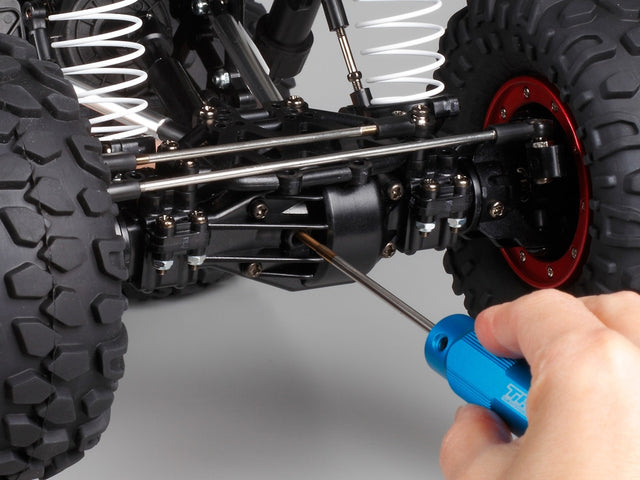

Differential gear system: Front and rear: 3 bevels (basic setting is differential lock)
Transfer: Planetary type

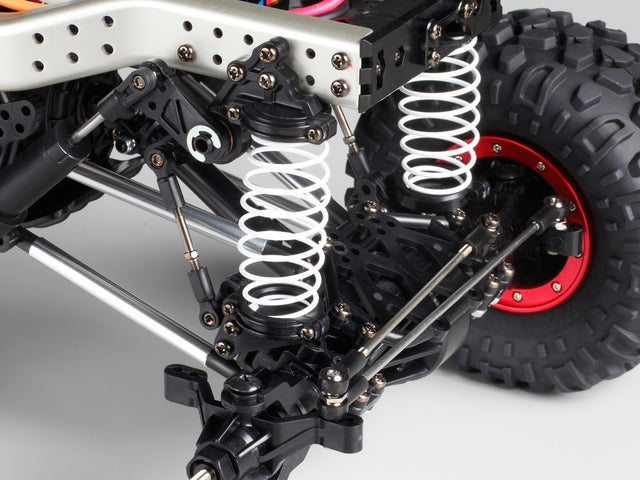

Suspension: 4-link rigid both front and rear
Damper: CVA oil damper both front and rear
Gear ratio: 32.4:1
Motor: RS540 type
