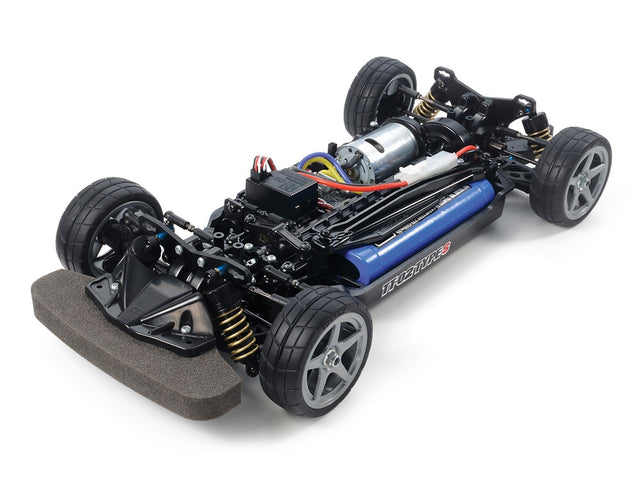

Tamiya TT-02S/TT02S/TT02 Type S Chassis Kit, Kit No. 58600

Click Here for Manual PDF Download

Click Here for Optional TT02S/TT-02S Parts Sheet

Rank-up chassis for beginners aiming to step up

Upgraded version of the TT-02, a shaft drive 4WD basic chassis with excellent drive efficiency. Each part can be set, making competing in races even more fun. Suspension adopts a reversible suspension arm. Uses a highly rigid metal suspension mount and sets the rear toe-in at 3 degrees. A CVA oil damper is attached to a dedicated 3.0mm thick FRP damper stay. The damper mounting angle and rebound stroke has been optimized to improve gap running performance. In addition, a turnbuckle shaft is used for the upper arm and steering linkage. The camber angle and front toe angle can be adjusted. In addition, the drive system has full bearing specifications. The cup joint and drive shaft are all made of metal. Power transmission efficiency has been further improved.

Main equipment parts:

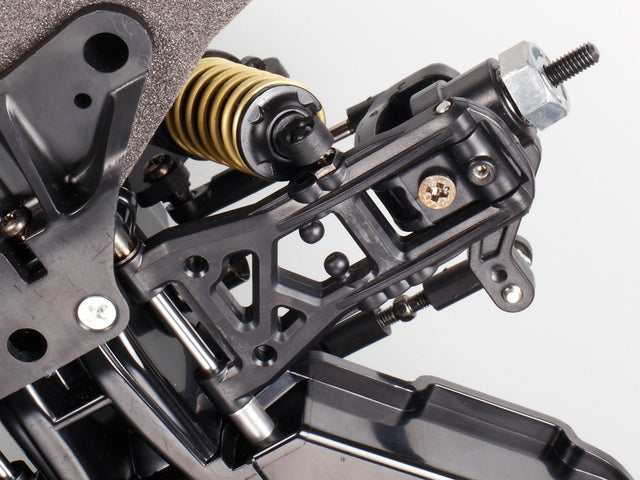

Reversible suspension arm
CVA oil damper

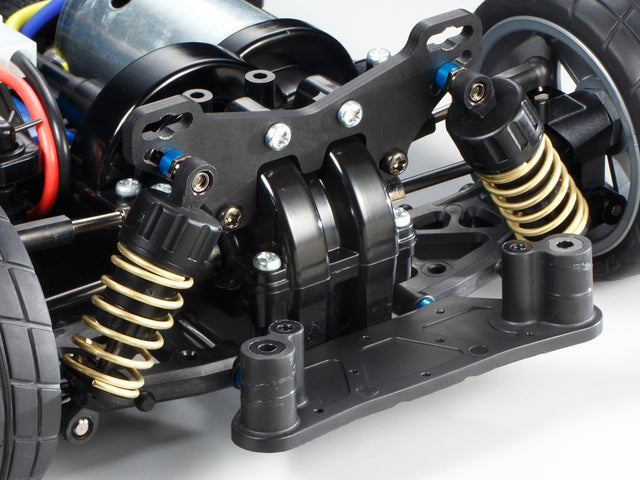

Exclusive FRP damper stay (front and rear)
Metal suspension mount ( Rear toe-in is set to 3 degrees)

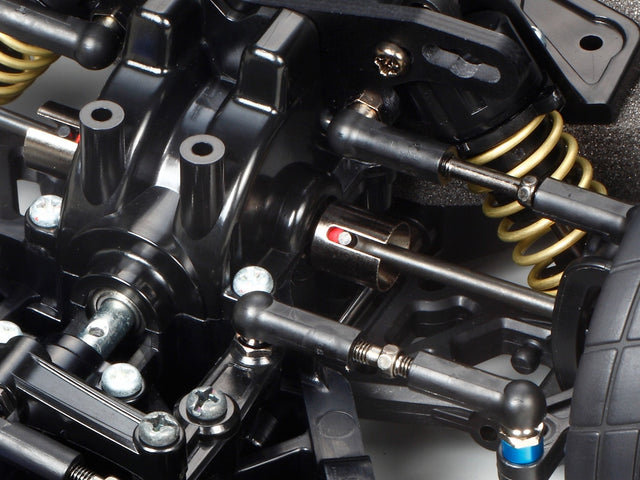

Wheel axle, gear box joint, and drive shaft are all metal
Drive system is full bearing specification
Turnbuckle shaft is used for upper arm and steering linkage
Metal die-cast hexagonal hub

Basic Specifications:

Chassis length 385mm, chassis width 187mm
Wheelbase 257mm
Tire width/diameter - 24/64mm both front and rear
Frame - bottom-shaped bathtub type
Drive system - vertical motor shaft drive 4WD
Differential gear - both front and rear made of resin 4 bevel type
Steering - 3-split tie rod type
Suspension - 4 wheels double wishbone
Damper - CVA oil damper
Gear ratio - Kit standard 8.27:1 (10 in combination with pinion sold separately from 11.38:1 to 7.28:1) Various gear ratios can be selected)
Motor - torque tune
Drive system is full bearing specification

Required separately:

Fine spec 2.4G electric RC drive set
Power source for transmitter (4 AA batteries)
Various 1/10 touring car bodies
ESC (Electronic Speed Controller)
