Tamiya 58605 Nismo R34 GT-R Z-tune Drift Spec with LEDs Assembly Kit, (TT02D/TT-02D) NIB

Sale
£193.99 £219.99
Tax included. Shipping calculated at checkout.
ISBN4950344065554

TTP Models

Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.

Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

**Stock availability depends on the UK importers (The Hobby Co.) Stock/Supply, Please message us for an estimated delivery time frame for this kit before placing your order.

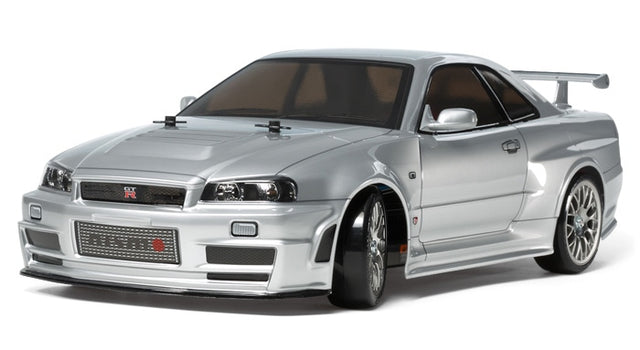

Tamiya Nismo R34 GT-R Z-tune Drift Spec with LED LIGHT SET, (TT02D/TT-02D)

Click Here for Manual PDF Download

Click Here for Body Set PDF Download

Click Here for Optional TT02D/TT-02D Parts Sheet

Drift as you wish with the ultimate GT-R

A limited edition of only 20 cars, each handmade by NISMO, who is in charge of NISSAN's racing department. At the time, it was called the ultimate GT-R. This is an electric radio control car assembly kit for the NISMO R34 GT-R Z-tune, which attracted a lot of attention at the 2005 Tokyo Auto Salon. The front and rear fenders are wider than the standard R34GT-R, and there are outlets on the sides. The front bumper with a front bumper and hood with a louvered outlet are realistically reproduced using polycarbonate. The chassis is a drift-tuned version of the popular TT-02, a basic shaft drive 4WD, for thrilling driving. You can have a lot of fun.

Drift-tune the TT-02, a basic shaft 4WD chassis

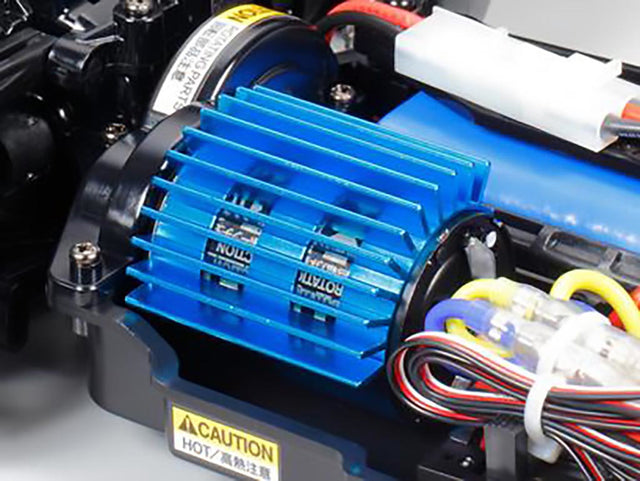

The chassis is The TT-02D is a shaft drive 4WD TT-02 tuned for drifting, which has excellent handling stability, high maintainability, and can be set up by changing parts such as two types of wheelbase and tread. Chrome-plated mesh wheels are set with 24mm wide resin tires for drifting. The double wishbone four-wheel suspension is equipped with a CVA oil damper super mini. Furthermore, the drive system is equipped with a full bearing to reduce loss, making it a sports model. The tuned motor is also equipped with an aluminium motor heat sink.

Basic Specifications:

Overall length 464mm, Width 184mm, Height 136mm
Wheelbase 257mm
Tire width/diameter: 24/63mm front and rear
Frame: bottom-shaped bathtub type
Drive system: Vertical motor/shaft drive 4WD
Differential gear: resin 4-bevel type both front and rear
Steering: 3-split tie rod type

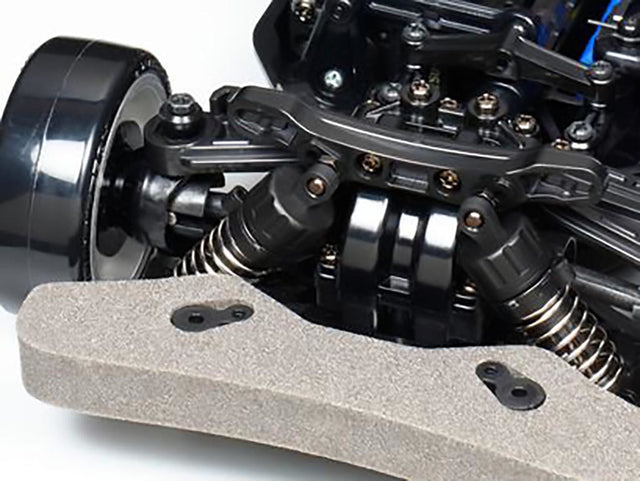

Suspension: 4-wheel double wishbone
Damper: CVA oil damper
Gear ratio: kit standard 8.27:1 (10 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinion)
Motor: 540 sports tune
Drive system is full bearing specification
LED Light Kit Included

Required separately:

2-channel radio
Steering servo
7.2volt battery & compatible charger
Tamiya PS paint
