Tamiya 58610 Aqroshot (DT03T/DT-03T) Assembly Kit, NIB **Pre-Order**

TTP Models

Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.

Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

**Stock availability depends on the UK importers (The Hobby Co.) Stock/Supply, Please message us for an estimated delivery time frame for this kit before placing your order.

Tamiya Aqroshot (DT03T/DT-03T) Assembly Kit, Kit No. 58610

Click Here for Manual PDF Download

Click Here for Optional DT03T/DT-03T Parts Sheet

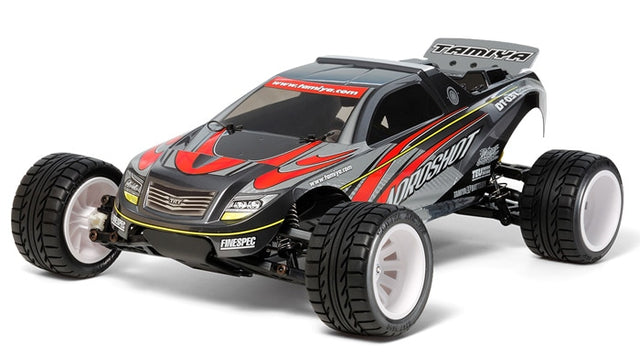

Enjoy dynamic driving with a stylish racing truck

This is an assembly kit for an electric radio-controlled truck that you can enjoy driving anywhere. The body is inspired by the low and stylish racing trucks that are popular in America. Made of lightweight and shock-resistant polycarbonate. A spoiler is also attached to the rear. Flashy markings that give a sense of speed are available as stickers to create a dynamic ride. In addition, the deep rim type wheels with different offsets at the front and rear have hollow radial patterns with a strong radial pattern. Equipped with rubber tires.

Uses DT-03T, a 2WD chassis with outstanding running stability

The chassis is a DT-03T with rear motor and rear wheel drive. It uses a lightweight and strong monocoque frame, and can be driven vertically. The battery is mounted from the top of the monocoque. It is also characterized by its slim form. The RC mechanism is also set on the centre line of the vehicle body, making it a highly balanced design. The wheelbase is set at 287mm, and the long wheelbase provides stable driving on any road surface. The suspension is a long-arm, double-wishbone, four-wheel independent suspension. In order to improve off-road performance, the front suspension arm is installed at a 25-degree angle, and the steering servo is also tilted at a 25-degree angle and placed upside down on the centre line of the vehicle. Equipped with: Creates smooth steering operation, and eliminates the tendency of left and right cornering with equal length left and right tie rods. In addition, the rear end gearbox is a sealed type that prevents sand and pebbles from entering, and has a built-in differential gear. Smooth cornering.

Basic specifications

Overall length 425mm, overall width 298mm, overall height 143mm
Wheelbase 287mm
Tread: Front 251mm, Rear 243mm
Tire width/diameter: 47/84mm front and rear
Frame: Monocoque type
Drive system: Rear wheel drive
Differential gear system: 3 bevel differential
Steering tie rod: 2 divisions
Suspension front and rear: double wishbone
Damper: friction both front and rear
Gear ratio: 9.28:1
Motor: RS540 type

Required separately

2-channel radio
Receiver
Servo
Battery/charger: Tamiya 7.2V Racing Pack or 7.2V Advance Pack various types
Tamiya PS Paint

Postage:

All of our kits come with FREE Tracked 24 hour delivery, with the option to upgrade to a Tracked 24 with signature (requiring to be signed for at point of delivery) - Any kit purchased under the *pre-order* title will be subject to delivery times from the UK importer into us, once received we will then post on to the customer - if you have any questions regarding delivery time, please contact us prior to placing your order.
