Tamiya 58614 Suzuki Jimny (JB23) Assembly Kit, (MF01X/MF-01X) NIB **Pre-Order**

TTP Models

Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.

Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

**Stock availability depends on the UK importers (The Hobby Co.) Stock/Supply, Please message us for an estimated delivery time frame for this kit before placing your order.

Tamiya Suzuki Jimny (JB23), (MF01X/MF-01X) Assembly Kit, Kit No. 58614

Click Here for Manual PDF Download

Click Here for Body Set PDF Download

Click Here for Optional MF01X/MF-01X Parts Sheet

VIDEO: Click here to see the model in action

Compact 4WD that you'll want to take out for fun.

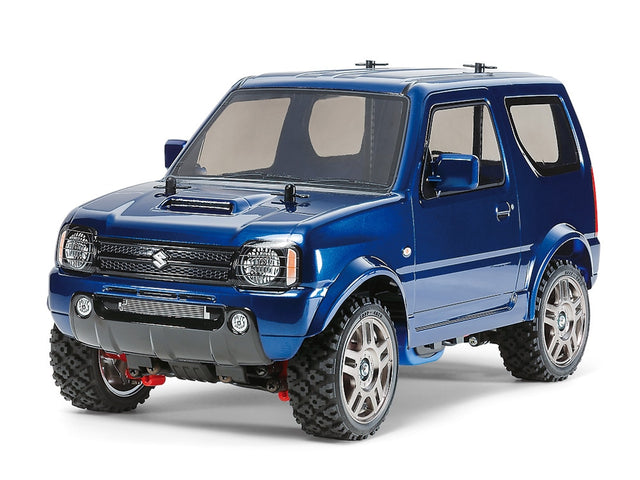

The Suzuki Jimny has a long history as a full-fledged 4WD off-roader light vehicle, and is gaining popularity not only in Japan but also overseas as a base for competition vehicles and customized cars. Revisions to light vehicle standards This is an assembly kit for the electric radio control car of the JB23 type, which was fully remodelled and released in October 1998.The dynamic and unique form that utilizes curves based on straight lines is realistically reproduced using polycarbonate. The door mirrors are separate parts. The front and rear lights, front grille, etc. are prepared with stickers to tighten the form.

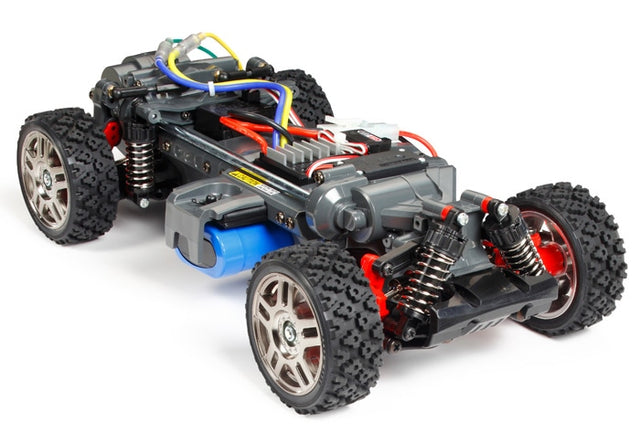

MF-01x Adopts a 4WD chassis of the same size as the M-Chassis

The shaft transmits power to the front wheels. Differential gears are installed in the front and rear sealed gear cases to achieve smooth cornering. Furthermore, the battery for driving is set almost in the centre of the vehicle body for good weight balance. The suspension is 4 independent double wishbone wheels equipped with friction dampers. Tires are equipped with Rally Block tires with a diameter of 69 mm and a width of 27mm.

Basic specifications

Total length 347mm, total width 170mm, total height 215mm
Wheelbase: 225 mm (M size)
Tire width/diameter: 27/69mm front and rear
Tread: 138mm front and rear

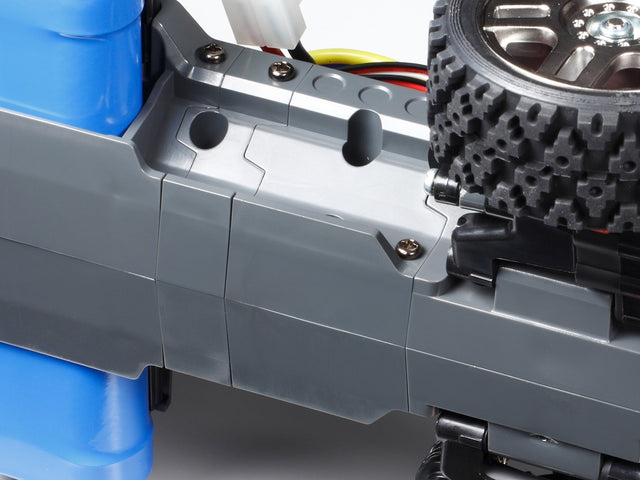

Frame: monocoque type
Drive system: shaft drive 4WD
Differential gear: 3 bevel type
Steering: 2-split tie rod type

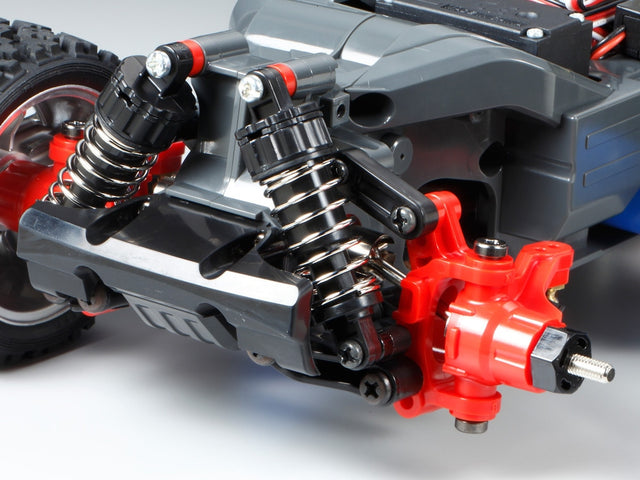

Suspension: double wishbone 4 independent wheels
Damper: Friction both front and rear
Gear ratio: 9.5:1

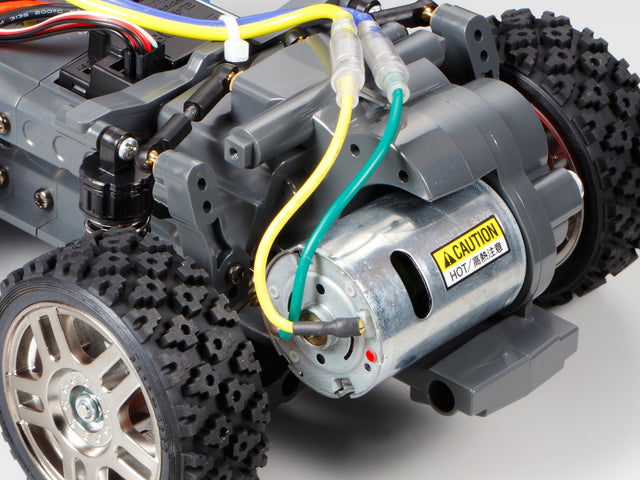

Motor: 540 type

Required Separately

2-channel radio
Steering servo
7.2volt battery & compatible charger
Tamiya PS paint
