Tamiya 58624 Mazda (MX5) Roadster Assembly Kit, (M-05/M05), NIB **Pre-Order**

TTP Models

Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.

Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

**Stock availability depends on the UK importers (The Hobby Co.) Stock/Supply, Please message us for an estimated delivery time frame for this kit before placing your order.

Tamiya Mazda (MX5) Roadster (M-05/M05 Chassis) Assembly Kit, Kit No. 58624

Click Here for Manual PDF Download

Click Here for Body Set PDF Download

Click Here for Optional M05/M-05 Parts Sheet

Enjoy plenty of nimble driving with an attractive body

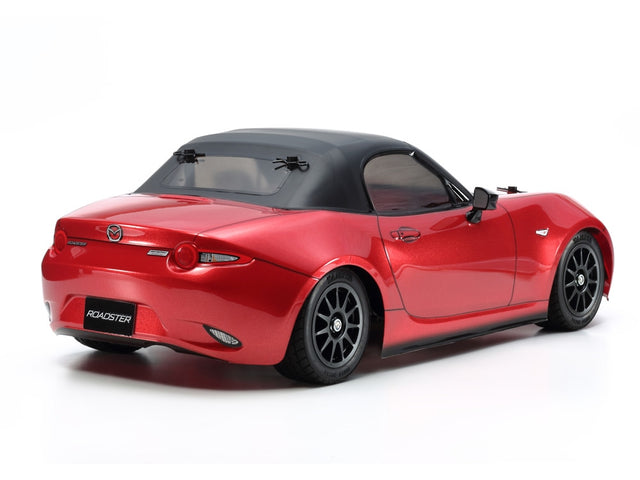

Mazda Roadster is a lightweight 2-seater sports car that has attracted the attention of fans around the world. This is an ND type electric radio control car assembly kit released in 2015. It features a compact, dynamic, and low trapezoidal form based on the concept of "How Do" design. The body, which reproduces the attractive style in the closed state, such as the raised front fender and narrowed rear end, is made of lightweight and shock-resistant polycarbonate. ｡The door mirrors are separate parts to tighten the form, and the front and rear lights and window frames that create a fearless look are prepared with stickers. Mask stickers for the windows are also included.

Well-balanced M-05 chassis that allows you to enjoy nimble driving. Adopted

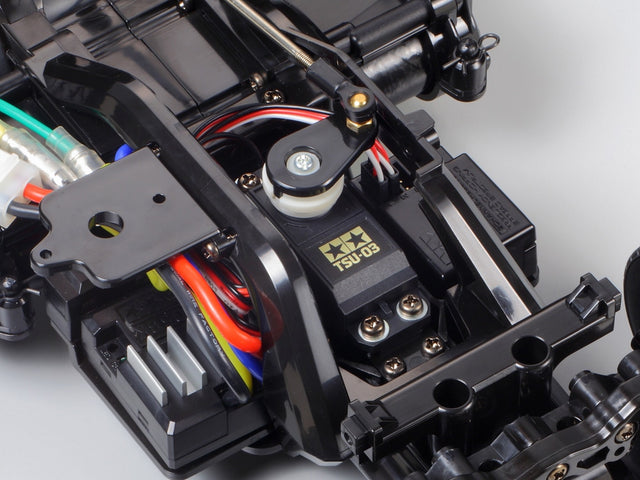

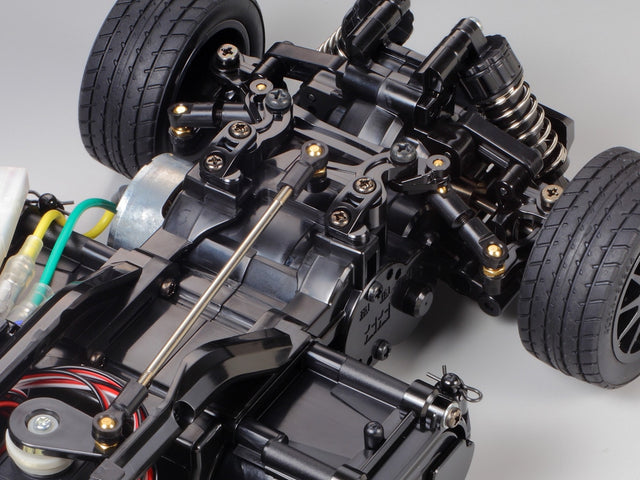

The chassis is a front-wheel drive M-05. The resin semi-monocoque frame is lightweight, slim, strong, and easy to assemble, and the gearbox, motor, battery for running, receiver, servo, and ESC are arranged from the front. Weight distribution has been optimized and the centre of gravity has been lowered. The suspension is a 4-wheel double wishbone with excellent ground contact. The steering is a 3-split wiper. Combined with the front suspension geometry, it provides high stability even when cornering. In addition, the chic gunmetal-coloured 11-spoke wheels are equipped with M chassis 60D radial tires with a tread pattern engraved, and an inner sponge is also built in.

Basic specifications

Overall length 378mm, Overall width 169mm, Overall height: 122mm
Wheelbase: 225mm
Tread front and rear: 138mm
Tire width/diameter: front and rear: 25/59mm
Frame: Monocoque type
Drive system: Front midship motor/front wheel drive
Differential gear: 3 bevels
Steering: 3-split tie rod type
Suspension: 4-wheel double wishbone
Damper: friction both front and rear
Gear ratio: 5.8:1
Motor: 540 type

Required Separately

2-channel radio
Steering servo
7.2volt battery & compatible charger
Electronic Speed Controller
Tamiya PS paint

Postage:

All of our kits come with FREE Tracked 24 hour delivery, with the option to upgrade to a Tracked 24 with signature (requiring to be signed for at point of delivery) - Any kit purchased under the *pre-order* title will be subject to delivery times from the UK importer into us, once received we will then post on to the customer - if you have any questions regarding delivery time, please contact us prior to placing your order.
