Tamiya 58629 Mercedes-Benz G 320 Cabrio Assembly Kit, (MF01X/MF-01X), NIB **Pre-Order**

TTP Models

Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.

Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

**Stock availability depends on the UK importers (The Hobby Co.) Stock/Supply, Please message us for an estimated delivery time frame for this kit before placing your order.

Tamiya Mercedes-Benz G 320 Cabrio, (MF01X/MF-01X) Assembly Kit, No. 58629

Click Here for Manual PDF Download

Click Here for Body Set PDF Download

Click Here for Optional MF01X/MF-01X Parts Sheet

A body that makes off-road driving fun

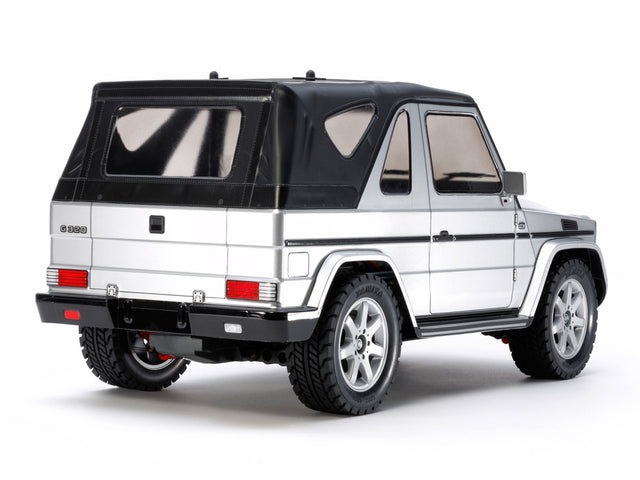

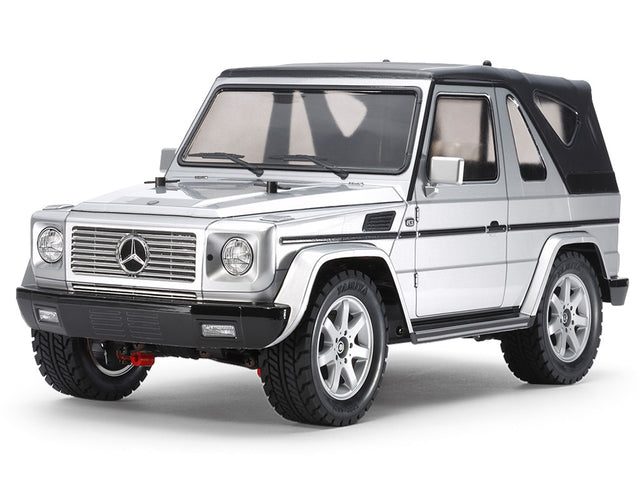

Among the Mercedes-Benz G-Class, known as a heavy-duty SUV with military vehicle roots, this 2-door model was produced from 1997 to 2001 and was equipped with an electric soft top. This is an electric RC car modelled after the body of the G 320 Cabrio. The angular form full of simplicity and robustness with a distinctive rear quarter window is reproduced with the top raised. Plated parts are used for the emblem on the front grill, Furthermore, door mirrors are also available to tighten up the form. The chassis uses the MF-01 , you can enjoy a wide range of fun from on-road to off-road.

MF-01X chassis, a compact shaft 4WD that expands the driving scene

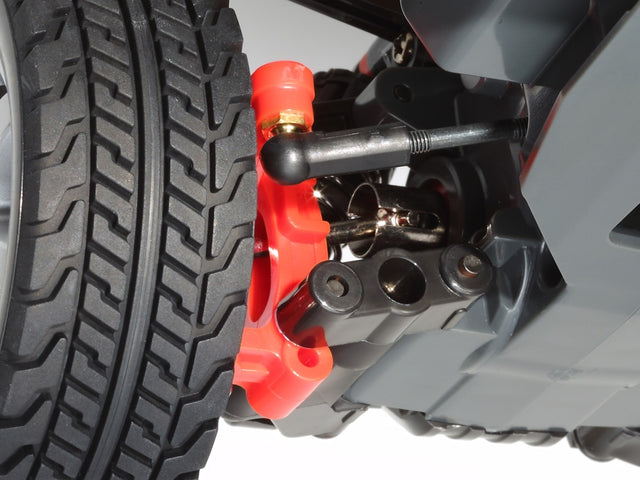

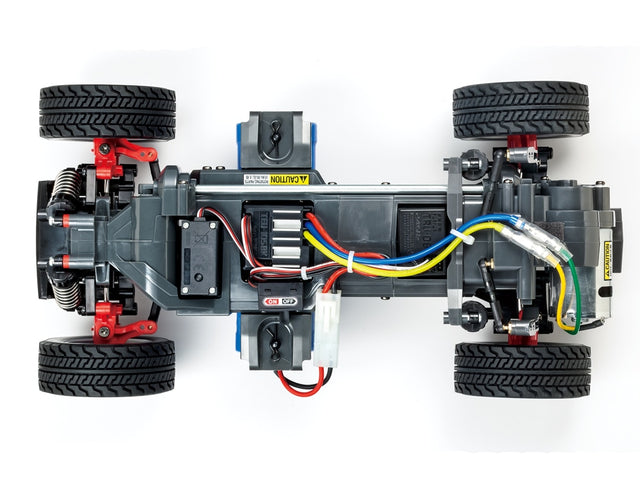

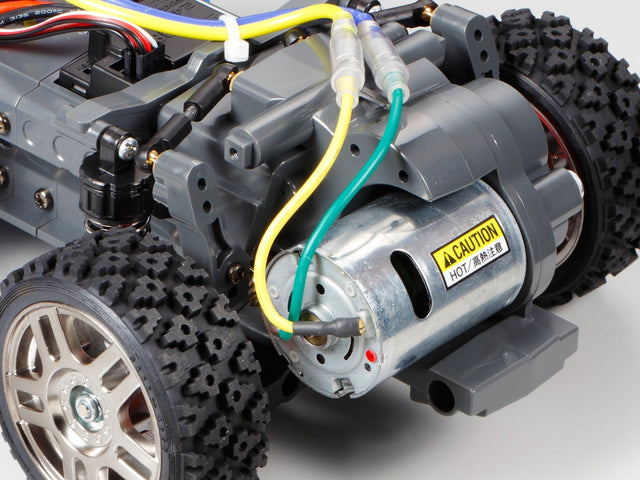

MF-01 is a compact 4WD chassis that allows you to enjoy driving on any road surface, from on-road to dirt. Adopts X. The high-strength left-right split monocoque frame integrates the gearbox for ease of assembly. The motor is mounted on the rear end, and the gears transmit power to the rear wheels, and the propeller shaft transmits power to the front wheels. Differential gears are installed in the front and rear sealed gear cases to achieve smooth cornering. Furthermore, the running battery is set almost in the centre of the vehicle body for good weight balance. The suspension is a double wishbone equipped with a friction damper. 4-wheel independent. Upright hub carrier adopted for M-05Ra chassis compatible with off-road driving.

Basic specifications

Overall length 385mm, overall width 177mm, overall height 180mm
Wheelbase: 239mm (L size)
Tires Width/diameter: 30/77mm front and rear
Tread: 145mm front and rear
Frame: monocoque type
Drive system: shaft drive 4WD
Differential gear: 3 bevel type
Steering: 2-split tie rod type
Suspension: double wishbone 4-wheel independent
Damper: Friction front and rear
Gear ratio: 9.5:1
Motor: 540 type

Required Separately

2-channel radio
Steering servo
7.2volt battery & compatible charger
Tamiya PS paint
