Tamiya 58634 Honda NSX (2016) Assembly Kit, (TT02/TT-02), NIB **Pre-Order**

TTP Models

Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.

Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

**Stock availability depends on the UK importers (The Hobby Co.) Stock/Supply, Please message us for an estimated delivery time frame for this kit before placing your order.

Tamiya Honda NSX (2016) (TT02/TT-02) Assembly Kit, Kit No. 58634

Click Here for Manual PDF Download

Click Here for Body Set PDF Download

Click Here for Optional TT02/TT-02 Parts Sheet

Use an RC car to anticipate the driving of a new generation hybrid sports car

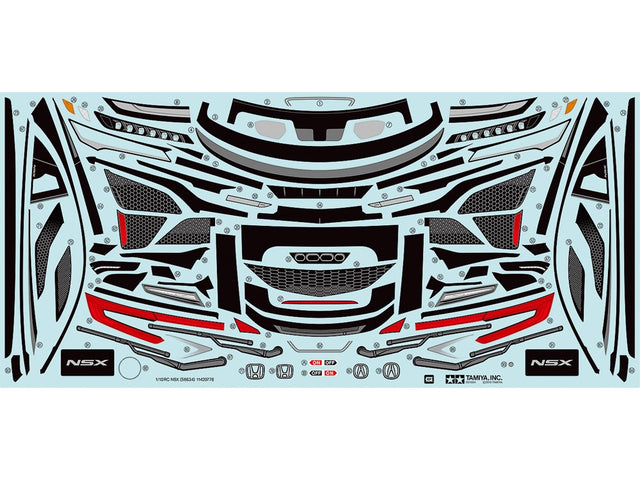

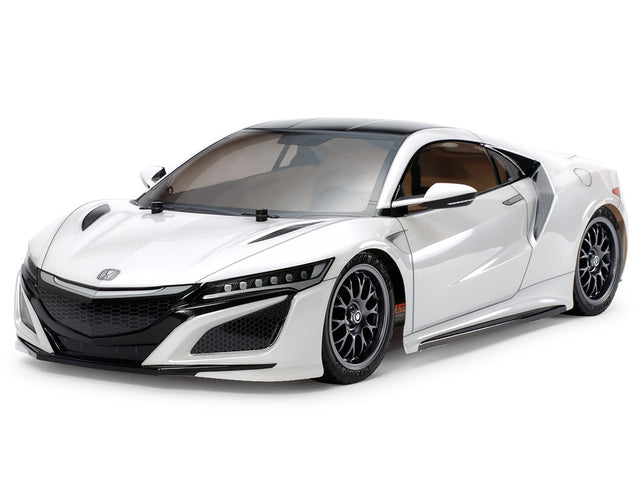

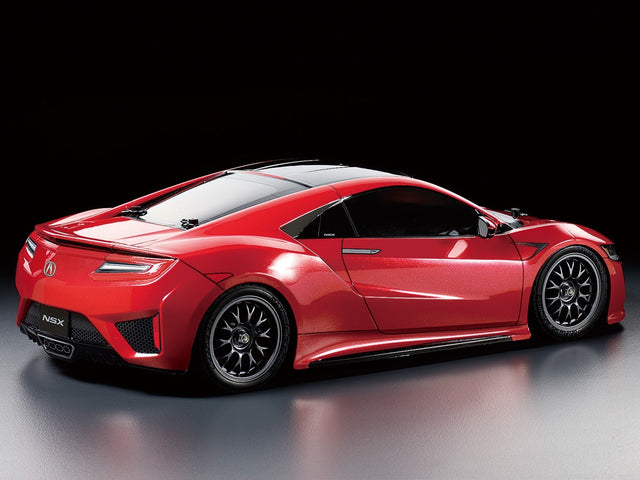

This is an electric radio control car assembly kit that reproduces the new NSX, which is exciting sports car fans all over the world. The low and wide form with improved aerodynamics is the same as the actual car. The body reproduced in is made of polycarbonate. The distinctive door mirror with long stay is a separate part. The six-light headlamp on each side called "Jewel Eye" has been realistically reproduced with a combination of a polycarbonate light case and sticker. Also, The window frames and intake mesh for each part are prepared with stickers to tighten the finish. The chassis uses the easy-to-handle and controllable basic shaft drive 4WD, TT-02

Shaft drive 4WD with excellent and fun settings, adopts TT-02 chassis

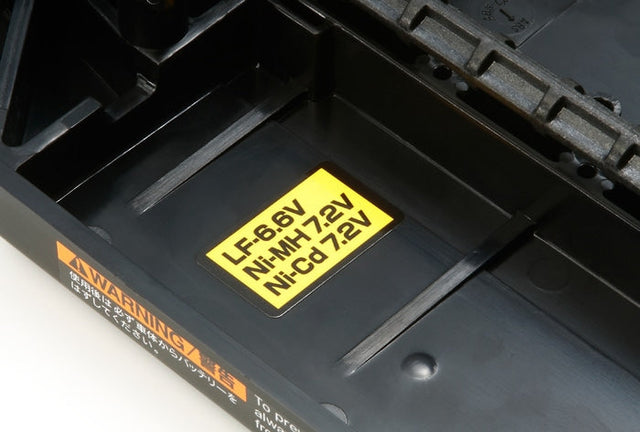

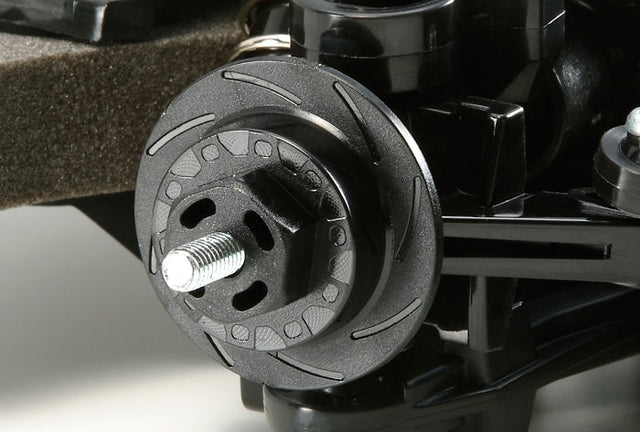

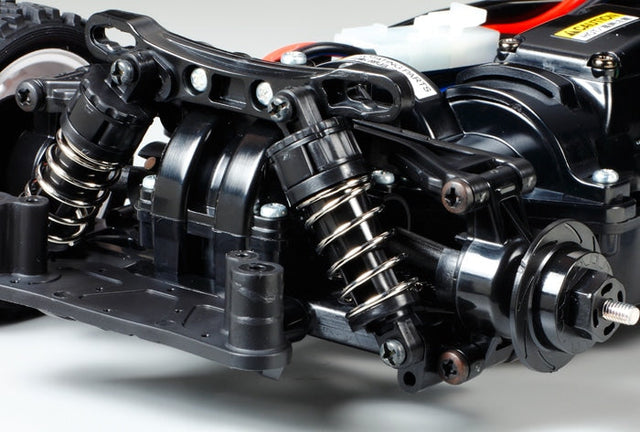

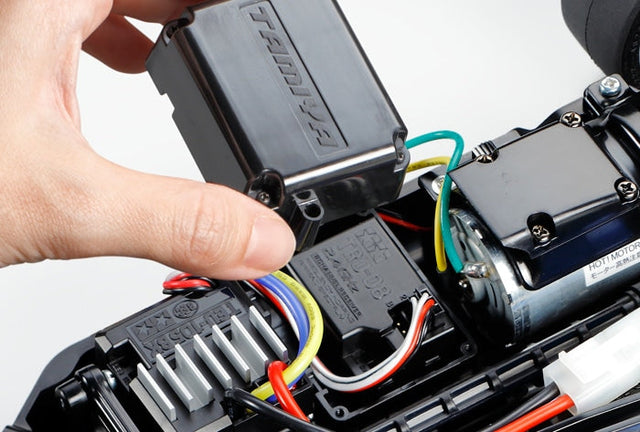

The chassis is a shaft drive 4WD TT-02. A well-balanced design with a vertical layout with the running battery on the left and the motor on the right provides excellent handling stability, and the suspension arm the left and right uprights are common, making it easy to assemble, and the top and bottom split gear case makes it highly maintainable. Furthermore, by rearranging parts, you can choose two types each of wheelbase, vehicle height, and tread, making 10 types. You can also enjoy settings such as the motor mount that allows you to choose from a wide range of gear ratios. Also, the wheel hub has a brake disc-like design and is equipped with a front bumper support that resembles the bumper of a real racing cart, giving it plenty of playfulness. Mesh wheels with a fearless gunmetal colour. The is equipped with racing radial tires with realistic tread patterns.

Basic specifications

Overall length 438mm, overall width 190mm, overall height 124mm
Wheelbase 257mm
Tire width/diameter: 27/67mm both front and rear
Frame: Boat bottom bathtub type
Drive system: Vertical motor/shaft drive 4WD

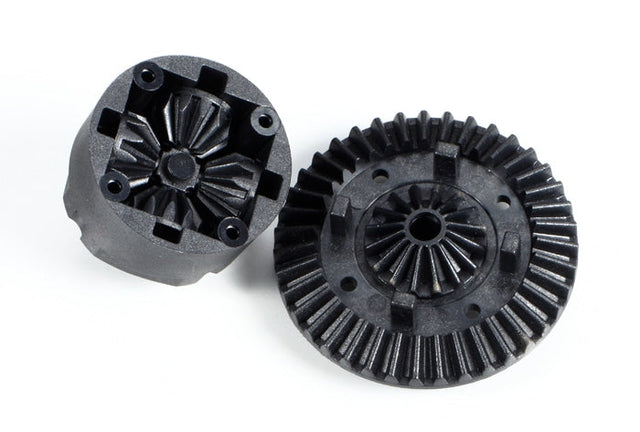

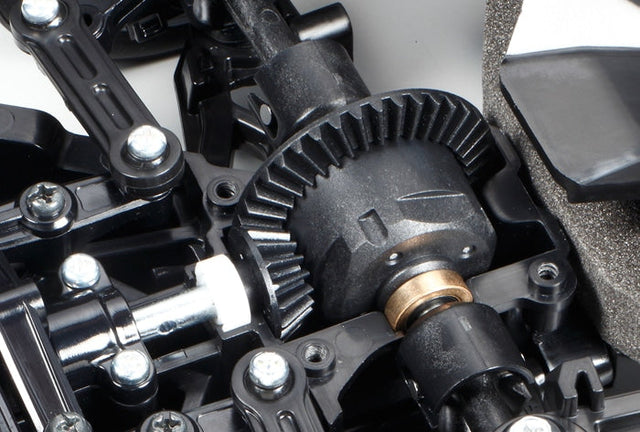

Differential gear: Front and rear resin 4-bevel type

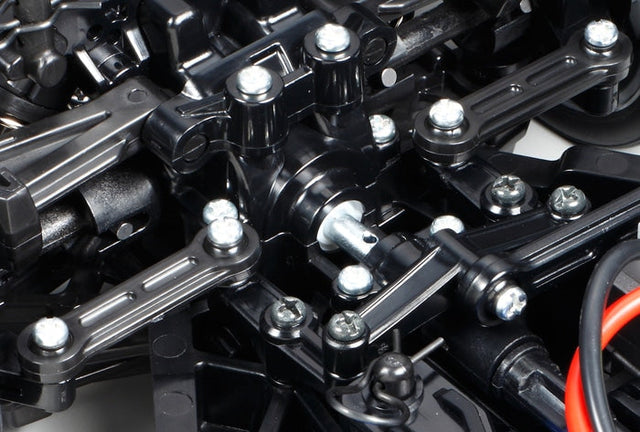

Steering: 3-split tie rod type
Suspension: 4-wheel double wishbone
Damper: Front and rear friction
Gear ratio: Kit standard 8.27:1 (10 types of gear ratios from 11.38:1 to 7.28:1 can be selected in combination with the pinion sold separately)

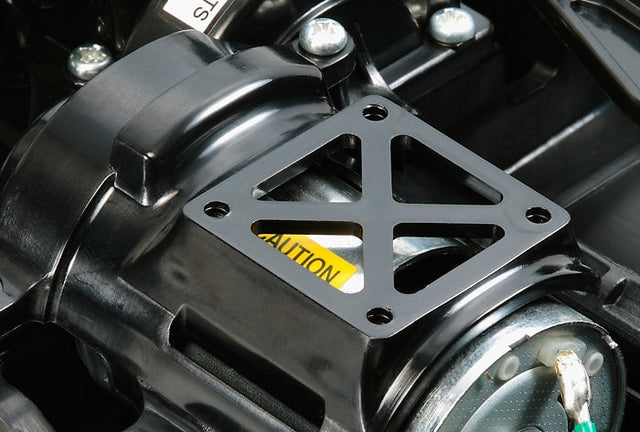

Motor: 540 type

Required separately:

2-channel radio
Steering servo
7.2volt battery & compatible charger
Tamiya PS paint
