Tamiya Kong Head 6×6 (G601/G6-01) Assembly Kit, Kit No. 58646

Click Here for Manual PDF Download

Click Here for Body Set PDF Download

Click Here for Optional G601/G6-01 Parts Sheet

VIDEO: Click here to see the model in action

Enthusiastic about its high rough road performance and impressive finish

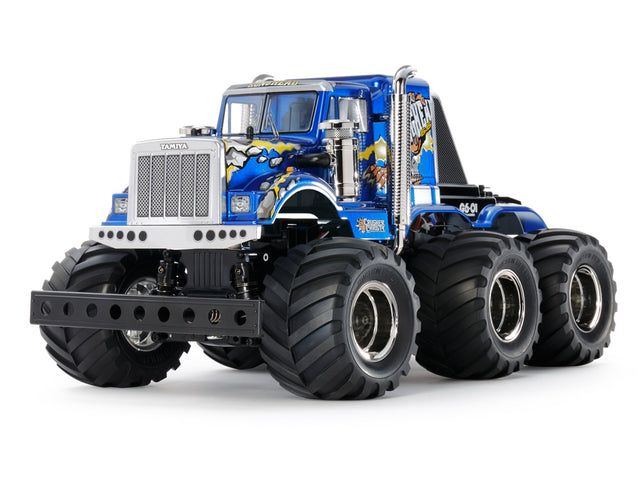

This is an assembly kit for an electric radio-controlled car that enjoys the high rough road performance and comical finish unique to 6-wheel drive. The body is made of polycarbonate and is inspired by the impressive American trailer head with its angular bonnet, upright radiator grille, and large sleeper cab. The air cleaner and muffler are separate plated parts for a high-scale finish. We also have a set of marking stickers with illustrations and graphics to create a custom mood, as well as masking stickers that are useful for painting windows. The chassis is a 6-wheel drive G6-01.The high driving force and long wheelbase unique to 6WD allow it to climb steep slopes of 40 degrees. The sight of the six big tires running, raising a cloud of dust, is overwhelmingly impressive. It is an attractive off-road machine that will make you fall in love with it, as it has high running performance and stability and can be driven anywhere.

G6-01 chassis that produces outstanding drivability unique to large-Diameter tires and 6-wheel drive

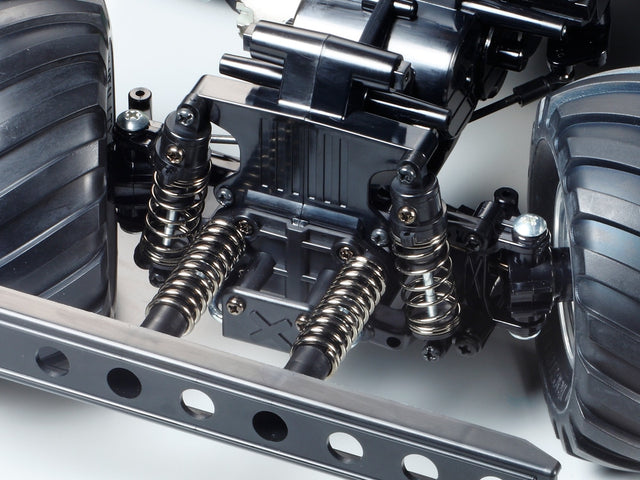

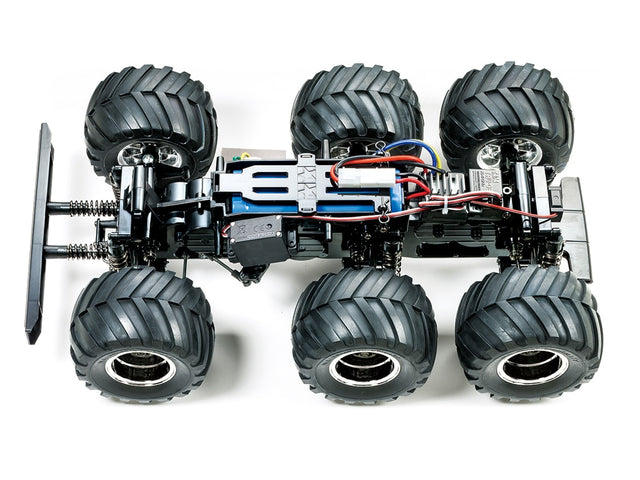

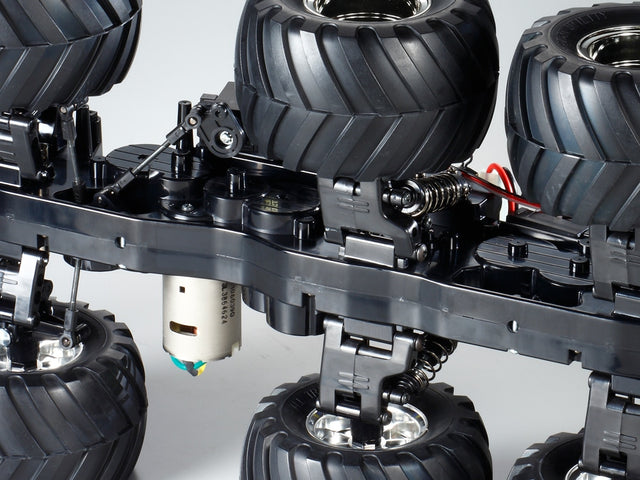

The chassis is G6-01 with gear drive 6WD. It features a slim yet strong monocoque frame and uses gears for power transmission. The motor is mounted behind the front axle, and power is transmitted to the front and second axle using gears. The gear train 6WD system also uses gears to transmit power from the 2nd to the 3rd axle. It exhibits outstanding driving force and can be run anywhere. In addition, the gear case is integrated into the frame. It is a sealed type that shuts out sand and pebbles, and is equipped with differential gears on each of the three axes to create smooth cornering. The suspension is independent on all wheels with double wishbones equipped with friction dampers. The chrome-plated deep rim wheels are equipped with large tires with a diameter of 113mm. The steering servo is set on the left side of the chassis, and the equal length 2-split tie rod provides smooth steering characteristics. Furthermore, it is also possible to steer the third axis by changing the suspension parts and using a 4WS compatible RC radio.

Basic specifications:

Overall length: 453mm, overall width: 270mm, overall height: 234mm
Wheelbase: 173+126mm
Tread: 200mm for all 3 axles
Tire width/diameter: 68mm/113mm for all 6 wheels
Frame: Monocoque type
Drive system: Gear drive 6WD
Differential gear System: 3 bevel differential
Steering tie rod: equal length split into 2
Suspension: double wishbone all wheels independent
Gear ratio: 18.03:1
Motor: RS540 type

Required separately:

2-channel radio
Steering servo
7.2volt battery & compatible charger
Tamiya PS paint
