Tamiya M07/M-07 Concept Chassis Kit, Kit No. 58647

Click Here for Manual PDF Download

Click Here for Optional M07/M-07 Parts Sheet

A compact chassis kit that pursues maneuverability and driving pleasure

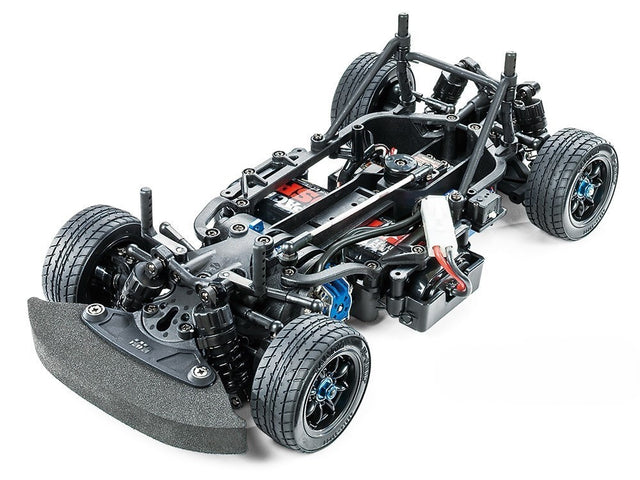

The M-07 CONCEPT is a compact chassis that pursues the light running performance and manoeuvrability that can only be achieved with front-wheel drive, and is also particular about maintainability. The main frame is a monocoque type that combines a resin lower deck and upper frame to ensure rigidity. What's more, when replacing the differential gear, the number of disassembly points around the suspension is minimized, and maintenance is easy as it can be accessed from the bottom. Suspension is 4 independent double wishbone wheels equipped with CVA oil dampers. It is a specially designed product with a longer arm and linkage, and is also characterized by a wide range of settings. Furthermore, we have achieved a loss-free drive system by using full bearing specifications, oil-filled gear differentials, and universal shafts. In addition, two types of wheelbase can be selected: 239mm and 225mm. I'm also looking forward to choosing and installing a body for the M chassis that is available in abundance.

Main equipment parts:

Monocoque type frame with upper and lower split type

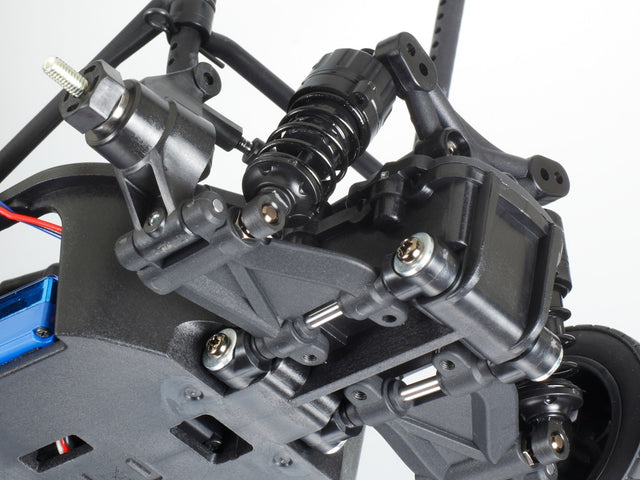

Long suspension arm with wide setting width
CVA oil damper
Full bearing specification

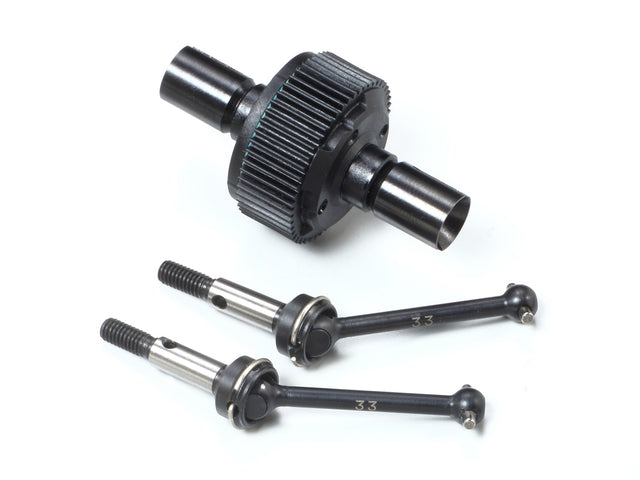

Oil-filled gear differential
Universal shaft
High torque servo saver

Basic Specifications:

Chassis length 332mm (Including bumper)
Chassis width 164mm
Two types of wheelbase 239mm and 225mm can be selected
Frame: monocoque type with upper and lower split
Drive system: front midship motor, front wheel drive
Differential gear: oil-filled gear differential

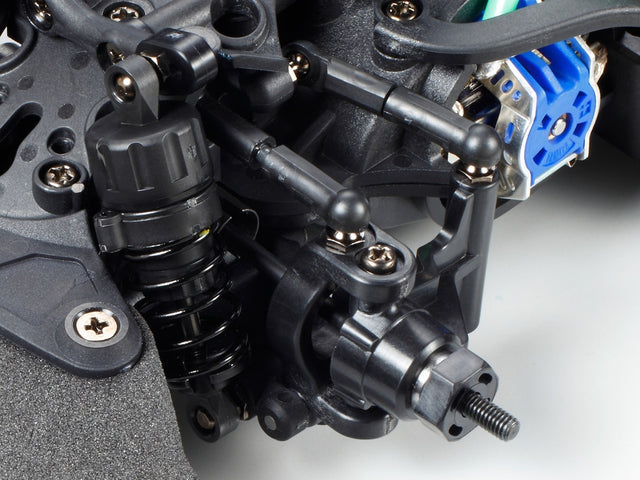

Steering: 3 Split tie rod type
Suspension: 4-wheel double wishbone
Damper: CVA oil damper

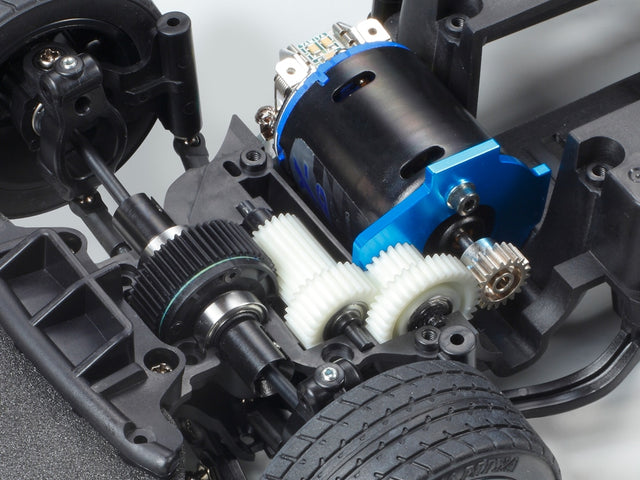

Gear ratio: 9 types from 7.22:1 to 4.81:1 (5.78:1 when using the 20T pinion included in the kit)

Required separately:

Fine spec 2.4G electric RC drive set
Power source for transmitter (4 AA batteries)
Various 1/10 touring car bodies
ESC (Electronic Speed Controller)
Motor
