Tamiya 58648 Mazda RX-7 (FD3S) Drift Spec Assembly Kit (TT02D/TT-02D), NIB **Pre-Order**

TTP Models

Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.

Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

**Stock availability depends on the UK importers (The Hobby Co.) Stock/Supply, Please message us for an estimated delivery time frame for this kit before placing your order.

Tamiya Mazda RX-7 (FD3S) Drift Spec (TT02D/TT-02D Chassis), Assembly Kit, Kit No. 58648

Click Here for Manual PDF Download

Click Here for Body Set PDF Download

Click Here for Optional TT02D/TT-02D Parts Sheet

Dynamic form full of dynamism that shines when drifting.

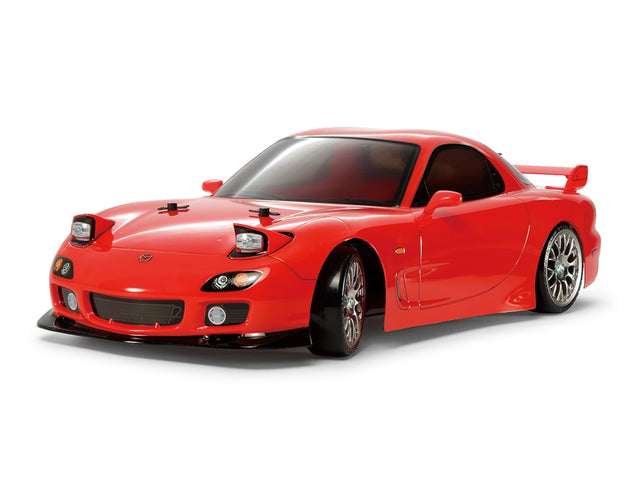

As a pure sports car equipped with a rotary engine, the Mazda RX-7 attracts enthusiastic fans even now that production has ended. Among them, the third generation model FD3S is also very popular as a drift machine. This is an electric radio control car assembly kit that reproduces the FD3S on a 1/10 scale. The body is made of polycarbonate and realistically reproduces the dynamic curved form, including the low hood, compact cabin, and smooth, firm front and rear fenders. The pop-up light case, door mirrors, and rear wing are made of resin and add to the style. The chassis uses a shaft drive 4WD TT-02D that allows you to easily enjoy drifting.

Drift-tune the TT-02, a basic shaft 4WD chassis

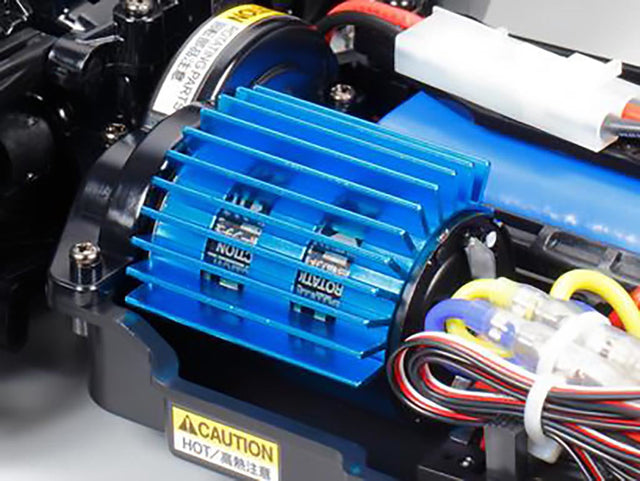

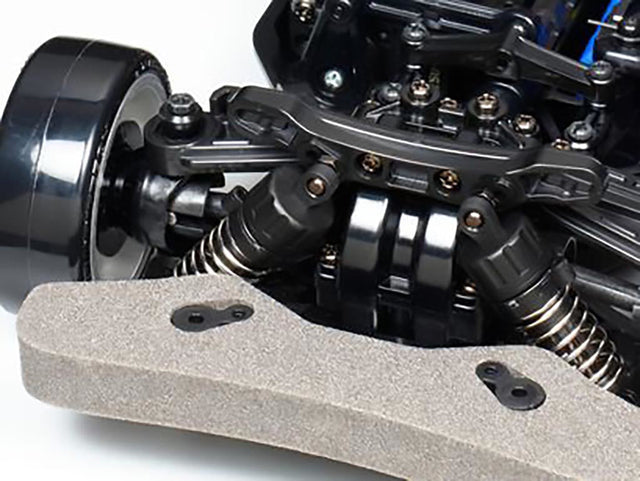

The chassis is The TT-02D is a shaft drive 4WD TT-02 tuned for drifting, which has excellent handling stability, high maintainability, and can be set up by changing parts such as two types of wheelbase and tread. Chrome-plated mesh wheels are set with 24mm wide resin tires for drifting. The double wishbone four-wheel suspension is equipped with a CVA oil damper super mini. Furthermore, the drive system is equipped with a full bearing to reduce loss, making it a sports model. The tuned motor is also equipped with an aluminium motor heat sink.

Basic Specifications:

Overall length 449mm, Width 185mm, Height 124mm
Wheelbase 257mm
Tire width/diameter: 24/63mm front and rear
Frame: bottom-shaped bathtub type
Drive system: Vertical motor/shaft drive 4WD
Differential gear: resin 4-bevel type both front and rear
Steering: 3-split tie rod type
Suspension: 4-wheel double wishbone
Damper: CVA oil damper
Gear ratio: kit standard 8.27:1 (10 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinion)
Motor: 540 sports tune
Drive system is full bearing specification

Required separately:

2-channel radio
Steering servo
7.2volt battery & compatible charger
Tamiya PS paint

Postage:

All of our kits come with FREE Tracked 24 hour delivery, with the option to upgrade to a Tracked 24 with signature (requiring to be signed for at point of delivery) - Any kit purchased under the *pre-order* title will be subject to delivery times from the UK importer into us, once received we will then post on to the customer - if you have any questions regarding delivery time, please contact us prior to placing your order.
