Tamiya 58649 NSU TT Jägermeister Assembly Kit, (M-05/M05), NIB **Discontinued**

TTP Models

Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.

Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

Tamiya NSU TT Jägermeister (M-05/M05 Chassis) Assembly Kit, Kit No. 58649

Click Here for Manual PDF Download

Click Here for Body Set PDF Download

Click Here for Optional M05/M-05 Parts Sheet

Reviving the compact sedan of yesteryear that was active in European races

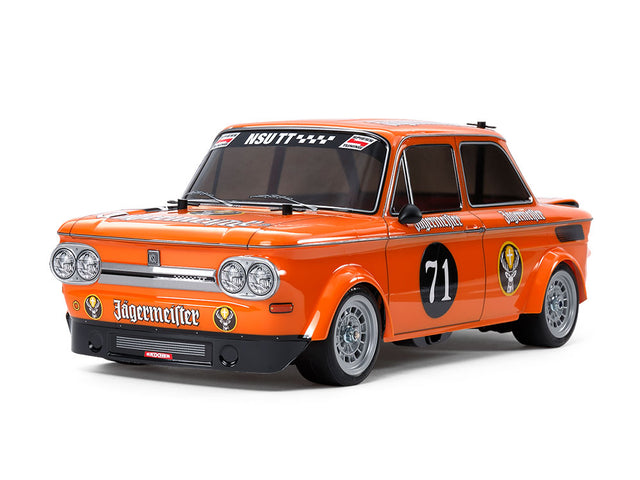

This is an electric radio control car assembly kit that reproduces the NSU TT, which was active mainly in European races from the late 1960s to the early 1970s. The compact and boxy 2-door sedan style, with the rear hood raised to cool the engine, is realistically reproduced using polycarbonate. Tighten up your style by using the door mirror as a separate part. We also have stickers for the Jägermeister logo and bib, as well as the headlights, window frames, mouldings that go around the side of the body, and wipers.

Well-balanced M-05 chassis that allows you to enjoy nimble driving. Adopted

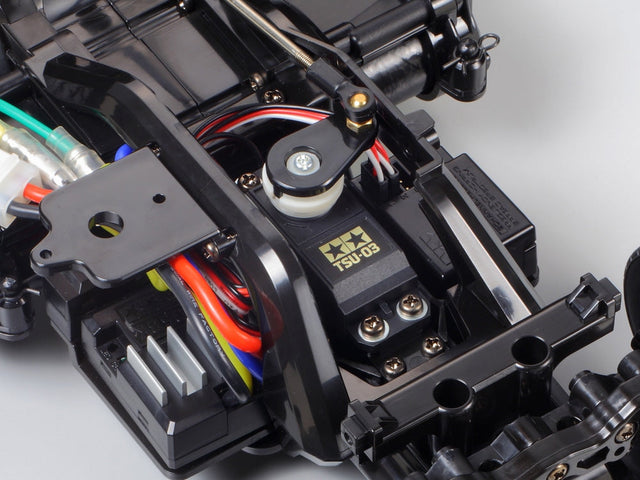

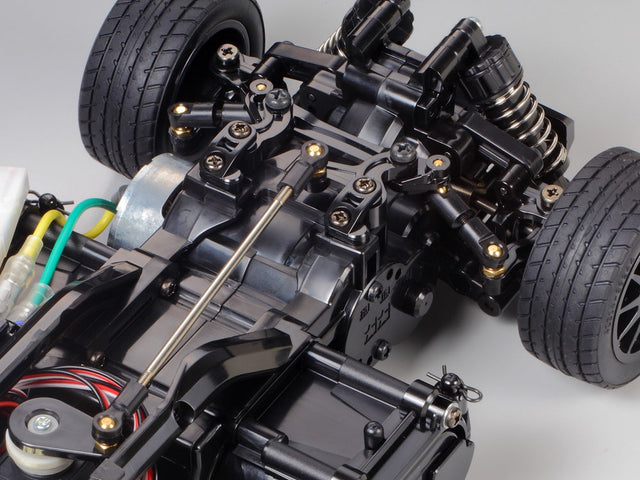

The chassis is a front-wheel drive M-05. The resin semi-monocoque frame is lightweight, slim, strong, and easy to assemble, and the gearbox, motor, battery for running, receiver, servo, and ESC are arranged from the front. Weight distribution has been optimized and the centre of gravity has been lowered. The suspension is a 4-wheel double wishbone with excellent ground contact. The steering is a 3-split wiper. Combined with the front suspension geometry, it provides high stability even when cornering. The classic wheel design and slick tires with built-in inner sponge give it a racing feel.

Basic specifications

Overall length 393mm, Overall width 171mm, Overall height: 143mm
Wheelbase: 239mm
Tread front and rear: 138mm
Tire width/diameter: front and rear: 25/55mm
Frame: Monocoque type
Drive system: Front midship motor/front wheel drive
Differential gear: 3 bevels
Steering: 3-split tie rod type
Suspension: 4-wheel double wishbone
Damper: friction both front and rear
Gear ratio: 5.8:1
Motor: 540 type

Includes Tamiya THW-1060 ESC.

Required Separately:

2-channel radio
Steering servo
7.2volt battery & compatible charger
Tamiya PS paint
