Tamiya 58651 NISSAN Skyline GT-R (R32) Drift Spec Assembly Kit, (TT02D), NIB **Pre-Order**

TTP Models

Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.

Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

**Stock availability depends on the UK importers (The Hobby Co.) Stock/Supply, Please message us for an estimated delivery time frame for this kit before placing your order.

Tamiya NISSAN Skyline GT-R (R32) Drift Spec (TT02D/TT-02D Chassis) Assembly Kit, Kit No. 58651

Click Here for Manual PDF Download

Click Here for Body Set PDF Download

Click Here for Optional TT02D/TT-02D Parts Sheet

Enjoy drifting in the ever-popular R32 Skyline GT-R

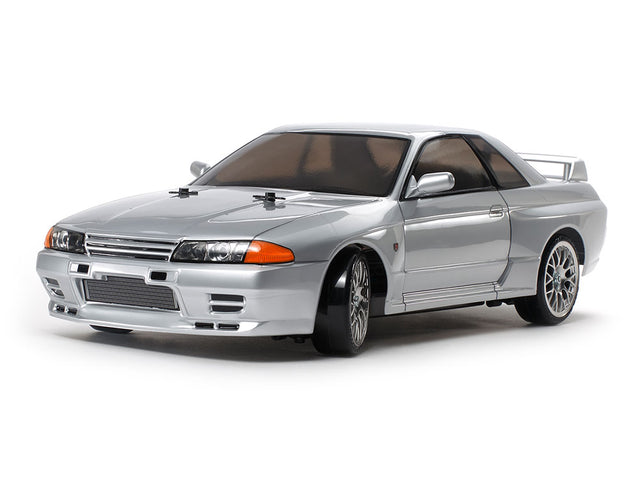

Equipped with an in-line 6-cylinder twin-turbo engine that produces 280 horsepower and electronically controlled 4WD, the Nissan was announced in May 1989 and attracted a lot of attention. Skyline GT-R (R32).It continued to evolve into the R33 type and R34 type, but the popularity of the R32 type never waned. The R32 type, which has a deep-rooted popularity among the Skyline GT-Rs, This is a reproduction electric radio control car assembly kit. The fearless style with the front and rear fenders extended and air intakes opened in the bumper is realistically reproduced using polycarbonate. In addition, the door mirrors and rear wing are separate parts to tighten the form. The chassis uses the shaft drive 4WD TT-02D, allowing you to easily enjoy thrilling drift driving.

Drift-tune the TT-02, a basic shaft 4WD chassis

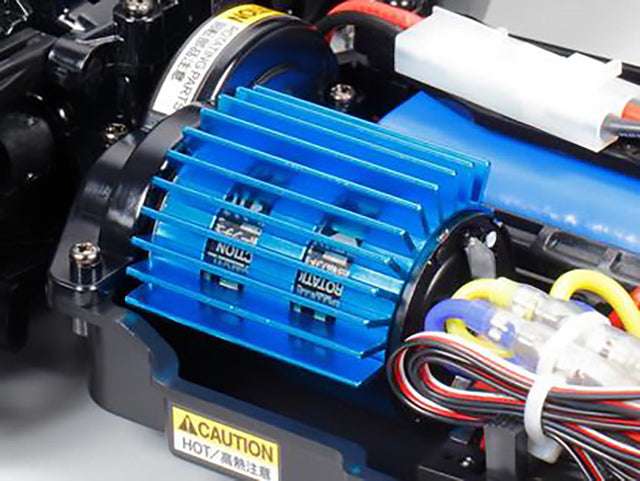

The chassis is The TT-02D is a shaft drive 4WD TT-02 tuned for drifting, which has excellent handling stability, high maintainability, and can be set up by changing parts such as two types of wheelbase and tread. Chrome-plated mesh wheels are set with 24mm wide resin tires for drifting. The double wishbone four-wheel suspension is equipped with a CVA oil damper super mini. Furthermore, the drive system is equipped with a full bearing to reduce loss, making it a sports model. The tuned motor is also equipped with an aluminium motor heat sink.

Basic Specifications:

Overall length 452mm, Width 187mm, Height 132mm
Wheelbase 257mm
Tire width/diameter: 24/63mm front and rear
Frame: bottom-shaped bathtub type
Drive system: Vertical motor/shaft drive 4WD
Differential gear: resin 4-bevel type both front and rear
Steering: 3-split tie rod type

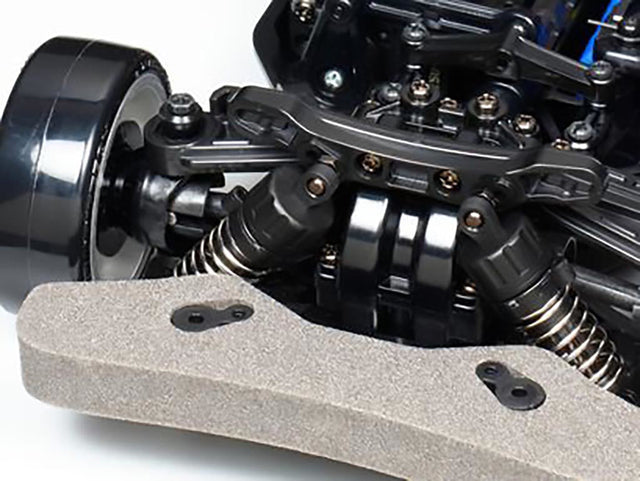

Suspension: 4-wheel double wishbone
Damper: CVA oil damper
Gear ratio: kit standard 8.27:1 (10 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinion)
Motor: 540 sports tune
Drive system is full bearing specification

Required separately:

2-channel radio
Steering servo
7.2volt battery & compatible charger
Tamiya PS paint
