Tamiya 58652 F104 PROII (with type 2017 body) Assembly Kit, NIB **Pre-Order**

TTP Models

Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.

Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

**Stock availability depends on the UK importers (The Hobby Co.) Stock/Supply, Please message us for an estimated delivery time frame for this kit before placing your order.

Tamiya F104 PROII (with Type 2017 Body) Assembly Kit, Kit No. 58652

Click Here for Manual PDF Download

Click Here for Body Set PDF Download

Click Here for Optional F104PRO II/

F104PRO 2 Parts Sheet

Body that incorporates the latest trends and drives brilliantly.

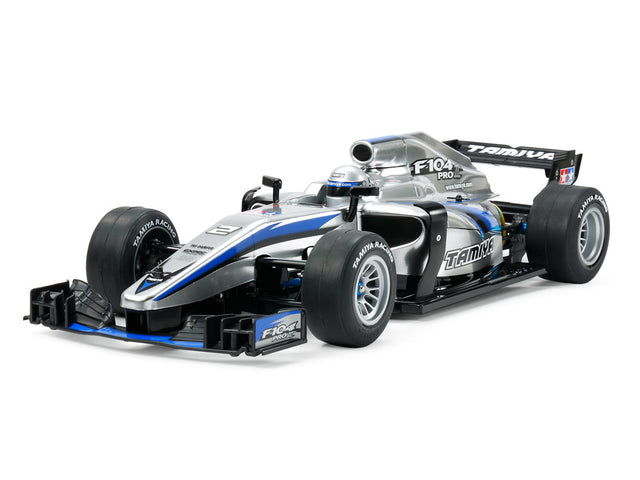

The 2017 F1 Grand Prix saw major regulation changes. This is an electric RC formula car assembly kit equipped with an original body that fully reproduces the new style. The polycarbonate body features a sharp nose and large side pontoons. The barge board, vertical wing, and induction pod are also available as separate parts. Furthermore, by dividing the lower part of the side pontoons, it is possible to reproduce the narrowing of the body even further. In addition, the complex front wing with a swept back angle made up of 3D curved surfaces and the low-mounted rear wing are both impressive and have a high scale feel.

F104 PROII chassis that further refines the sharp running of direct drive 2WD

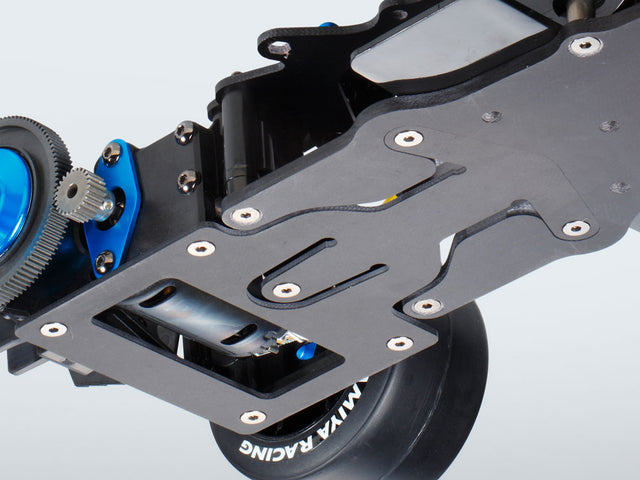

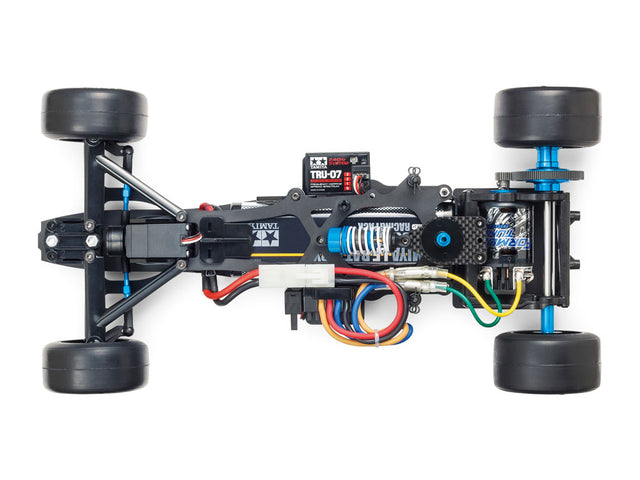

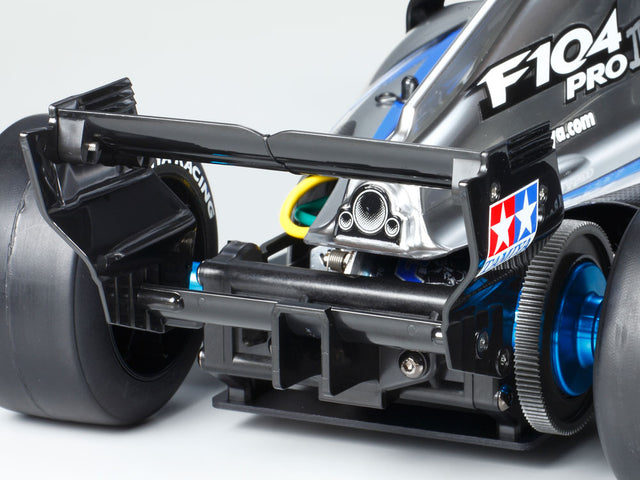

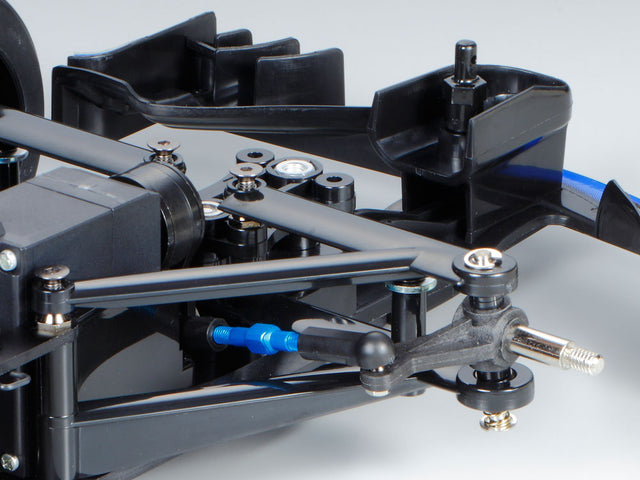

The chassis is based on the F104, a vertical battery direct drive 2WD that uses 3P suspension on a lightweight and simple double deck frame. We added modifications to each part to improve the ride. The front suspension is a link type using suspension arms with a flat cross-section, and is independent on the left and right using king pins/coil springs. The rear uses a rigid type that controls the T-bar with a friction plate and TRF damper. Equipped with an aluminium ball differential that allows tires to be changed without disassembling the differential, and full bearing specifications. We also paid special attention to drive efficiency and maintainability. In addition, the tires are made of textured hollow rubber, and an inner sponge is also available.

Basic Specifications:

Overall length 440mm, overall width 180mm, overall height 88mm
Wheelbase 270mm
Tread: F: 150mm R: 145mm
Tire width/diameter: F: 30/64mm R: 35/64mm
Frame: FRP double deck
Drive system: Horizontal motor rear direct drive 2WD
Differential gear: Ball differential
Steering: equal length 2-split tie rod type
Suspension: Front: left and right independent with king pin/coil spring Rear: T-bar rigid
Gear ratio:4.16:1 (25T pinion) /104T spur gear used)
Motor: 540 type

Required separately:

2-channel radio
Steering servo
ESC (Electronic Speed Controller)
7.2volt battery & compatible charger
Tamiya PS paint

Postage:

All of our kits come with FREE Tracked 24 hour delivery, with the option to upgrade to a Tracked 24 with signature (requiring to be signed for at point of delivery) - Any kit purchased under the *pre-order* title will be subject to delivery times from the UK importer into us, once received we will then post on to the customer - if you have any questions regarding delivery time, please contact us prior to placing your order.
