Tamiya 58682 1991 Audi V8 Touring Assembly Kit, (TT-02/TT02), NIB
Sale
£119.00
£150.00
TTP Models
Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.
Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

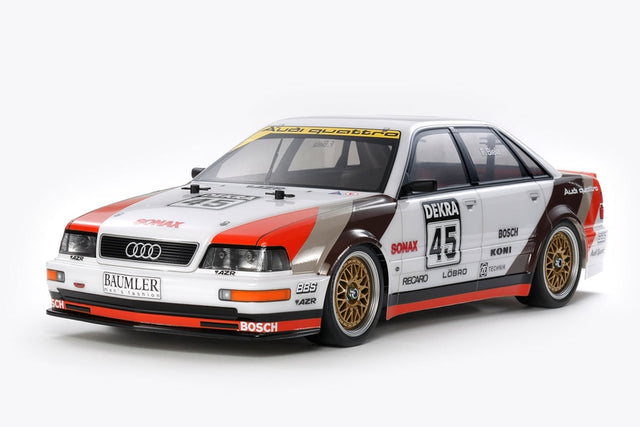

Tamiya 1991 Audi V8 Touring Assembly Kit (TT-02/TT02 Chassis) Assembly Kit, Kit No. 58682
This Tamiya R/C kit recreates the classic Audi DTM racing car as raced during the DTM 1991 season. The Audi V8 touring car had a 456hp 3.6-liter V8 which graced the DTM (Deutsche Tourenwagen Masters) racing series in Germany. In that season, it took four victories overall and carried Frank Biela to the drivers’ title.
Adaptable TT-02 Chassis offers balanced shaft driven 4WD
The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.
**For a complete list of option parts/hop-ups available for this chassis please message us a we can assist.
Kit Specifications:
Scale: 1:10 RC Assembly Kit
Wheelbase: 251mm
Length: 488mm, Width: 205mm, Height: 125mm.
Wheelbase: 251mm
Length: 488mm, Width: 205mm, Height: 125mm.

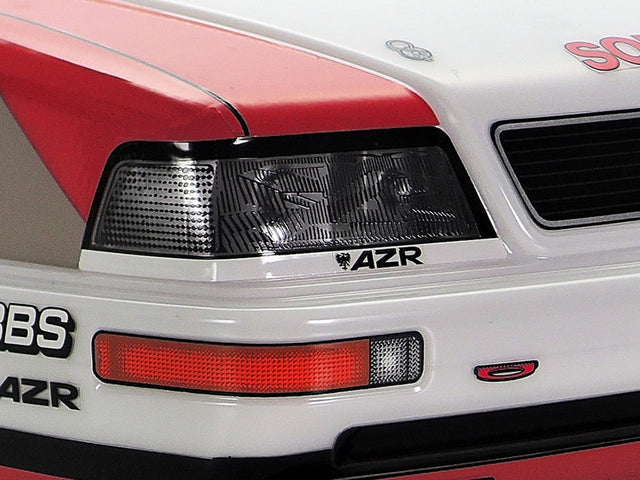

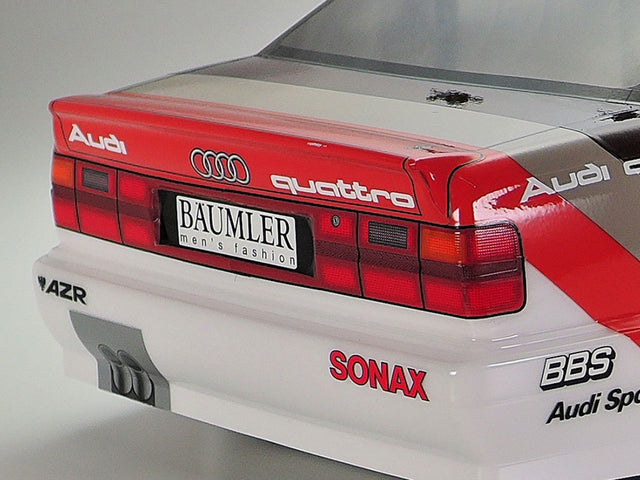

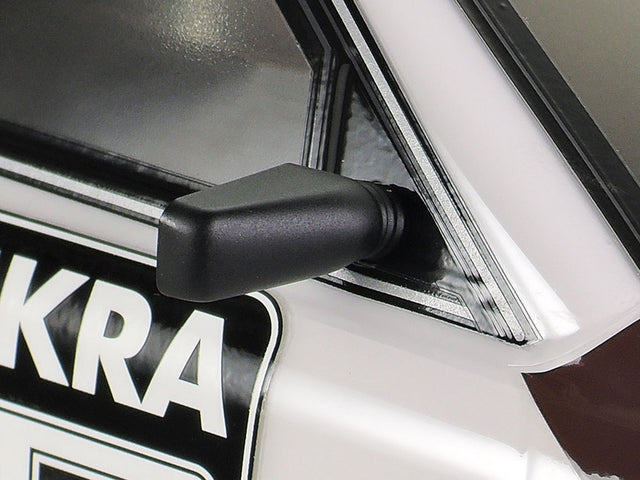

Lightweight and durable polycarbonate body
Two-piece mesh wheels (Item 50548 design) have silver colour rims and gold colour spokes. They are paired with racing slick tires
Stickers are included to recreate the markings for the no.45 car driven by 1991 champion Frank Biela. Window masking stickers included to aid in the painting process
Bathtub-type Frame
Shaft Driven 4WD
Front/Rear 4-Bevel Resin Differentials
3-Piece Steering Tie-Rod
4-Wheel Double Wishbone Suspension
Front/Rear Friction Dampers
Includes *ESC and *Motor.
Includes *ESC and *Motor.
Requires 2-channel radio, steering servo, 7.2-7.4volt battery with compatible charger and Tamiya PS paint to complete.
*Motor Included in this kit:
54358: Torque Tuned Motor
(27T, 255 Torque, 14500rpm)

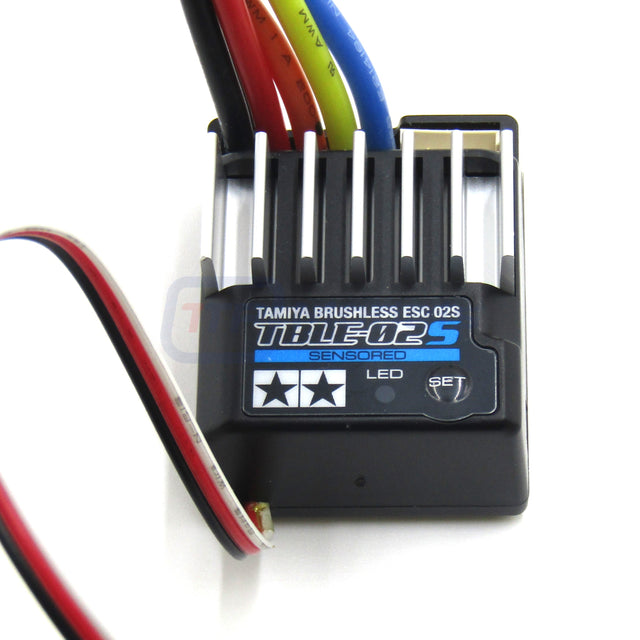

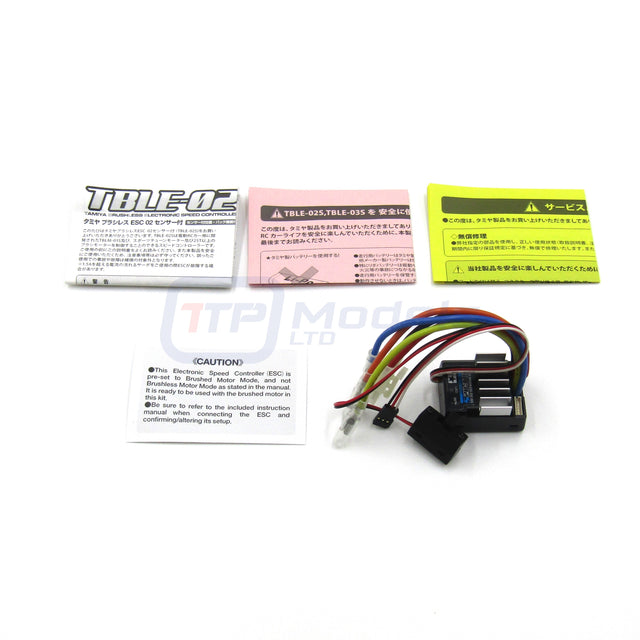

*ESC Specs for this kit are:
TBLE02S Brushed and Brushless Electronic Speed Controller: 45057
Dimensions: 45mm x 34mm x 25mmWeight: 50.8g
Max. Continuous Current:60A
Input Voltage: 6.6-7.2v
Output: Forward 100%, Reverse 50%
Compatible Motors:- TBLM-01S Series of Brushless Motors, Sport-Tuned Motor, Motors over 25T
Receiver Output Voltage: 6V/1.5A
*Please follow set up instructions EXACTLY to avoid problems occurring or damaging the ESC.
Postage:
All of our kits come with FREE 48 hour couriered delivery as standard with the option to upgrade to a 24 hour service at checkout. All orders paid for by 3pm will be posted that same business day.
