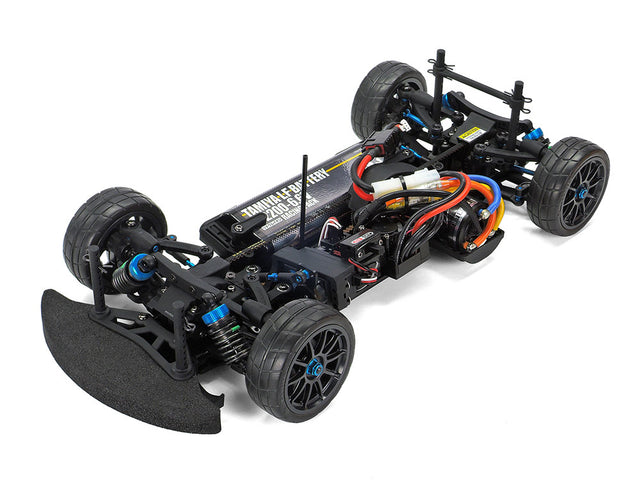

Tamiya TA08/TA-08 Pro Chassis Kit, Kit No. 58693

Click Here for Manual PDF Download

Click Here for Optional TA08/TA-08 Parts Sheet

VIDEO: Click here to see the model in action

2-belt drive 4WD chassis that combines speed and maneuverability.

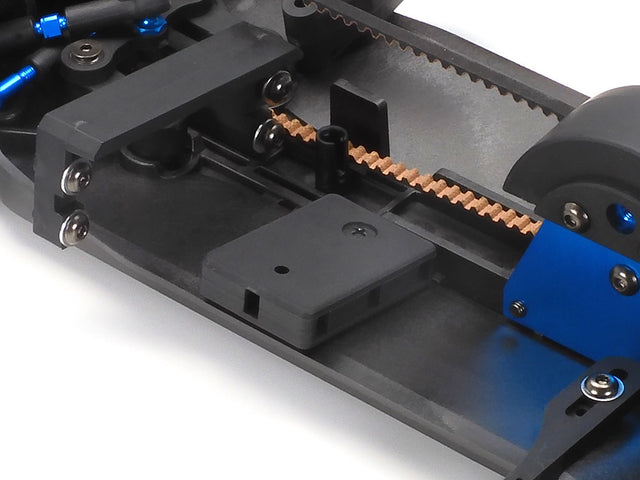

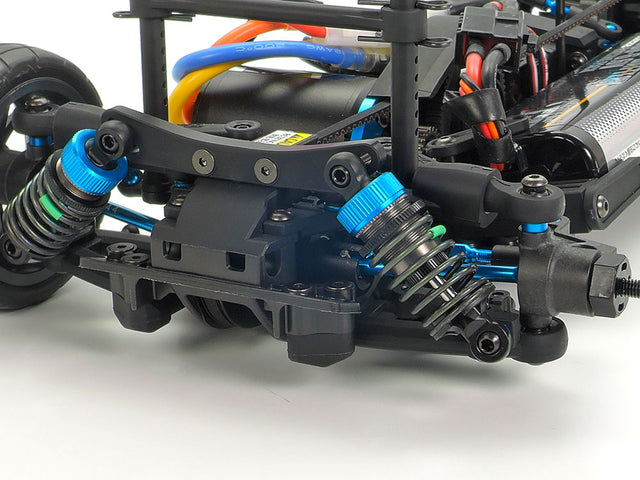

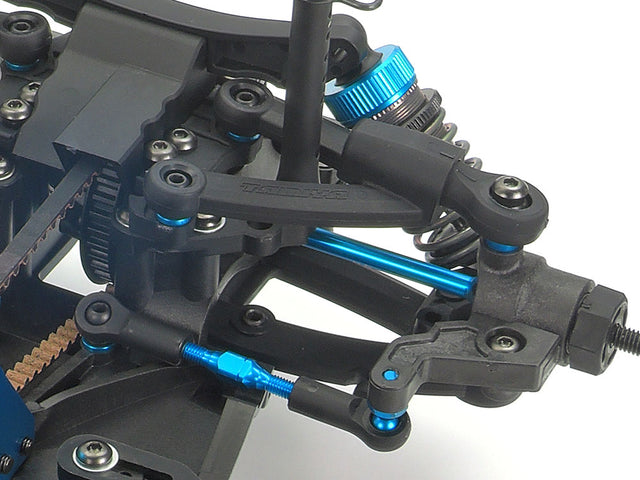

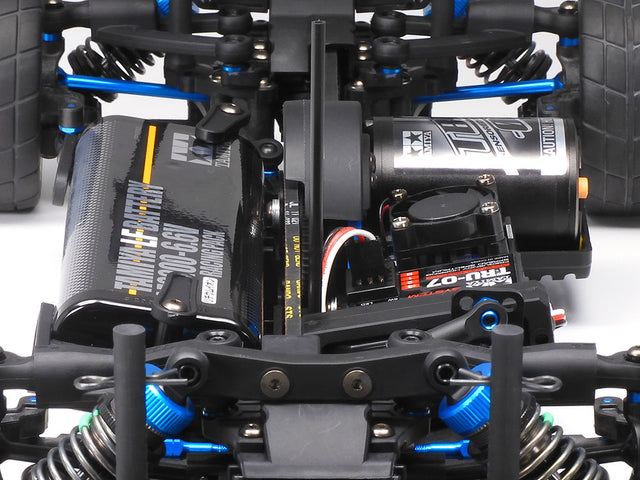

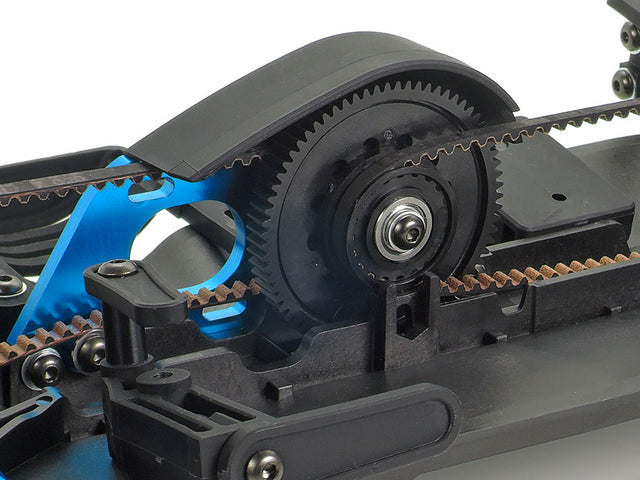

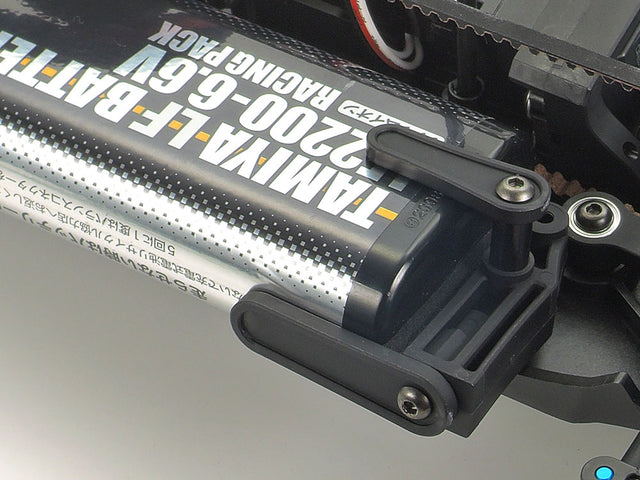

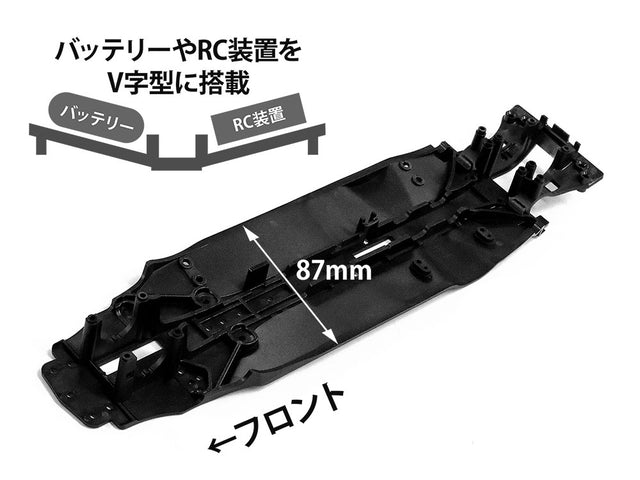

This is a 2-belt drive 4WD chassis kit for touring cars. Adopts an SV (stepped V type) chassis with the running battery on the right side of the chassis and the servo, receiver, and ESC mounted diagonally on the left side. Rigidity and weight distribution have been optimized to reduce road interference when rolling. Another feature is that the spur gear is placed in front of the motor to achieve stable manoeuvrability. The suspension features 4 independent double wishbone wheels with high positioning accuracy and an A-type upper arm that easily applies load to the tires. Camber and caster angles can be adjusted, and SSBB type dampers are standard equipment. The drive system uses full bearings, and both front and rear are equipped with oil-filled gear differentials.

Main equipment parts:

Aluminium motor mount

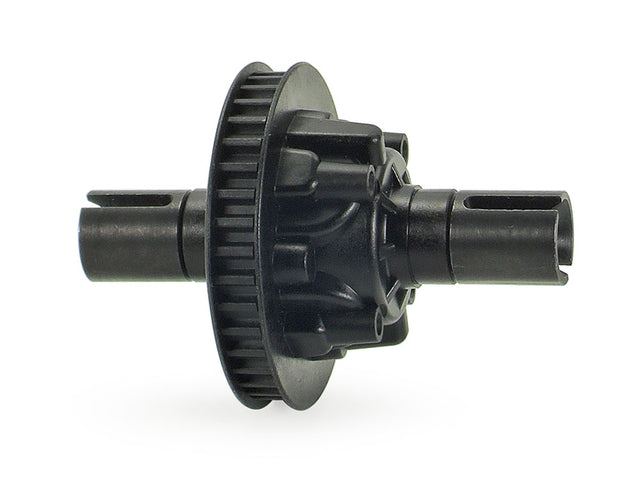

Oil-filled gear differential (front and rear)
TRF420 upright
Universal shaft (front: steel, rear: aluminium)

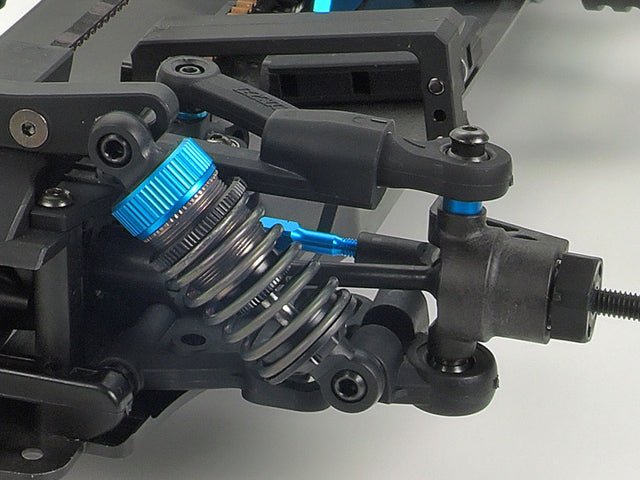

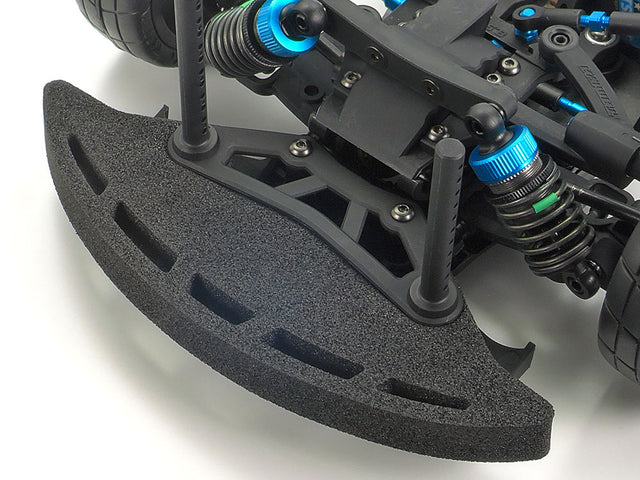

TRF-SSBB type damper
High torque servo saver
Cantilever type servo mount
Aluminium turnbuckle shaft
Full bearing specifications

Basic Specifications:

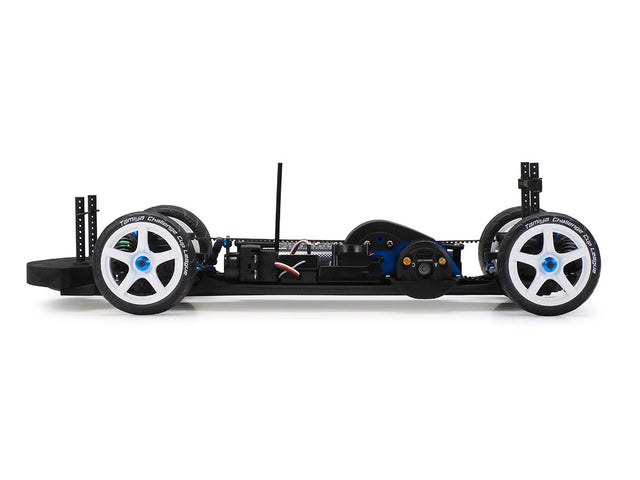

Chassis length: 373mm (excluding body, etc.), overall width: 187mm
wheelbase: 257mm

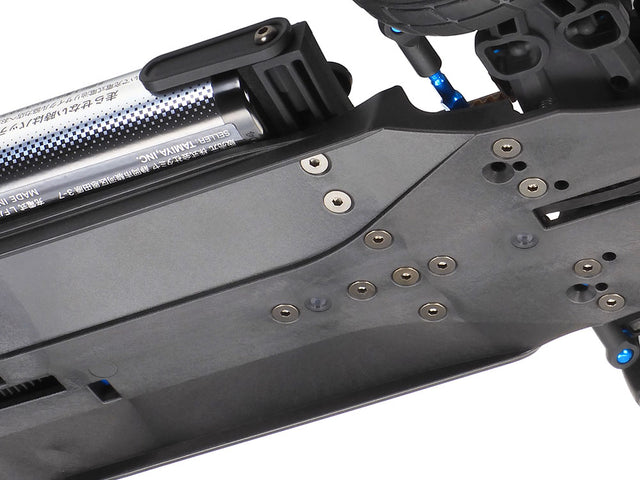

Frame: SV shape carbon fibre blended resin lower deck
Drive system: Horizontal motor, 2 Belt drive 4WD
Differential gear: front and rear oil-filled gear differential
Steering: 3-split tie rod type

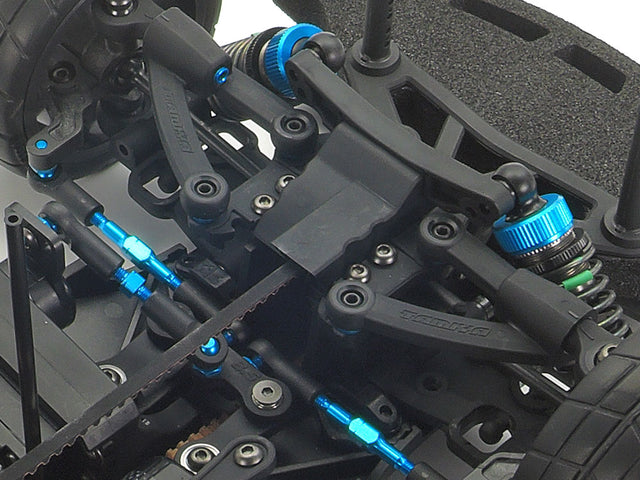

Suspension: 4-wheel double wishbone
Damper: TRF-SSBB type

Required separately:

2-channel radio
Short steering servo
ESC (Electronic Speed Controller)
motor
190mm touring car body set
Tires
7.2-7.4 volt battery pack & compatible charger
