Tamiya 58699 1992 Audi V8 Touring Assembly Kit, (TT02/TT-02), NIB
Sale
£129.00
£169.99
TTP Models
Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.
Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.
Tamiya 1992 Audi V8 Touring Kit (TT-02/TT02 Chassis) Assembly Kit, Kit No. 58699
The 1992 Audi V8 Touring employed an improved 3.6-liter V8 engine, Audi’s famed quattro four-wheel drive, and an imposing body. It overcame significant ballast handicaps and showed off overwhelming strength, particularly in a podium sweep at the 1st race of the 2nd meet at the Nürburgring

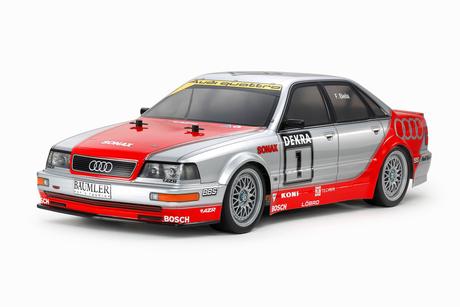

This Tamiya R/C kit recreates the classic 1992 Audi V8 Touring from 1992. We have faithfully recreated this classic racing car with a detailed polycarbonate body and mated it with our entry-level and user-friendly TT-02 chassis.
Adaptable TT-02 Chassis offers balanced shaft driven 4WD
The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.
**For a complete list of option parts/hop-ups available for this chassis please message us a we can assist.
Kit Specifications:
Scale: 1:10 RC Assembly Kit
Wheelbase: 257mm
Length: 463mm, Width: 188mm, Height: 138mm.
Wheelbase: 257mm
Length: 463mm, Width: 188mm, Height: 138mm.

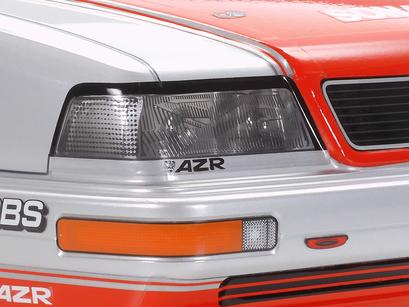

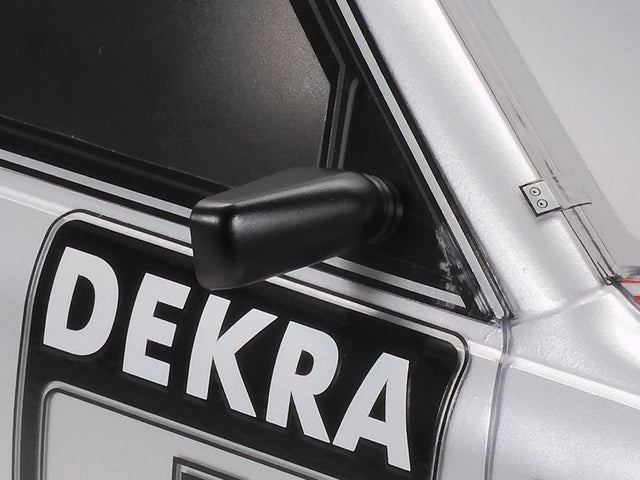

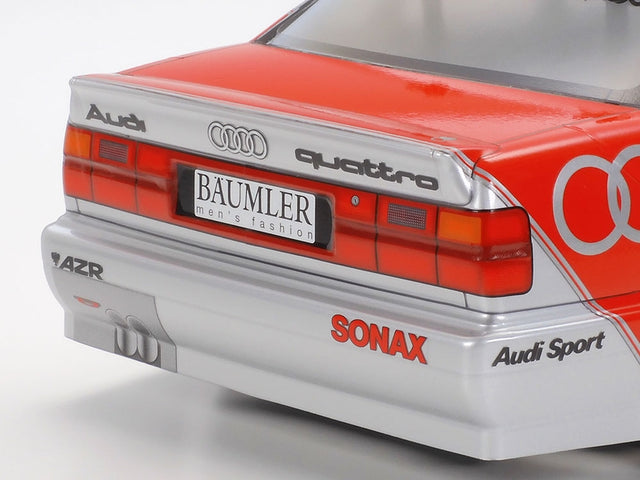

Lightweight and durable polycarbonate body
Stickers are included to recreate the markings for the 1992 Audi V8 Touring. Window masking stickers included to aid in the paint job process.
Two-piece mesh wheels have silver colour rims and spokes. They are paired with racing slick tires.
Bathtub-type Frame
Shaft Driven 4WD
Front/Rear 4-Bevel Resin Differentials
3-Piece Steering Tie-Rod
4-Wheel Double Wishbone Suspension
Front/Rear Friction Dampers
Includes *ESC and *Motor.
Includes *ESC and *Motor.
Requires 2-channel radio, steering servo, 7.2-7.4volt battery with compatible charger and Tamiya PS paint to complete.
*Motor Included in this kit:
54358: Torque Tuned Motor
(27T, 255 Torque, 14500rpm)
*ESC Specs for this kit are:

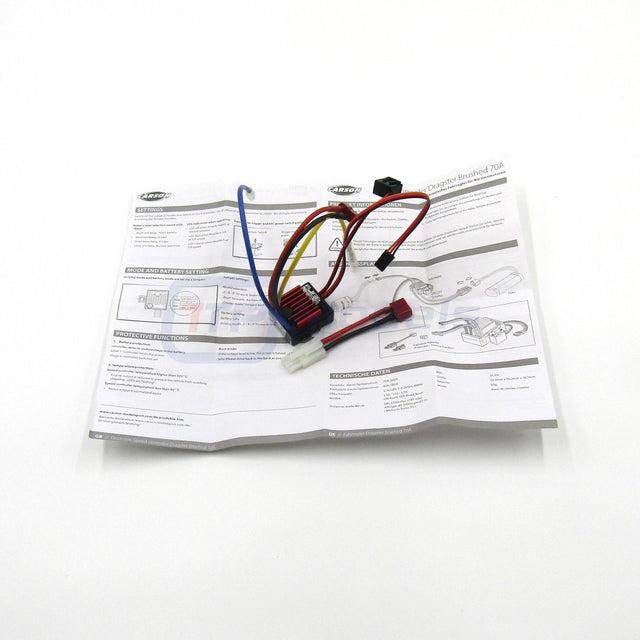

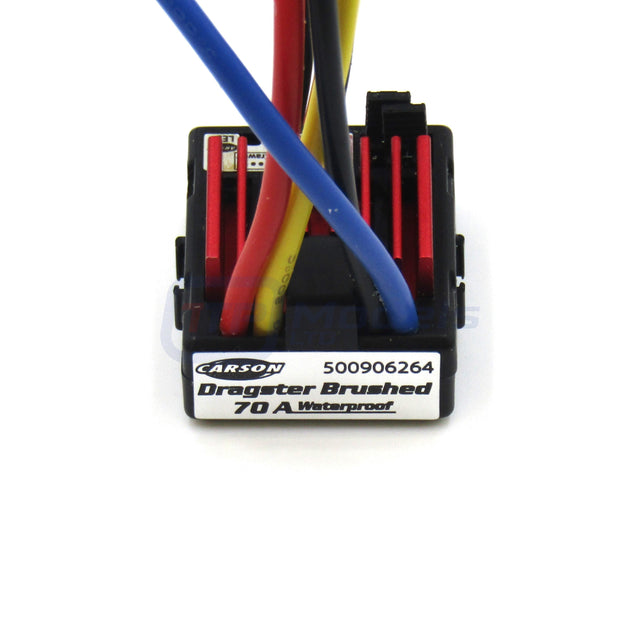

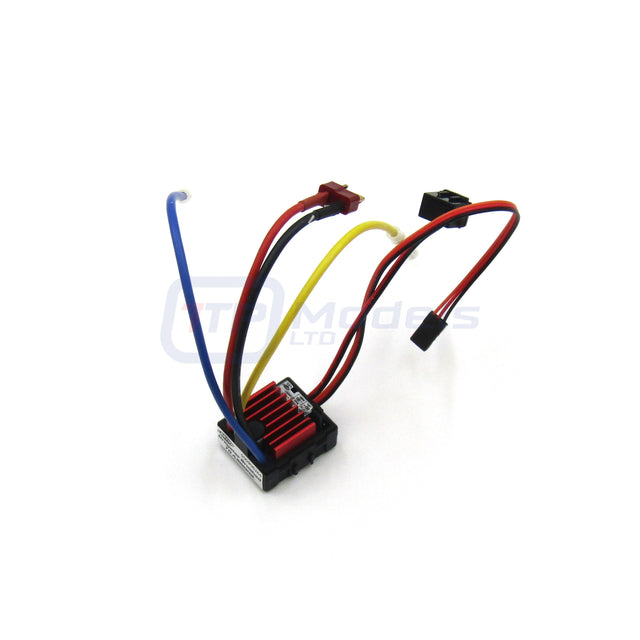

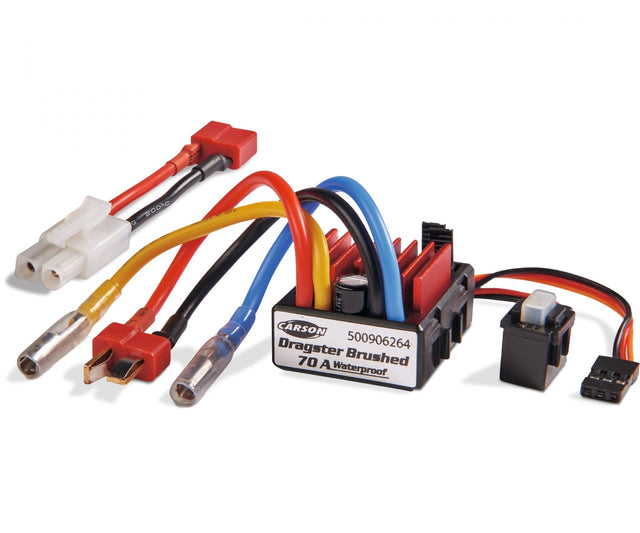

Speed Controller Dragster Brushed 70A: C906264/500906264
Auto throttle calibration suitable for beginnersWaterproof
Dimensions: 34.5mm x 30.2mm x 18.7mm
Weight: 39g
70Amp (Forward) / 40Amp (Reverse)
2-3S Lipo or 6 Cell NiMH: 540, 550 Motor 18T or below 30000rpm @ 7.2v
Low voltage cut-off
High power BEC output for Hi-Torque Servo
Bec Output Voltage: 3A/6v (switching regulation)
Suitable for on-road, off-road, boat & crawler use

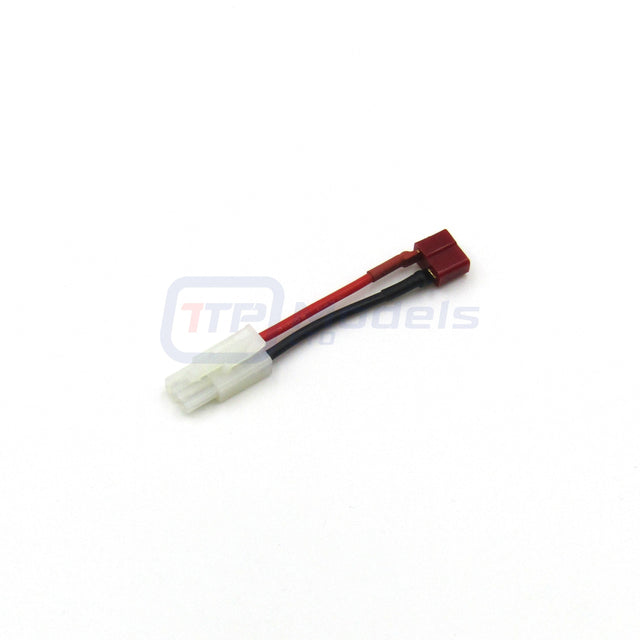

Standard Size Tamiya Connector Fitted As Shown

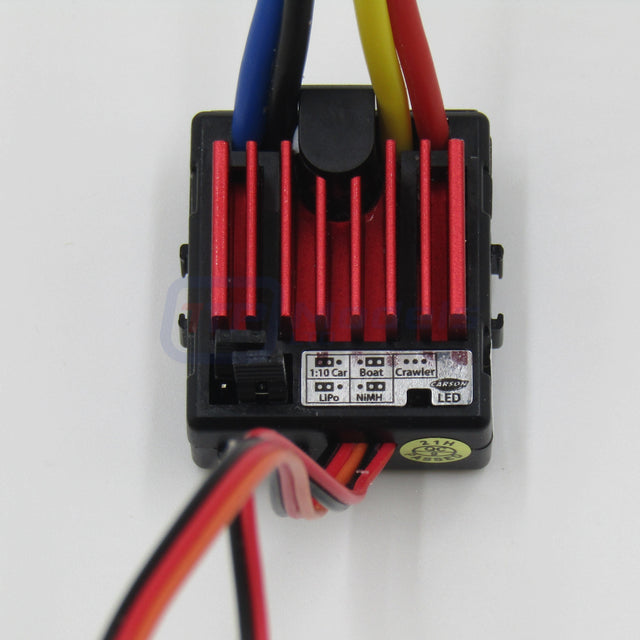

Upon receipt you will need to plug the small jumper plugs into the ESC in the correct positions to suit your battery type (Lipo/NiMH) & mode (F/B/R, boat or F/B) please refer to instructions (Connection Diagram)
