Tamiya 58716 Toyota Gazoo Racing WRT/GR Yaris Rally1 Hybrid, (TT02/TT-02) NIB

Sold out
£129.99
Tax included. Shipping calculated at checkout.
ISBN4950344587162
Notify me when available

TTP Models

Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.

Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

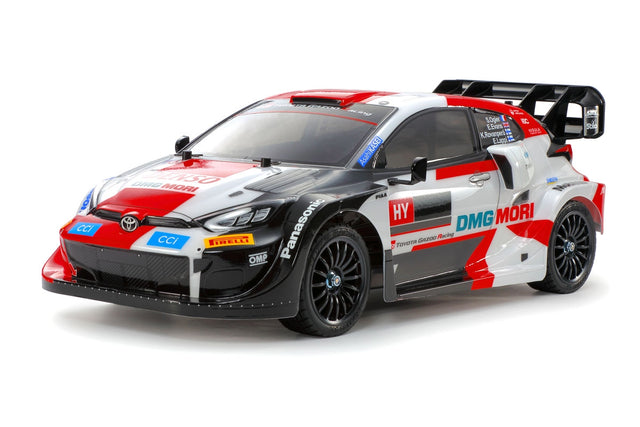

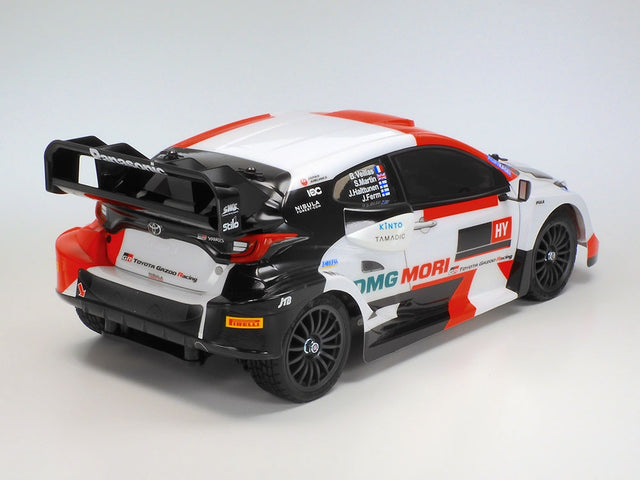

Tamiya Toyota Gazoo Racing WRT/GR Yaris Rally1 Hybrid (TT-02 Chassis)

This is a radio control assembly kit of the Toyota GAZOO Racing WRT/GR Yaris Rally1 Hybrid that began competing in 2022 in compliance with Rally 1 restrictions. The combination of hybrid unit integrated with motor and generator and engine is capable of over 500PS and 500Nm, while the car also features regenerative charging during brake function. A 1.6-liter inline 4-cylinder direct injection turbo engine uses non-fossil fuel. In addition to side skirts and large rear wing, air ducts are equipped right and left at the rear to cool down the hybrid unit. In 2022, it achieved both Manufacturer’s and Driver’s Championships.

Adaptable TT-02 Chassis offers balanced shaft driven 4WD

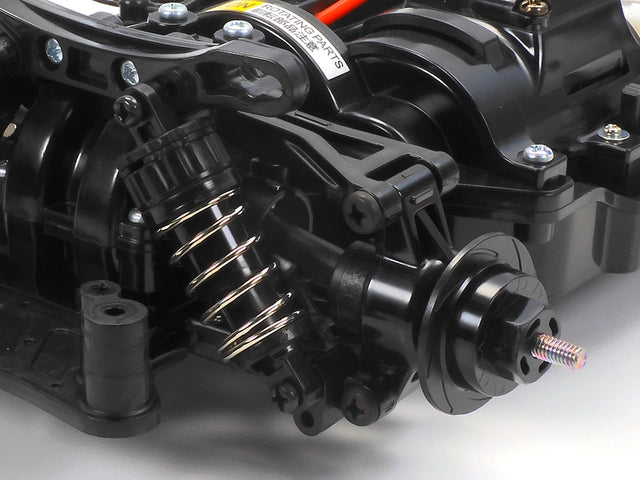

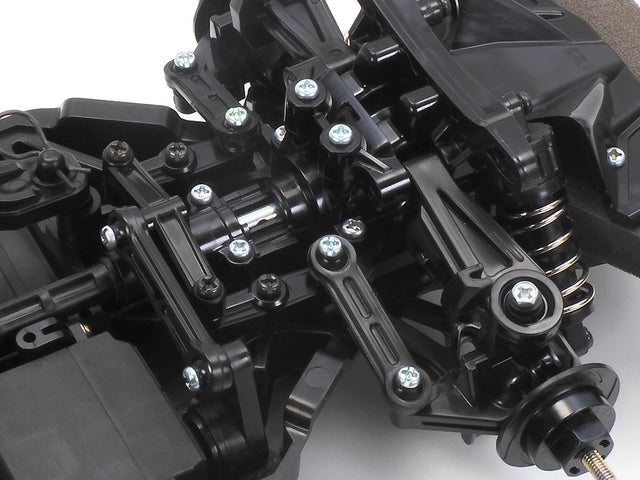

The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

**For a complete list of option parts/hop-ups available for this chassis please message us a we can assist.

Kit Specifications:

Scale: 1:10 RC Assembly Kit
Wheelbase: 257mm

Length: 416mm, Width: 190mm, Height: 146mm.

Lightweight, durable 1.0mm thick polycarbonate body.

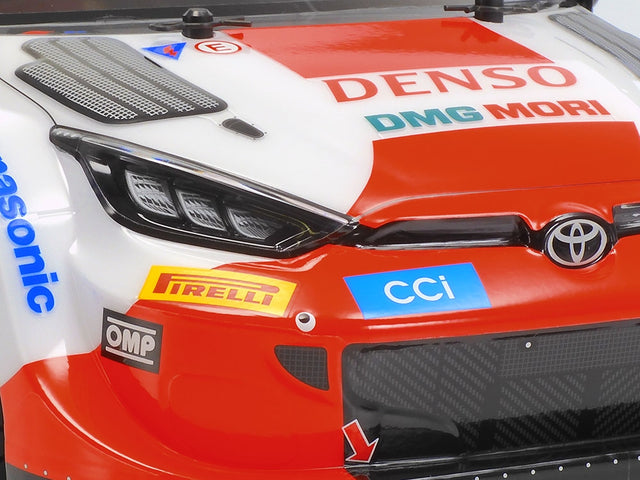

Separate polycarbonate front light cases add three-dimensional look. (Note: front LED lights cannot be attached).

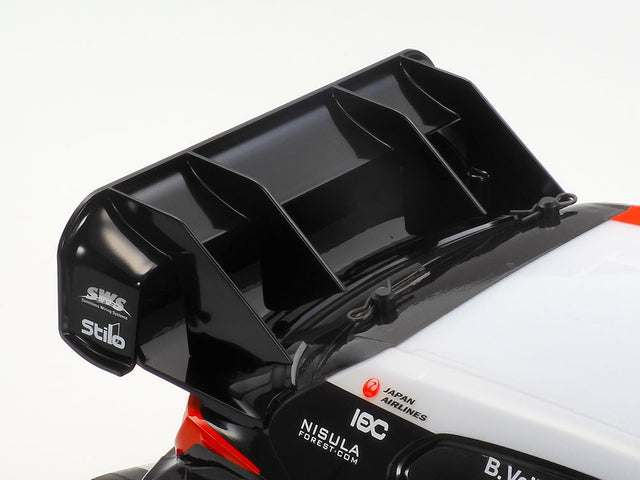

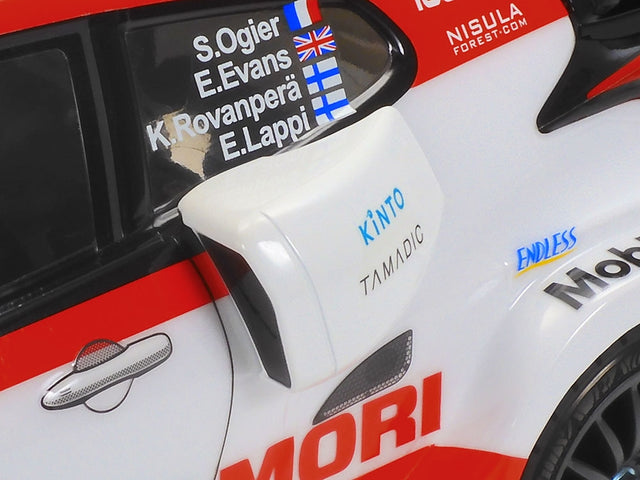

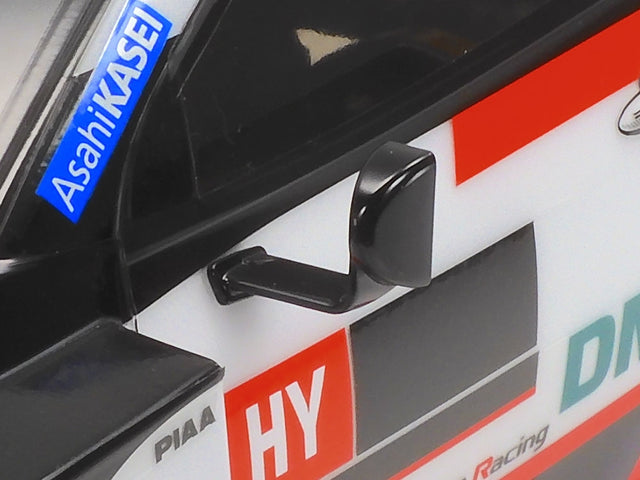

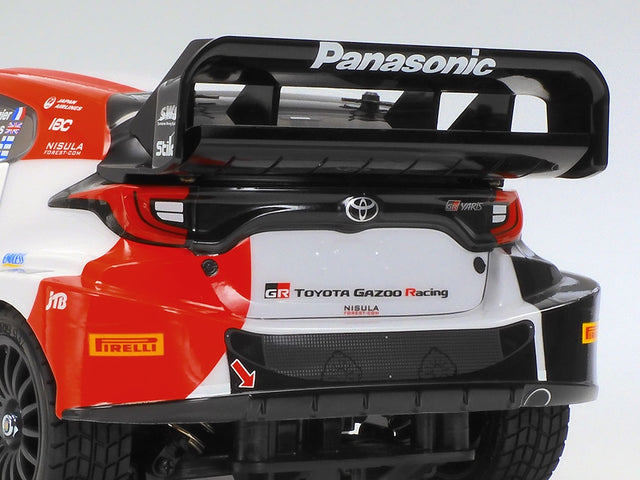

Separate plastic parts moulded in black realistically depict side mirrors, 2-piece large rear wing, side ducts and caps.
The model utilizes the shaft-driven 4WD TT-02 chassis which features superior adaptability and stability.

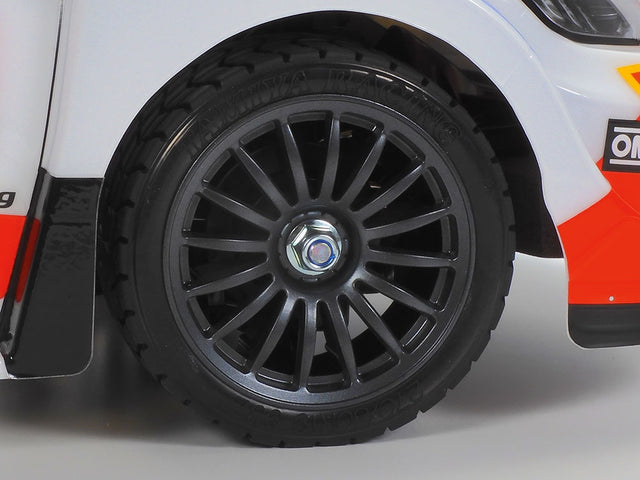

Dark gun metal colour multi-spoke Wheels (Item 50678) are paired with racing radial tires (Item 50419).
Includes Urethane Bumper for crash protection.
Comes with stickers and window masking tape for use in the painting process.
Includes *ESC and *Motor.

Requires 2-channel radio, steering servo, 7.2-7.4volt battery with compatible charger and Tamiya PS paint to complete.

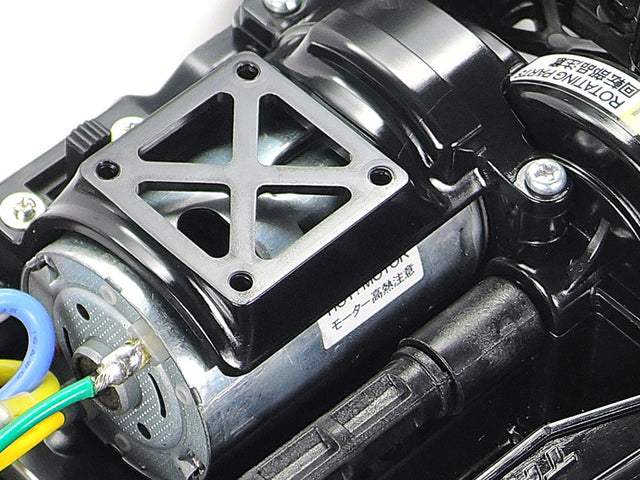

*Motor Included in this kit:

54358: Torque Tuned Motor
(27T, 255 Torque, 14500rpm)

*ESC Specs for this kit are:

Waterproof
60Amp (Forward) / 30Amp (Reverse)
2-3S Lipo or 5-9 Cell NiMH
Low voltage cut-off
Built in BEC
Suitable for on-road, off-road or crawler use
8T Motor Limit With 2S Lipo Or 5-6 Cell NiMH
13T Motor Limit With 3S Lipo or 7-9 Cell NiMH
Standard Size Tamiya Connector Fitted As Shown
Supplied with double sided tape for the ESC and the on/off switch, you can secure the switch to a suitable position on your chassis.
Upon receipt you will need to plug the small jumper plugs into the ESC in the correct positions to suit your battery type (Lipo/NiMH) & use (F/B/R, F/B or F/R) please refer to instructions (bottom right of last picture)
