Tamiya 58718 Toyota Celica GT-Four (ST165) Assembly Kit, (TT02/TT-02), NIB
Sold out
£119.00
£150.00
TTP Models
Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.
Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

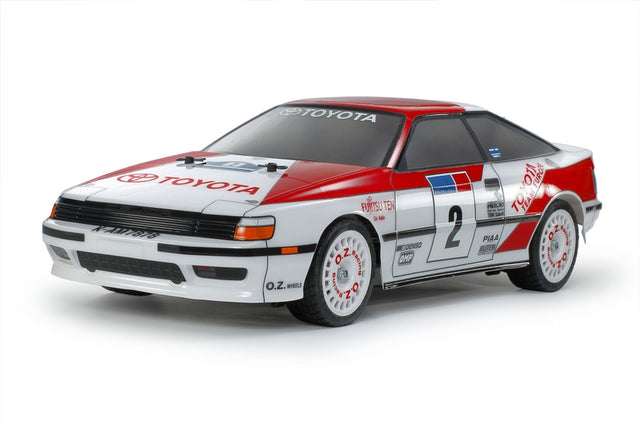

Tamiya Toyota Celica GT-Four (ST165) Assembly Kit (TT-02 Chassis), Kit No. 58718
This R/C model assembly kit recreates the Toyota Celica GT-Four (ST165) with a stunning and highly detailed polycarbonate body. The kit is based on the beginner friendly and highly customizable TT-02 chassis, which is highly capable on tarmac and flat dirt for fun rally action!
Adaptable TT-02 Chassis offers balanced shaft driven 4WD
The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.
**For a complete list of option parts/hop-ups available for this chassis please message us a we can assist.
Kit Specifications:
Scale: 1:10 RC Assembly Kit
Wheelbase: 257mm
Length: 450mm, Width: 185mm, Height: 130mm.
Wheelbase: 257mm
Length: 450mm, Width: 185mm, Height: 130mm.
Lightweight, durable 1.0mm thick polycarbonate body.
The kit is based upon the shaft-driven 4WD TT-02 chassis which gives great adaptability with various kinds of setups.
Rally dish wheels moulded in white are paired with tread pattern racing radial tires.
Comes with livery stickers and window masking tape for use in the painting process.
Includes *ESC and *Motor.
The kit is based upon the shaft-driven 4WD TT-02 chassis which gives great adaptability with various kinds of setups.
Rally dish wheels moulded in white are paired with tread pattern racing radial tires.
Comes with livery stickers and window masking tape for use in the painting process.
Includes *ESC and *Motor.
Requires 2-channel radio, steering servo, 7.2-7.4volt battery with compatible charger and Tamiya PS paint to complete.
*Motor Included in this kit:
54358: Torque Tuned Motor
(27T, 255 Torque, 14500rpm)

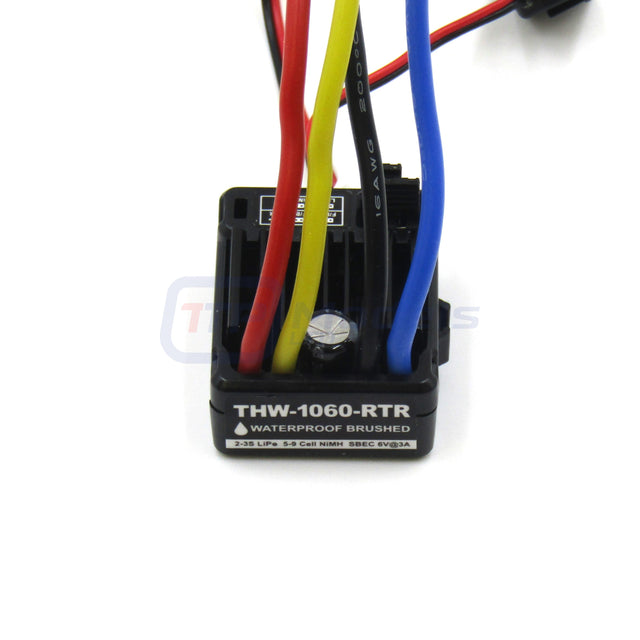

*ESC Specs for this kit are:
Waterproof
60Amp (Forward) / 30Amp (Reverse)
2-3S Lipo or 5-9 Cell NiMH
Low voltage cut-off
Built in BEC
Suitable for on-road, off-road or crawler use
8T Motor Limit With 2S Lipo Or 5-6 Cell NiMH
13T Motor Limit With 3S Lipo or 7-9 Cell NiMH
Standard Size Tamiya Connector Fitted As Shown

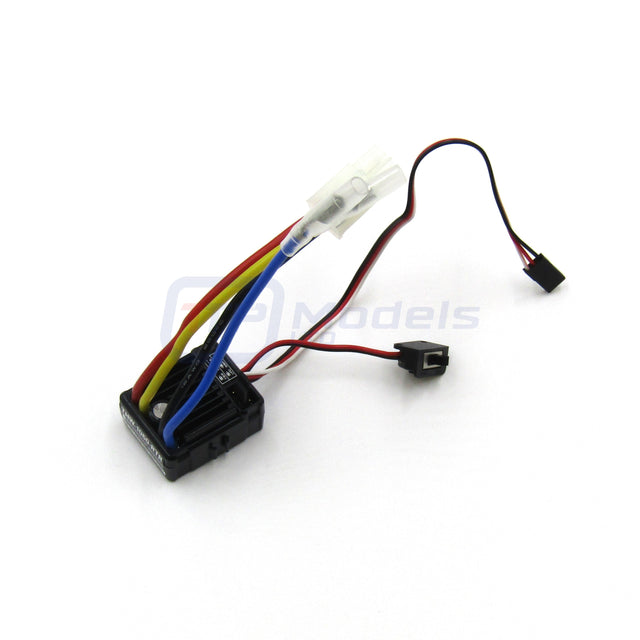

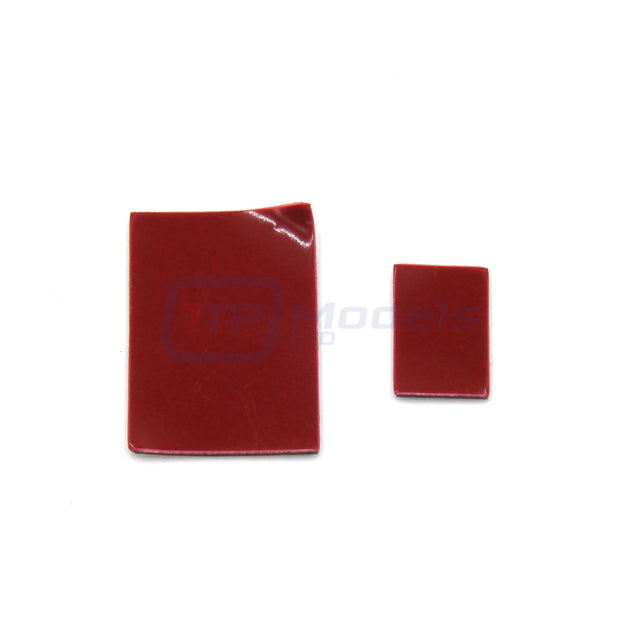

Supplied with double sided tape for the ESC and the on/off switch, you can secure the switch to a suitable position on your chassis.

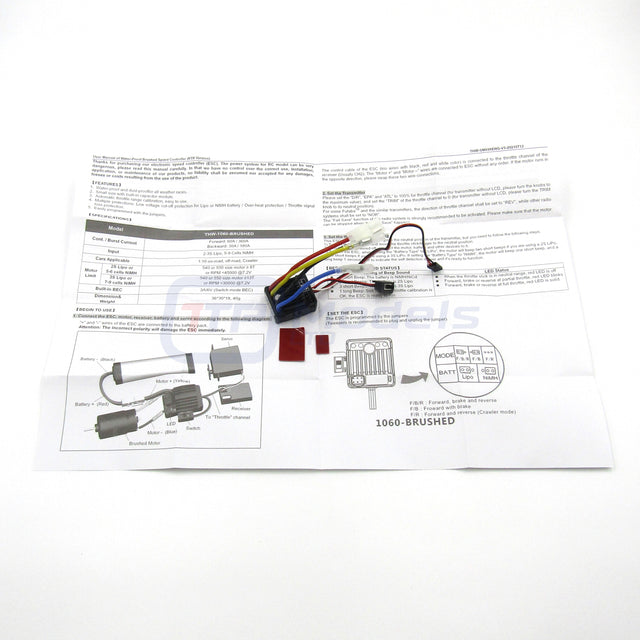

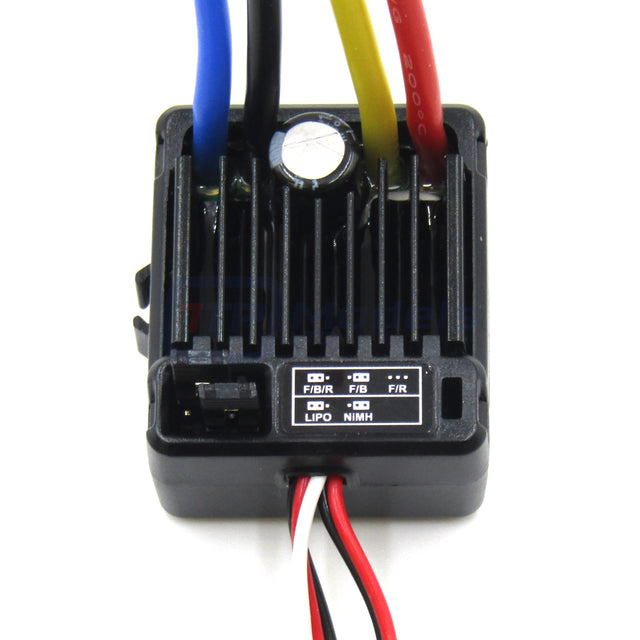

Upon receipt you will need to plug the small jumper plugs into the ESC in the correct positions to suit your battery type (Lipo/NiMH) & use (F/B/R, F/B or F/R) please refer to instructions (bottom right of last picture)
Postage:
All of our kits come with FREE Tracked 24 hour delivery, with the option to upgrade to a Tracked 24 with signature (requiring to be signed for at point of delivery) - Any kit purchased under the *pre-order* title will be subject to delivery times from the UK importer into us, once received we will then post on to the customer - if you have any questions regarding delivery time, please contact us prior to placing your order.
