Tamiya 2002 Mercedes-Benz CLK AMG Racing Version (TT-02 Chassis)

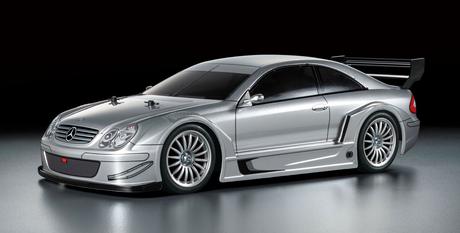

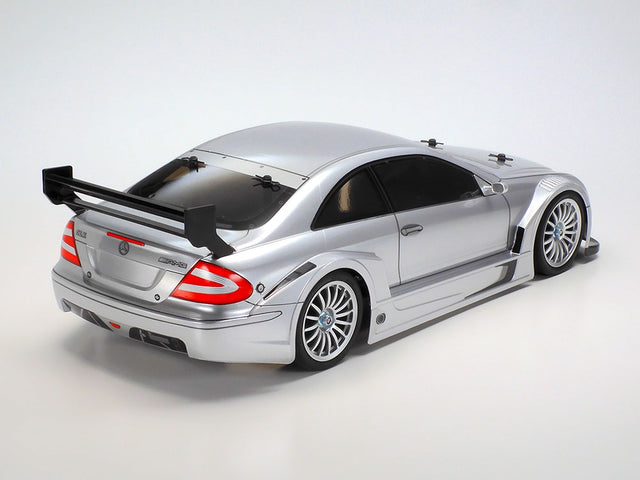

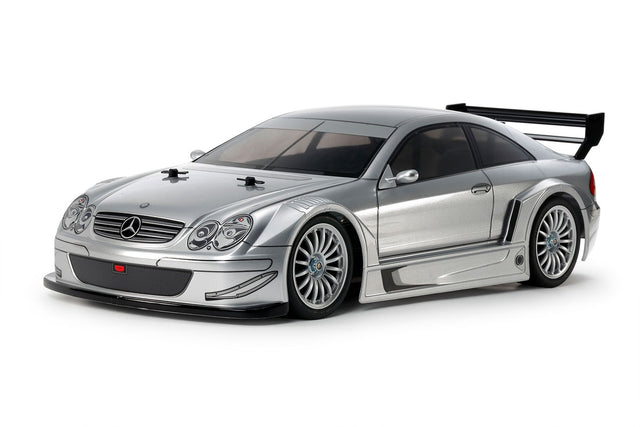

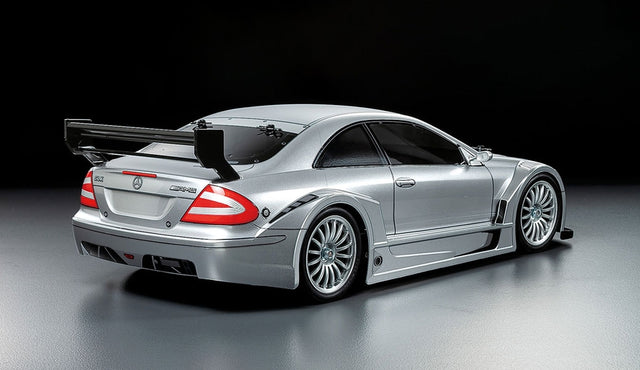

This R/C model assembly kit recreates the 2002 Mercedes-Benz CLK AMG Racing Version and is based on our popular TT-02 chassis. The body used in this kit was last seen on product 58296 CLK-DTM 2002 AMG-Mercedes on the TL-01LA chassis from 2002. It’s now being used to create the iconic race car as it appeared as the homologation version which inherits the race car's powerful form with enlarged over fenders and rear wing, without sponsor logos.

Adaptable TT-02 Chassis offers balanced shaft driven 4WD

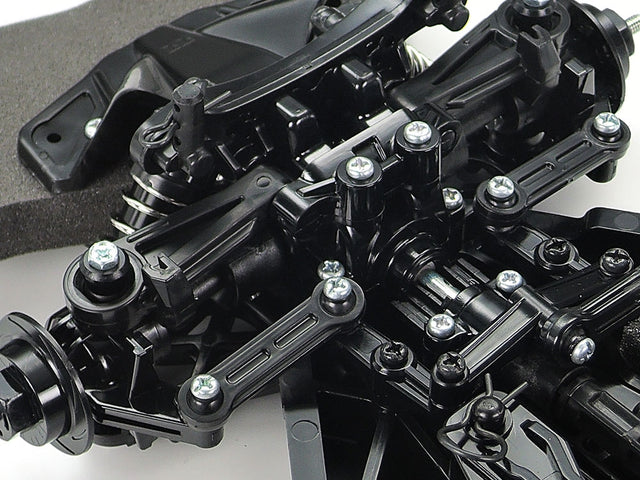

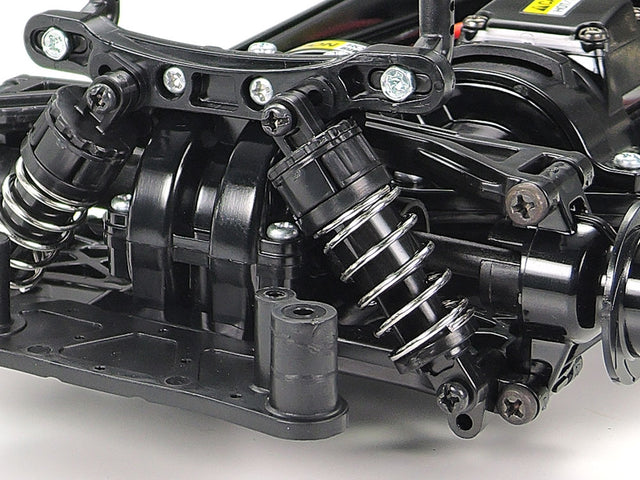

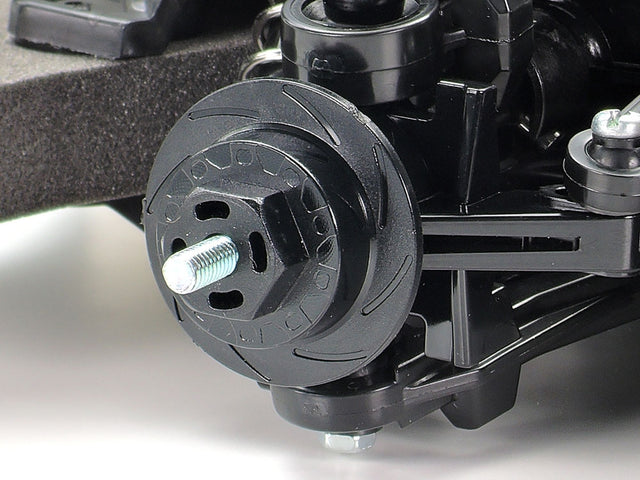

The shaft driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to offer excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports.

**For a complete list of option parts/hop-ups available for this chassis please message us a we can assist.

Kit Specifications:

Scale: 1:10 RC Assembly Kit
Wheelbase: 257mm

Length: 444mm, Width: 185mm, Height: 125mm.

Lightweight, durable 1.0mm thick polycarbonate body.

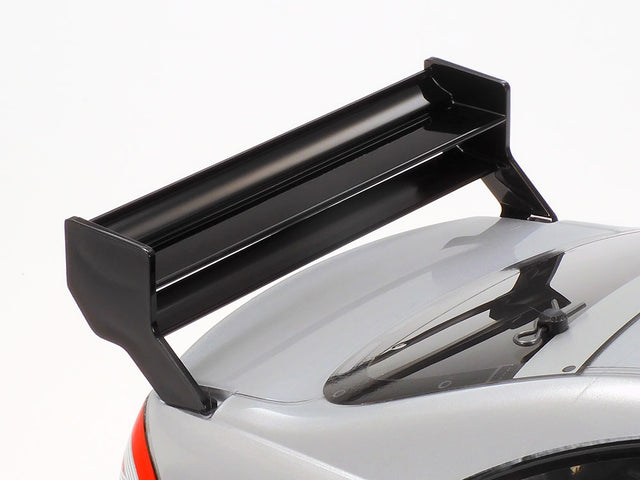

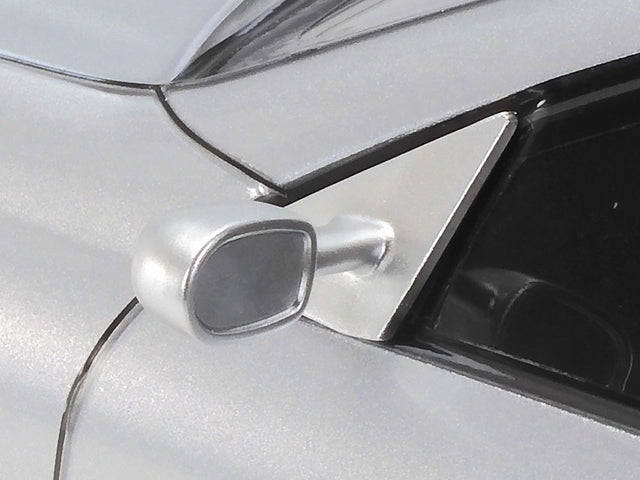

Separate parts realistically depict side mirrors and rear wing.
The model utilizes the shaft-driven 4WD TT-02 chassis which features superior adaptability and stability.

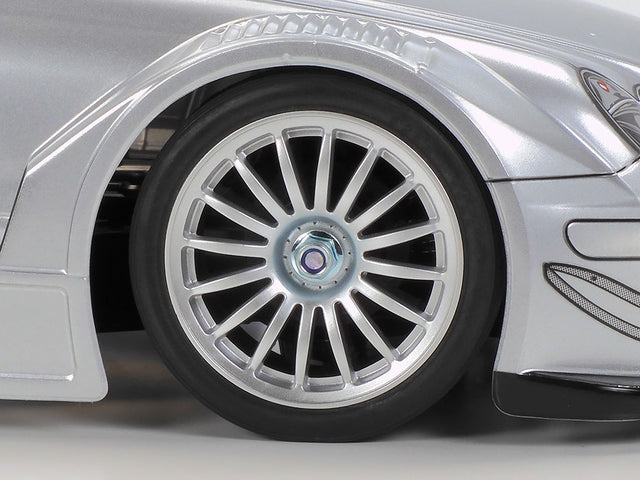

16-spoke silver colour wheels are paired with racing slick tires.
Comes with stickers and window masking tape for use in the paint job.
Includes *ESC and *Motor.

Requires 2-channel radio, steering servo, 7.2-7.4volt battery with compatible charger and Tamiya PS paint to complete.

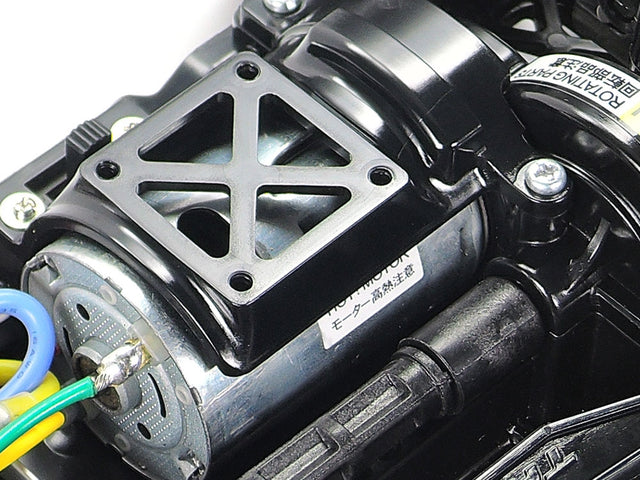

*Motor Included in this kit:

54358: Torque Tuned Motor
(27T, 255 Torque, 14500rpm)

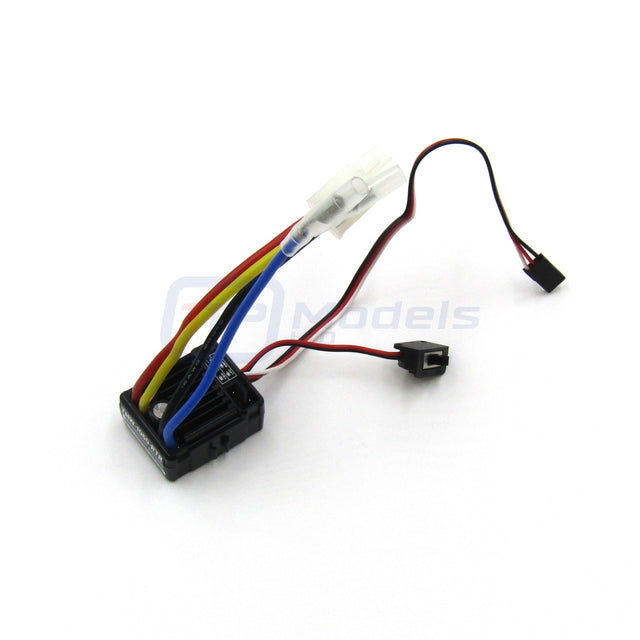

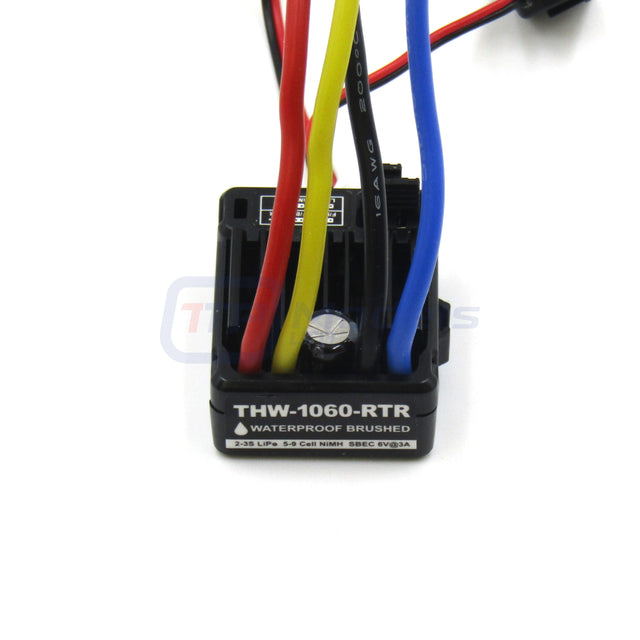

*ESC Specs for this kit are:

60Amp (Forward) / 30Amp (Reverse)
2-3S Lipo or 5-9 Cell NiMH
Low voltage cut-off
Built in BEC
Suitable for on-road, off-road or crawler use
8T Motor Limit With 2S Lipo Or 5-6 Cell NiMH
13T Motor Limit With 3S Lipo or 7-9 Cell NiMH
Standard Size Tamiya Connector Fitted As Shown

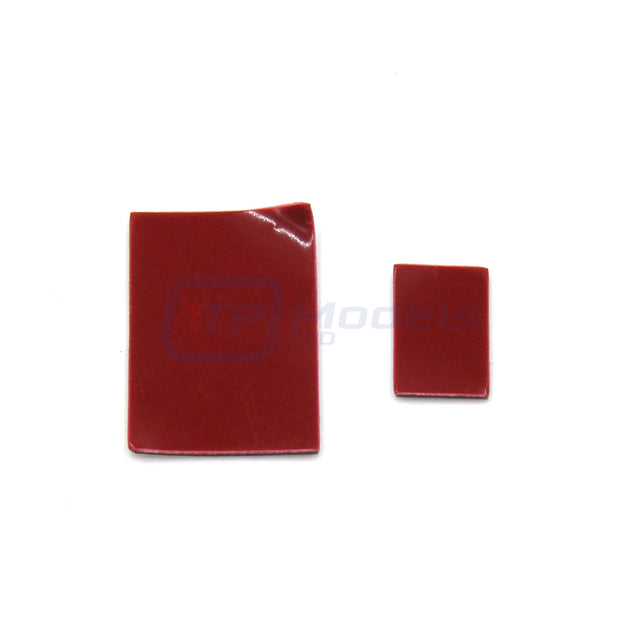

Supplied with double sided tape for the ESC and the on/off switch, you can secure the switch to a suitable position on your chassis.

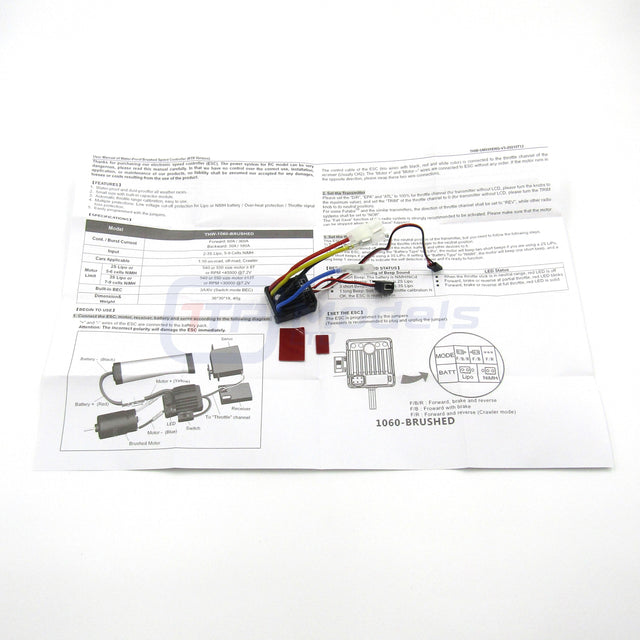

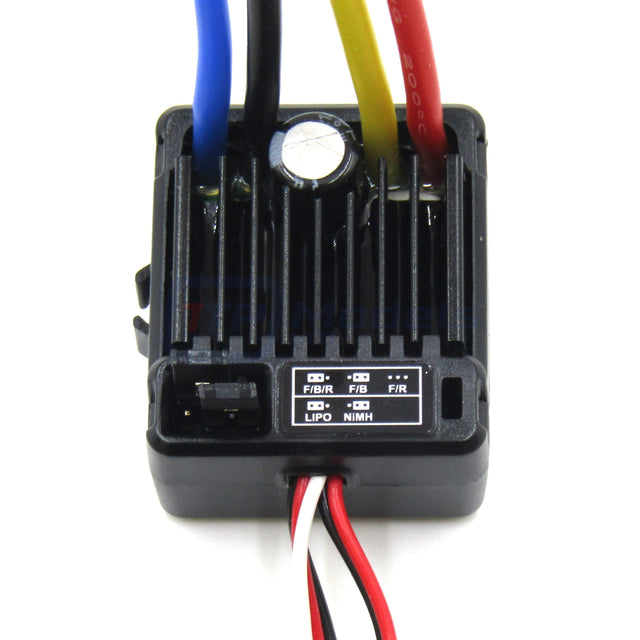

Upon receipt you will need to plug the small jumper plugs into the ESC in the correct positions to suit your battery type (Lipo/NiMH) & use (F/B/R, F/B or F/R) please refer to instructions (bottom right of last picture)
