Tamiya 58738 XM-01 Pro Chassis Kit, NIB **Pre-Order**

TTP Models

Official UK licensed supplier of brand-new genuine vintage and current Tamiya Parts, Spares & Hop-Ups to radio-controlled car enthusiasts around the world. We stock the largest range of genuine Tamiya RC parts on ebay worldwide. Free combined postage*. New items are added every day.

Any currently available 5, 7 or 8 digit part can be specially ordered, please message us with your requirements.

**Stock availability depends on the UK importers (The Hobby Co.) Stock/Supply, Please message us for an estimated delivery time frame for this kit before placing your order.

Tamiya XM-01 Pro Chassis Kit, Kit No. 58738

This shaft-driven 4WD chassis kit (M-chassis size) is another addition to the R/C rally line-up, and has features such as three types of wheelbase, new suspension components and a polycarbonate chassis cover. Add this chassis kit to your M-rally collection!

This is a 1/10 scale R/C chassis assembly kit.

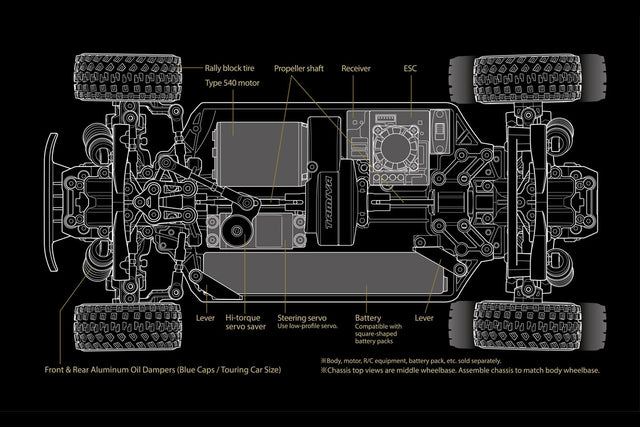

Equipped with front mid-ship, longitudinal motor position.

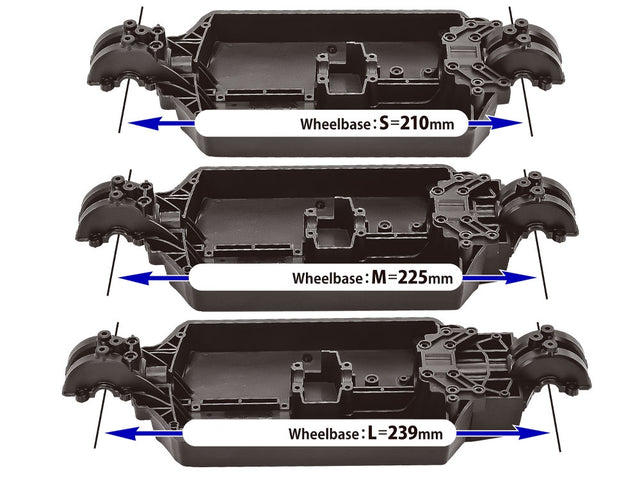

Changing rear section allows a choice from three wheelbases (short: 210mm, middle:225mm, long: 239mm). (ref. Image 3)

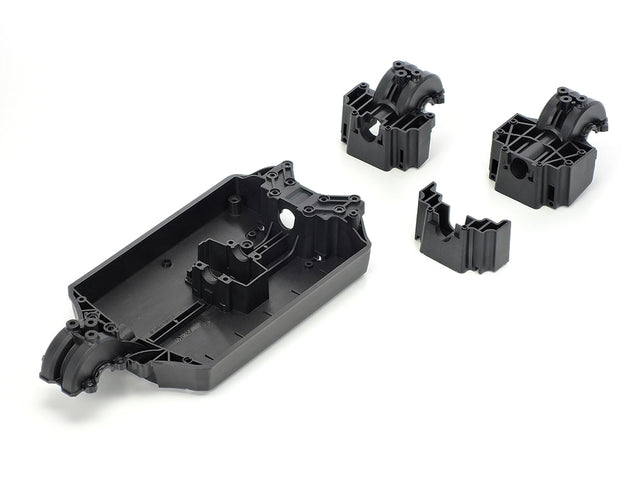

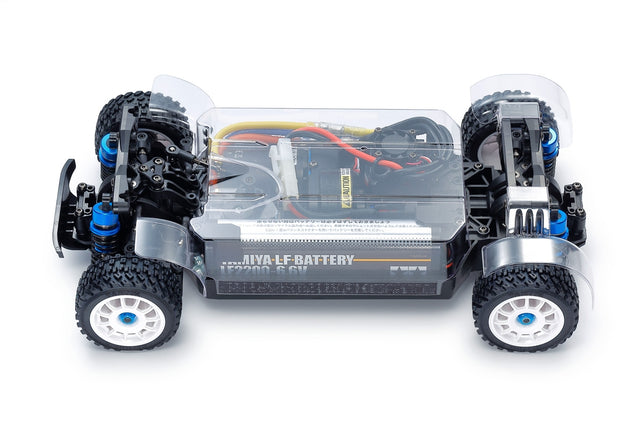

Bathtub frame chassis and polycarbonate chassis cover plus front inside polycarbonate cover and rear section are newly-folded parts. Mud guards helps prevent dirt and dust from getting inside.

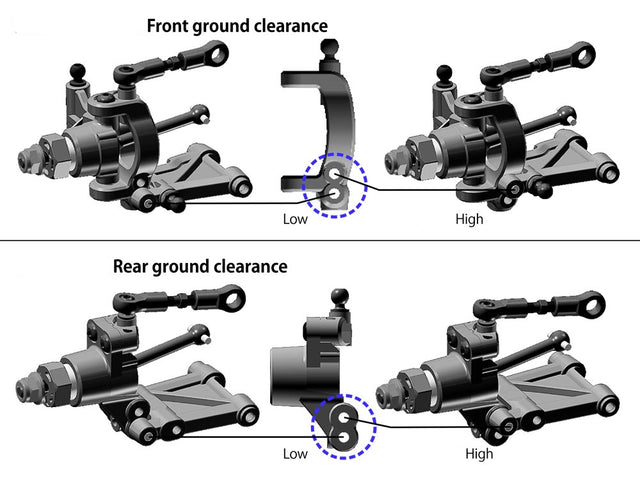

New front C-hubs and rear uprights, plus lower suspension arms allow two types (about 8mm or 13mm) of ground clearances.
Caster angle can be set at 5 degrees by suspension mounts. *For comparison, the XV-02 PRO chassis kit uses caster blocks which feature 6-degree caster angle. (XV-01 chassis: 10-degree caster angle)

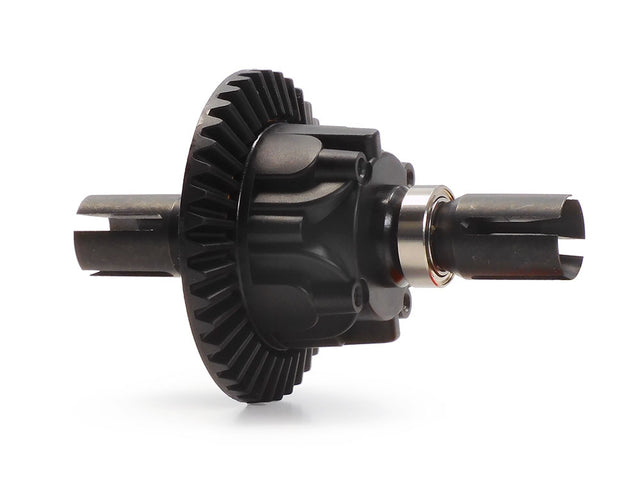

The drivetrain employs oil-filled gear differential for front and rear
Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.
Use 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice versa for drive balance bias to rear.

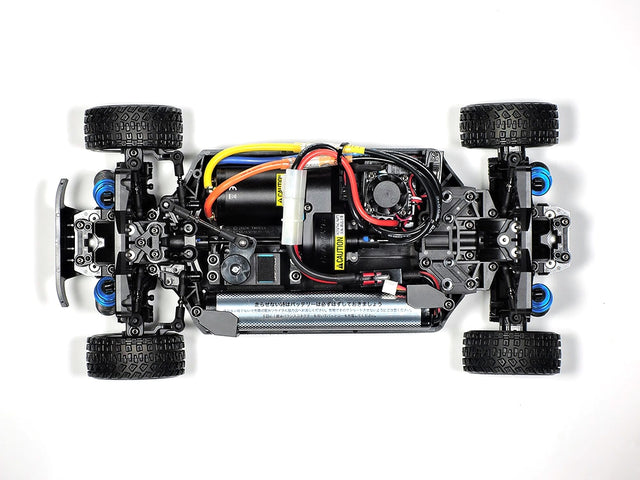

It features a longitudinal upright battery pack position in the centre-left for optimum balance.

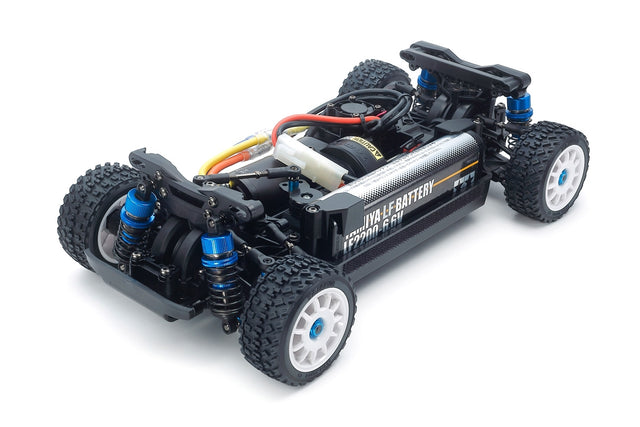

Front bumper with skid angle contributes to reduce surface contact. • Aluminium dampers are employed at the front and rear.
M-Chassis 11-spoke racing wheels (Item 51394) are paired with 60D rally block tires (Item 51427).

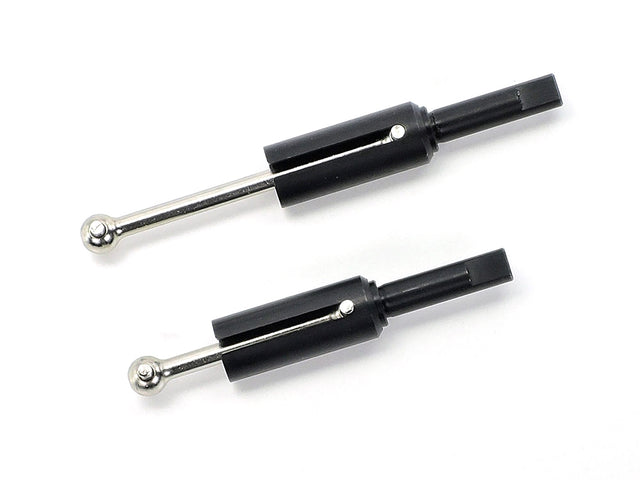

Front and rear universal drive shafts come as standard.
Compatible with centre diff setup and separately sold slipper clutch.
Low-profile servo is recommended. (Standard servo can be used, but it comes into contact with the front inside polycarbonate cover

Please note that this chassis requires separately sold body, battery pack, motor, ESC and R/C equipment.

Postage:

All of our kits come with FREE Tracked 24 hour delivery, with the option to upgrade to a Tracked 24 with signature (requiring to be signed for at point of delivery) - Any kit purchased under the *pre-order* title will be subject to delivery times from the UK importer into us, once received we will then post on to the customer - if you have any questions regarding delivery time, please contact us prior to placing your order.
